| Place of Origin: | Zhangjiagang city |
| Brand Name: | DMK |
| Model Number: | CGF |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export packing |
| Delivery Time: | 60 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 sets per year |
| Name: | Bottle Water Bottling Machine | Capacity: | 1000-24000 Bottles Per Hour(500ml Bottle) |
|---|---|---|---|
| Bottle: | PET Plastic Bottle | Filling Material: | Flowing Liquid |
| Rinsing Head: | 8-50 Heads | Filling Head: | 8-50 Heads |
| Capping Head: | 3-15 Heads | Capping: | Plastic Screw Cap |
| High Light: | water production machine,bottled water equipment |
||

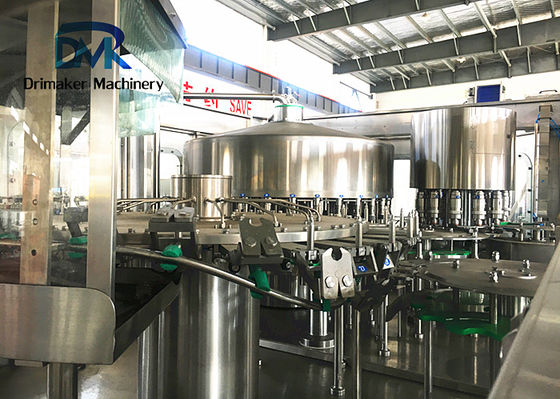

Small Plant Mineral Water Bottling Machine Turnkey Project From A to Z
Water bottling machine feature:
| No | Details description |
| 1 |
Adopt the direct connection technology of air conveyor channel and bottle star-wheel, cancel the bottle screw and conveying chain, whcih makes changing bottle shape easily. |
| 2 | The three-in-one unit to complete the bottle washing, filling, sealing three processes, bottle wear, accurate and stable transmission, convenient bottle replacement. |
| 3 | High speed large flow gravity filling valve, filling speed is fast, the liquid level is accurate without liquid loss. |
| 4 | Bottle transmission adopts neck-hold technology. It is not necessary to adjust the height of the equipment to change the bottle shape. |
| 5 | The specially designed stainless steel bottle punch is strong and durable. It does not touch the threaded part of the bottle mouth to avoid the secondary pollution of the bottle mouth. |
| 6 | The bottom plate of the rotary bottle adopts spiral descending mode, and the height of the conveying chain does not need to be adjusted when changing the bottle shape. |
| 7 |
The parts and components in contact with the liquid are all made of high-quality stainless steel or food-grade engineering plastics. Most of the electrical systems are imported components, which meet the national food hygiene standards. |
Water bottling machine details:
Capacity: 1,000-24,000 bottles per hour
Bottle Type: PET/PP/PE/HDPE Plastic Bottle
Bottle Shape: Round/Square/Rectangular/Irregular
Model: CGF 3 in 1 Monoblock
Place of Origin: Zhangjiagang city, China near Shanghai
Application: Pure water/Mineral water/Drinking water/Non-carbonated water/Beverage/Codiment etc
Bottle Type: 200ml to 2L
Cap Type: Screw cap, Pressing Cap, Sport cap
Full line including: Bottle Sorter, Rinser-Filler-Capper 3 in 1 machine, Lamp Checker, Labeling Machine, Film Shrink Machine/Carton Packing Machine
Water bottling machine parameters:
| Item | CGF8-8-3 | CGF12-12-5 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 |
|
Capacity bottles per hour |
2000-3000 | 3000-4000 | 5000-6000 | 8000-10000 | 10000-12000 |
|
Suitable bottle diameter |
50-90mm 200-2000ml |
||||
|
Rinsing pressure kg/cm2 |
2-3 | ||||
|
Machine weight KG |
1500 | 2500 | 3500 | 4000 | 5000 |
|
Machine size L*W*H (mm) |
1900*1600 *2400 |
2400*1600 *2400 |
2400*1830 *2400 |
3100*2200 *2400 |
3600*2500 *2400 |
Water bottling machine component :
The three-in-one main machine consists of bottle washing machine, filling machine, capping machine, frame, window sealing, main motor and transmission system, bottle transmission, capping machine and electrical control system. The filling institution is mainly composed of the filling bucket, filling valve, guide rail, lifting device, and lifting device for sticking bottles. The turnover mechanism of the bottle washing machine is mainly composed of water distribution plate, bottle washing clip, upper turntable, guide rail, protective cover, water spraying device and water receiving plate. The sealing mechanism is composed of three parts, namely, lid-laying device, lid-falling guide and lid-turning machine. Auxiliary (or optional) equipment includes flushing water reflux tank, bottle inlet air duct and bottle outlet chain. In addition, manual bottle feeding platform (or bottle sorting machine), multi-row differential chain manual bottle arranging table, and automatic capping machine can be configured according to customer requirements.
Thanks!
For more information please contact us!
Contact Person: Mr. Jerry Wu
Tel: 86-18606249106
