Plc Control Liquid Bottling Machine Glass Bottle Filling Machine Electric Drive

small.img.alt small.img.alt small.img.alt small.img.alt

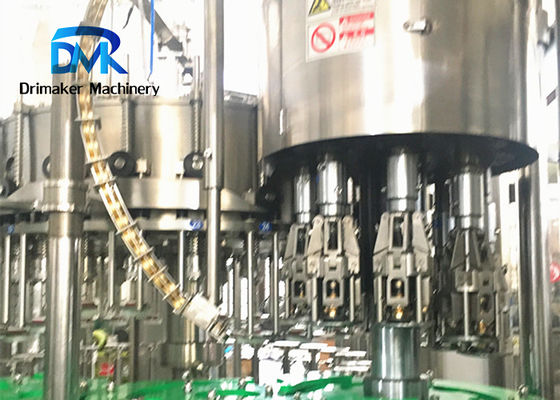

Large Image :  Plc Control Liquid Bottling Machine Glass Bottle Filling Machine Electric Drive

Product Details:

Place of Origin: Zhangjiagang city
Brand Name: DMK
Model Number: DMK

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export packing
Delivery Time: 60 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets per year
Detailed Product Description
Name: Liquid Bottling Machine Capacity: 2000-20000 Bottles Per Hour
Material: Stainless Steel Function: Rinsing-Fruit Filling-Liquid Filling-Hot Sealing
Control: PLC+Touch Screen Drive Type: Electric Drive
Suitable Bottle: PP/PE Voltage: 220/380V Or Customized
High Light:

liquid packaging equipment


liquid filling line


Plc Control Liquid Bottling Machine

Glass Bottle Liquid Bottling Machine Fruit Piece Filling Machine PLC Control


Liquid bottling machine description:


The machine is mainly used for glass bottle beverage production: the machine makes washing, pulp particle filling, liquid filling,capping four functions into one, the whole process of automation, suitable for glass bottle filling fruit juice, mineral water. Machine with temperature control device can also be hot filling. The adjustment of each part is realized by turning handle, which is easy and convenient. The machine adopts advanced programmable frequency converter (PLC) to control the automatic operation of the machine, and the bottle feeding chain adopts frequency conversion speed regulation. Photoelectric detection of the operation of the components, high degree of automation, easy to operate. It is the ideal equipment for beverage manufacturers. Filling method: the new type of micro-pressure filling, filling speed faster and more stable, so compared with the same specification of the machine output is higher, greater benefits.


Liquid bottling machine features:


Pulp filling machine can be used according to the needs of the customer with two bottle washing process, first sterilized water rinse and then sterile water rinse, sterilization more thorough.


No Details

High quality bottle clamping and rotary rinsing are adopted for bottle flushing. The bottle type can be changed only by changing the protection plate related to the diameter of the bottle.

2 The whole machine adopts the viewpoint to detect the operation status of all parts, with the characteristics of no bottle, no filling, no bottle and no cap. Contact with materials are made of 304 stainless steel material, no sanitary dead Angle.
3 The pulp filling part adopts the quantitative filling method to fill the pulp to ensure uniform particles. Pulp filling high precision, filling volume adjustable.
4 In the juice filling part, the material is filled into the bottle filled with granules. The filling juice is not blocked, and the bottle is not sprayed after filling.
5 The four-in-one pulp filling machine's capping device adopts the advanced aluminum capping capping technology, which has overload protection performance, the capping torque is stable and reliable, and the capping is tight and beautiful.


Liquid bottling machine parameters:


No Item                 Brand Origin


Siemens German

Touch screen

Weinview Taiwan


South pump

China mainland

4 PLC Mitsubishi Japan
5 Frenqucy inverter Mitsubishi Japan
6 Conractor Schneider France

Pneumatic component

Airtac Taiwan
8 Bearling NSK Japan

















Plc Control Liquid Bottling Machine  Glass Bottle Filling Machine Electric Drive 0Plc Control Liquid Bottling Machine  Glass Bottle Filling Machine Electric Drive 1



For more information please contact us!
