6000 BPH Pure Water Filling And Sealing Machine Water Bottling Equipment

I'm Online Chat Now

6000 BPH Pure Water Filling And Sealing Machine Water Bottling Equipment


Large Image :  6000 BPH Pure Water Filling And Sealing Machine Water Bottling Equipment

Product Details:

Place of Origin: Zhangjiagang city
Brand Name: DMK
Model Number: CGF18-18-6

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export packing
Delivery Time: 40 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets per year
Detailed Product Description
Name: Bottle Water Bottling Machine Capacity: 5000-6000 Bottles Per Hour(500ml Bottle)
Power: 3.1KW Weight: 3500KG
Size: (L*W*H)2400*1830*2400mm Rinsing Part: Stainless Steel
Filling Temperature: Room Temperature Capping Head: 6 Heads
High Light:

water production machine


water bottle plant machine


6000 BPH Water Bottling Machine

6000 BPH Pure Water Filling And Sealing Machine Water Bottling Equipment


Water bottling machine description:


1. Drinking water filling machine combines washing, filling, capping in one machine, the whole process of automatic operation, mainly suitable for mineral water, pure water and other non-gas drinks bottle, filling, sealing continuous operation.


2. This machine adopts foreign advanced products, most of the electrical system parts all parts in contact with the liquid are made of high-quality stainless steel material master key components adopt CNC machine precision machining


3. The whole machine operation condition of the photoelectric detection components, no bottle no filling, no bottle no cover.


4. High degree of automation, simple operation, is wear-resisting, stability, low failure rate, product quality in the industry, is a new and old drink zui preferred choice of investors.


5. This is a high speed energy saving filling machine developed by our factory, which can reach the output of the previous machine. The normal output of each hour is 5000-6000 bottles per hour.


Water bottling machine features:


The clamp for rinsing bottle is the introduction from Italian technology, with high accuracy for manufacturing, accurately filling level and small loss of fluid, especially suitable for high speed filling. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
All water contact parts material use high quality stainless steel, which ensures the machine long term running situation. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.


Water bottling machine configuration list:


No Item Brand
1 PLC Mitsubishi (Japan)
2 Frequency inveter Mitsubishi (Japan)
3 Touch screen Weinview (Taiwan)
4 Photoelectric components Omron (Japan)
5 Pneumatic components Airtac (Taiwan)
6 Contactor Schneider (Franch)
7 All part contacting water SUS 304/SUS316


Water bottling machine details description:


Bottle rinsing:

Bottle-washing machine with the spring structure: when empty bottles are automatically rotated in a 180°semi-circle on the

track, it washes the bottle insidein a complete and efficient way.

Rinsing water is pumped into every filling nozzle, make sure the water can wash the bottle inside well.

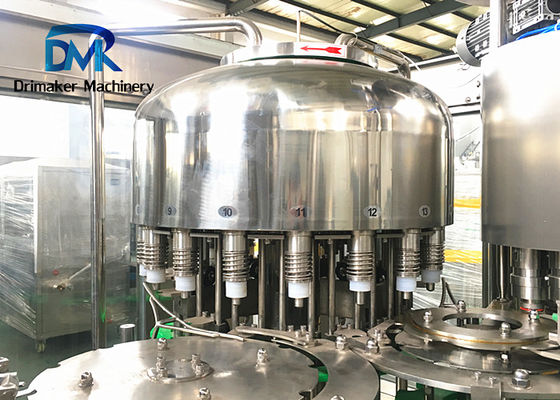

Bottle filling:

This system is constituted with filling tank, main shaft part, bottle holding ascending and falling part, filling valves.

No bottle no filling, save water.

Micro negative pressure filling, more efficient filling way.

All water contact parts are made of high quality stainless steel.

Liquid level stabilizing device, help control water level.



Advanced cap-tightener structure: magnetic force is used in cap-tightener. Torque is adjusted in line with various caps, which is suitable for all kinds of plastic caps. Tooth profile device is used in choosing caps. Checking device is set at the bottom slide. We guarantee no inverse caps, and no bottle no caps.

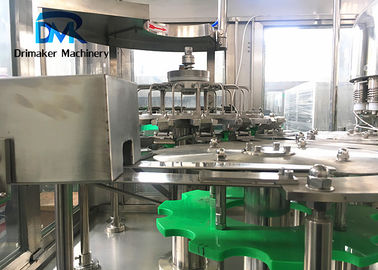

6000 BPH Pure Water Filling And Sealing Machine Water Bottling Equipment 06000 BPH Pure Water Filling And Sealing Machine Water Bottling Equipment 1
