Balance Pressure Can Filling Machine Isobaric Filling Type For Jar

I'm Online Chat Now

Balance Pressure Can Filling Machine Isobaric Filling Type For Jar

Balance Pressure Can Filling Machine Isobaric Filling Type For Jar
Balance Pressure Can Filling Machine Isobaric Filling Type For Jar Balance Pressure Can Filling Machine Isobaric Filling Type For Jar Balance Pressure Can Filling Machine Isobaric Filling Type For Jar

Large Image :  Balance Pressure Can Filling Machine Isobaric Filling Type For Jar

Product Details:

Place of Origin: Zhangjiagang city
Brand Name: DMK
Model Number: DGF18-4

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export packing
Delivery Time: 50 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets per year
Detailed Product Description
Name: Can Filling Machine Capacity: About 7000-8000 Cans Per Hour(330ML Can)
Can Height: 39-160mm Power: 5.5KW
Weight: 4000KG Size: (L*W*H)2500*1750*2200mm
Function: Filling Sealing 2 In 1 Can Diameter: 52.5-99mm
High Light:

beer canning machine

,

rotary filling and sealing machine

,

Balance Pressure Can Filling Machine

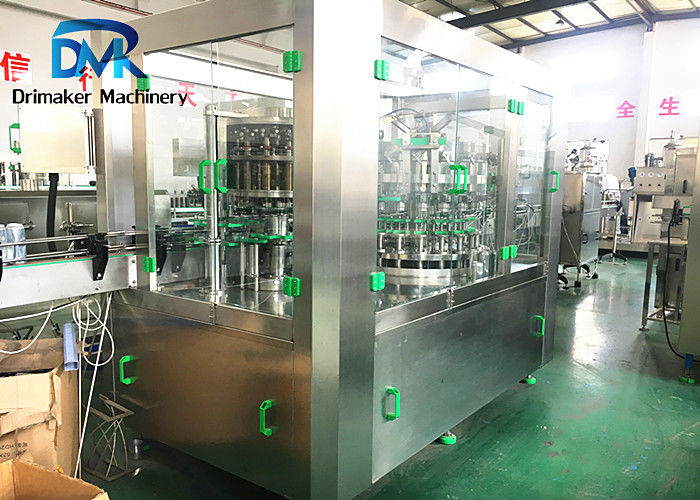

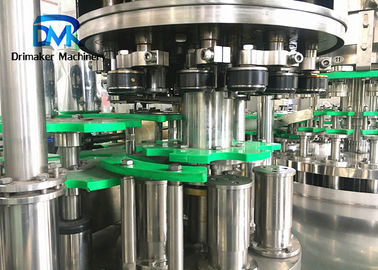

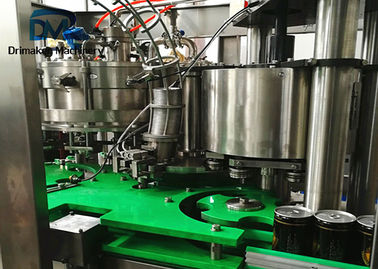

Automatic Balance Pressure Can Filling Machine Isobaric Filling Type For Jar


Can filling machine description:



This kind of filling machine is our company to introduce the foreign advanced filling and sealing technology, after the digestion and absorption, the design and manufacture of the can filling and sealing equipment, mainly used for the tinplate made of three pieces of beverage can washing, filling, sealing. It has stable equipment performance, advanced structure, stable work, safe operation, convenient maintenance, stepless speed regulation, high production efficiency, in line with food hygiene standards.


Can filling machine material:



Filling cylinder material automatic control, the level of liquid level sensor detection, ensure the level stability and reliable filling.

With a complete CIP cleaning function, only equipped with a CIP cleaning machine can achieve a comprehensive cleaning of the cylinder and pipeline.

The main electrical components adopt international famous brands, but also according to customer requirements to specify the brand.



Can filling machine electrical configuration:



No Name Brand Origin
1 PLC Mitsubishi             Japan
2 Frequency converter Mitsubishi Japan
3 Touch screen Weinview Taiwan
4 Contactor Schneider French
5 Photoelectricity Omron Japan
6 Pneumatic Airtac Taiwan
7 Air switch Omron Japan





No Item Detail
1 Model DGF18-4
2 Capacity 7000-8000 cans per hour
3 Filling Position 18 pcs
4 Sealing position 4 position
5 Compressed air pressure 0.4-0.7Mpa
6 Sealing rate ≥99.7%



Can filling machine related equipmemt:

Empty can feeding table:

It is used for workers to put empty cans for filling machine, there will be high table with ladder, worker will stand beisde the table, and arrange empty can into the dropping tunnel, this type feeding table is normally together used with tunnel type can rinser.
And this feeding table is suitable for small-media type production plant. If production is high, customer can consider using empty can destacking machine



Can rinsing tunnel:

It is mainly used for continuous cleaning of two-piece cans and three-piece cans, and it is also suitable for other tinplate cans of similar size and shape. It has the characteristics of good cleaning effect, reasonable structure, balanced work and high production efficiency, and is an ideal product for the production line of canned food and beverage.



Balance Pressure Can Filling Machine Isobaric Filling Type For Jar 0

Balance Pressure Can Filling Machine Isobaric Filling Type For Jar 1
