Payment & Shipping Terms:
|Name:||Can Filling Machine||Capacity:||1500-2000 Cans Per Hour(330ML Can)|
|Function:||Filling Sealing 2 In 1||Can Diameter:||65mm(according To Customer Requirement)|
rotary bottle filling machine,
beer canning machine,
65mm Dia Can Filling Machine

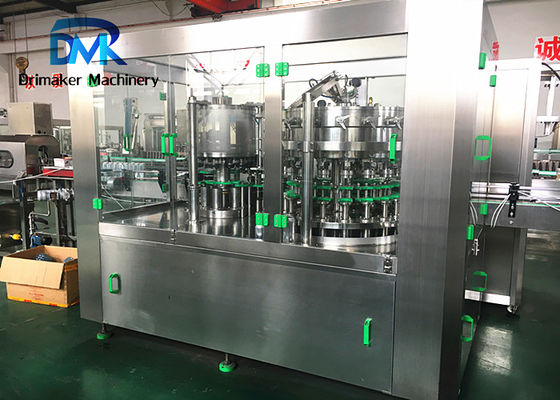

Beer Can Factory Aluminum Can Filling Machine 2000 Pcs Per Hour Capacity
Can filling machine description:
This machine adopts PLC, frequency converter and man-machine interface control system. With frequency conversion speed regulation, can automatic filling, no - filling can and other advanced control technology. With various sensors on the device, accurate production speed and quantity can be displayed on the touch screen. The production speed can be set according to the user's request on the touch screen. The machine has main motor and other electrical protection, such as overload, overvoltage, etc. At the same time, various faults will be displayed automatically on the touch screen to facilitate users to find the cause of the faults. The main electrical components of the machine adopt international famous brands, but also according to customer requirements to develop the brand.
Can filling machine material:
The machine is characterized by fast filling speed, high consistency between the liquid level in the tank and the mouth after filling, smooth operation, good sealing quality, beautiful and generous shape, convenient operation and maintenance, etc.
The machine adopts gear transmission, high efficiency, low noise, long service life, convenient maintenance, full lubrication, the main motor speed of the machine is controlled by frequency converter, the machine adopts stepless frequency conversion speed regulation.
The structure of the bottle guiding system is simple, which can be changed quickly and conveniently according to the tank type.
PLC automatic control, easy to operate, fault online display function. It has the protection function of no opening valve, no cover, no stop and so on.
Can filling machine electrical configuration:
Can filling machine details description:
It adopts isobaric filling, to make sure and control the air pressure in filling tank and can side. When empty can enter into the filling position, the can holder will fix and lift up the empty can, to open the filling valve. CO2 air will be injected into empty can first to make sure air pressure is same with filling tank, then liquid will be filled into the can.
Cap of can will be put on the empty can during the can moving. then sealing wheel will seal the can in one circle automatically, make sure the sealing situation of can. No gas no liquid will be out of can after sealing.
For more information please contact us!
