Spring 20 Liter Jar Washing Machine 3 In 1 Novel Design Corrosion Resistance

I'm Online Chat Now

Spring 20 Liter Jar Washing Machine 3 In 1 Novel Design Corrosion Resistance

small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Spring 20 Liter Jar Washing Machine 3 In 1 Novel Design Corrosion Resistance

Product Details:

Place of Origin: Zhangjiagang city
Brand Name: DMK
Model Number: QGF-450

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 1,500-50,000 per set
Packaging Details: Standard export packing
Delivery Time: 30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets per year
Detailed Product Description
Name: Gallon Water Filling Machine Capacity: 350-450 Bottles Per Hour(5gallon Bottle)
Material: Stainless Steel Power: 12KW
Weight: 750KG Size: (L*W*H)4600*1250*2000mm
Function: Rinsing Filling Capping 3 In 1 Filling Head: 3 Pcs
High Light:

5 gallon water filling machine


5 gallon water bottling machine


Corrosion Resistance Gallon Filling Machine

Spring Water Gallon Filling Machine Washer Filler Capper 3 In 1 Equipment

Gallon filling machine description:

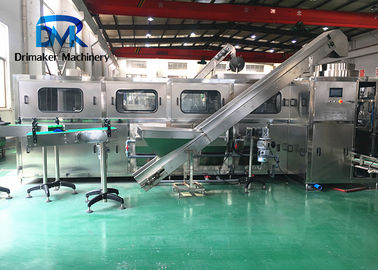

The production line is specially used for the production of 3-5 gallons of bottled drinking water. The bottle washer adopts multi-channel washing liquid injection and disinfectant injection to achieve the purpose of washing and disinfection. The sealing machine can seal the bottle automatically, and the mouth of the conveying bottle cap is equipped with a shower device to ensure the sterile cleaning of the bottle cap. The series of production lines can be automatic washing, disinfection, filling, pressing, counting and output. With complete functions, novel design, high degree of automation, is a collection of machine, electricity, gas in one of the new drinking water barrel equipment.
Gallon water production steps:


Automatic lid extractor - automatic barrel outside brusher - automatic barrel loader - barrel inside washing - filling - automatic cap feeder - cap pressing - automatic conveyor belt outgoing - lamp inspection - heat shrinkable - bagging - finished product.


1. Suitable bottle type: it is specially used for the production of drinking water in 3-gallon and 5-gallon barrels.


2. Complete functions: the whole machine integrates the functions of washing, filling and sealing.


3. Application: it is an ideal equipment for the production of mineral water, distilled water and purified water


4. The machine adopts stainless steel, corrosion resistance and easy cleaning.

Gallon filling machine parameters:


Item                 QGF-120 QGF-300 QGF-450 QGF-600 QGF-900

bottles per hour

100-120 250-300 350-450 550-600 800-1000

Machine weight

300 450 500 750 900
Filling head 1 2 3 4 6
Barrel type 3 & 5 gallon barrel
Barrel dimension φ270×490 (can be customiazed)
Material High quality stainless steel
Compressed air pressure 0.4~0.6Mp
Barrel volume 18.9L


Gallon filling machine details description:


Automatic bottle feeding system:

When the barrel is transported to the automatic bucket loading device through the conveyor chain, the photoelectric sensor detects that there are barrelsl on the chain, and then the cylinder on the bottle rack will start, the barrel will be transferred to the bucket plate on the top bucket rack, the electrical control will start the cylinder on the bucket rack, the barrel will be sent to the bucket washing machine on the conveyor chain. After strict analysis and calculation of the mechanism, the barrel mouth after automatic loading is aligned with the fixed cup of the barrel washing machine.

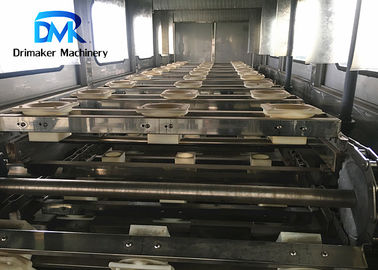

Bottle rinsing:

The machine is divided into 12 rinses: two rinses are alkali rinses, two rinses are disinfectant rinses, two rinses are reflux rinses, two rinses are finished water rinses, and one drip-drying station is set up after rinsing the detergent, disinfectant, reflux water and finished water respectively, and the time is 20S.

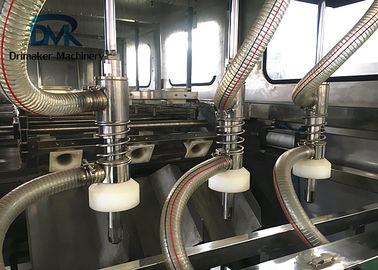

Bottle filling:

It adopts grivity filling (filling valve type is optional accoridng to customer barrel and requirements), it can finish hig speed filling, and can control the backflow water well.

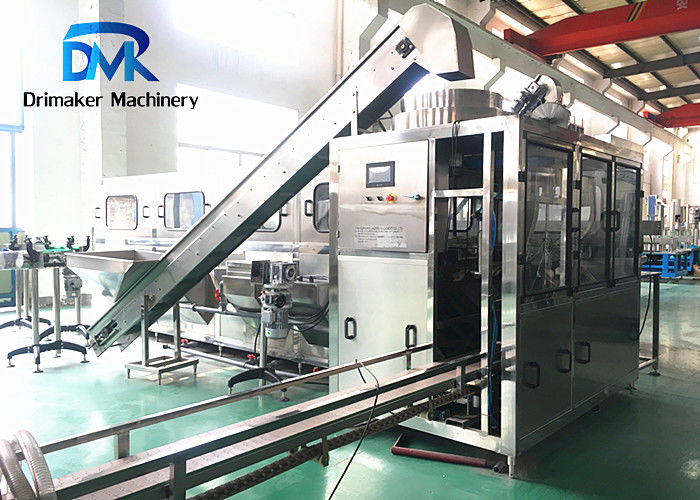

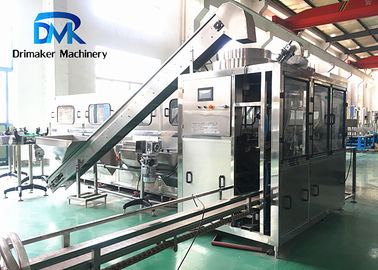

This machine adopts 1 pcs roller capping,automatic cap loading susye, helps bottle get the cap automatically, then roller capping system will help press the cap step by step during the bottle moving, which can save production time. and whole capping part is

fully covered in the machine, so the process is very clean.


Spring 20 Liter Jar Washing Machine 3 In 1  Novel Design Corrosion Resistance 0Spring 20 Liter Jar Washing Machine 3 In 1  Novel Design Corrosion Resistance 1



For more information please contact us!
