Stainless Steel Milk Glass Bottle Packing Machine 3000-4000 Bottles Per Hour

I'm Online Chat Now

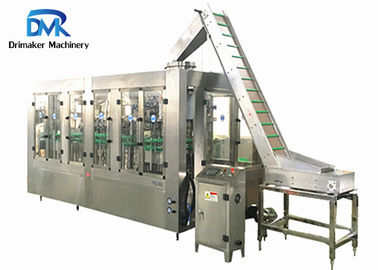

Stainless Steel Milk Glass Bottle Packing Machine 3000-4000 Bottles Per Hour

Stainless Steel Milk Glass Bottle Packing Machine 3000-4000 Bottles Per Hour
Stainless Steel Milk Glass Bottle Packing Machine 3000-4000 Bottles Per Hour Stainless Steel Milk Glass Bottle Packing Machine 3000-4000 Bottles Per Hour Stainless Steel Milk Glass Bottle Packing Machine 3000-4000 Bottles Per Hour

Large Image :  Stainless Steel Milk Glass Bottle Packing Machine 3000-4000 Bottles Per Hour

Product Details:

Place of Origin: Zhangjiagang city
Brand Name: DMK
Model Number: BDCGF18-18-6

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 20,000-100,000 per set
Packaging Details: Standard export packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets per year
Detailed Product Description
Name: Glass Bottle Beer Filling Machine Capacity: 3000-4000 Bottles Per Hour(500ml Bottle)
Material: Stainless Steel Power: 3.1KW
Weight: 3500KG Size: (L*W*H)2400*1850*2400mm
Control: PLC+Touch Screen Rinsing Head: 18 Heads
Filling Head: 18 Heads Capping Head: 6 Heads
High Light:

glass bottling machine

,

wine production line

,

4000Bottles/ H Glass Bottle Filling Machine

Beer Production Plant Glass Bottle Filling Machine Stainless Steel Structure



Glass bottle filling machine description:



This machine is the introduction of foreign advanced technology design and manufacture of washing filling capping 3 in 1 monoblock machine. The clamp for rinsing bottle is the introduction from Italian technology, with high accuracy for manufacturing, accurately filling level and small loss of fluid, especially suitable for high speed filling; Screw cap system is introduction of France technology manufacturing, using magnetic screw cap, adjustable torque, a synchronous take cover - screw cover device, cover loss is small.



Glass bottle filling machine features:



1. The clamp for rinsing bottle is the introduction from Italian technology, with high accuracy for manufacturing, accurately filling level and small loss of fluid, especially suitable for high speed filling;

2. Drive system is simple: uses ntegral bedplate, good rigidity structure, easy to wash and clean;

3. All liquid contact parts material use high quality stainless steel, which ensures the machine long term running situation.

4. Equipment structure is more compact, can save more plant space for customers.

5. Centralized lubricating oil for easy maintenance and maintenance.



Glass bottle filling machine parameters:



Item                 BDCGF14-12-6  BDCGF18-18-6  BDCGF24-24-8  BDCGF32-32-10 BDCGF40-40-12

Capacity

bottles per hour

2000-2500 3000-4000 5000-6000 7000-8000 10000-12000

Suitable bottle

diameter

50-90mm

200-2000ml

Filling temperature

she

2-3

Machine weight

KG

2500 3500 4000 5000 8000

Machine size

L*W*H (mm)

2400*1600

*2400

2400*1850

*2400

3100*2200

*2400

3600*2500

*2400

3900*2700

*2400



Glass bottle filling machine details description:

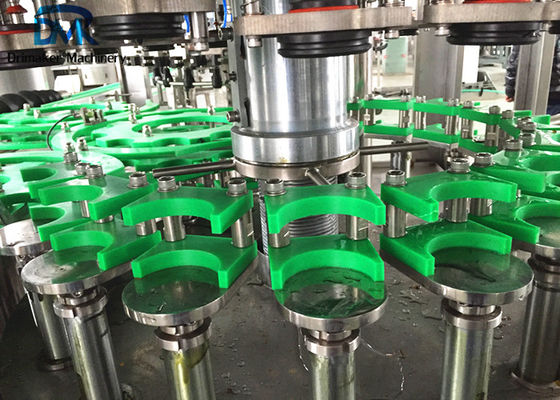

Bottle inlet:

It use bottle feeding screw to make empty glass bottle enter into working position one by one smoothly. The rotary speed is

suitbale for machine running speed, and this feeding screw will creat the necessary space between two bottles.



Bottle rinsing:

Bottle rinsing clamp use high quality material, to hold the most circle of bottle neck of empty bottle, make sure empty bottle is in  stable situation during rinsing area. when empty bottles are automatically rotated in a 180°semi-circle on the track, it washes the bottle inside in a complete and efficient way.

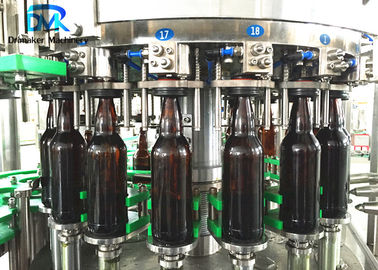

Bottle filling:

It adopts isobaric filling principle, to fill beer into empty bottle, during the filling period, air aressure in bottle is same with filling

tank inside because of advanced filling principle, which makes filling period more safe without too much gas leakage.

Quality stainless steel is used in all parts that contact beverage; All pipelines contact with gas and liquid use Inside and outside polishing pipe; All seal ring contact with the beverage use food-stage nitrile rubber or silicon rubber, meeting health requirements.



Capping:

This special designed for crown cap of glass bottle, it uses advanced foreign principle and rich experience, make the capping

part smooth and safe. Besides, if customer want to use other type cap and aluminum cap, easy-open cap, we can also design

and use suitable capping part equipment accoridng to customer demands.



 Stainless Steel Milk Glass Bottle Packing Machine 3000-4000 Bottles Per Hour 0Stainless Steel Milk Glass Bottle Packing Machine 3000-4000 Bottles Per Hour 1
