Place of Origin: | Zhangjiagang city |
Brand Name: | DMK |
Model Number: | CGF 12-12-5 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Packaging Details: | Standard export packing |
Delivery Time: | 30 working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 100 sets per year |
Name: | Bottle Water Bottling Machine | Voltage: | 380V 50HZ(can Be Customized) |
---|---|---|---|
Machine Speed: | 0-4000 Bottles Per Hour(adjustable) | Function: | Rinsing Filling Capping |
Automatic Grade: | Fully Automatic | Material: | SUS 304 |
Size:: | L*W*H2400*1600*2400mm | Suitable Liquid: | Mineral Water/drinking Water/purified Water/juice |
High Light: | SUS 304 Automatic Mineral Water Machine,Plastic Drinking Water Bottling Machine,380V Mineral Water Bottling Machine |

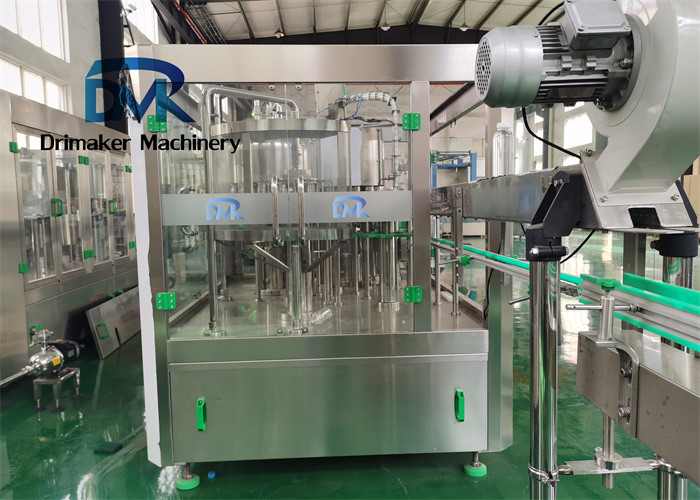

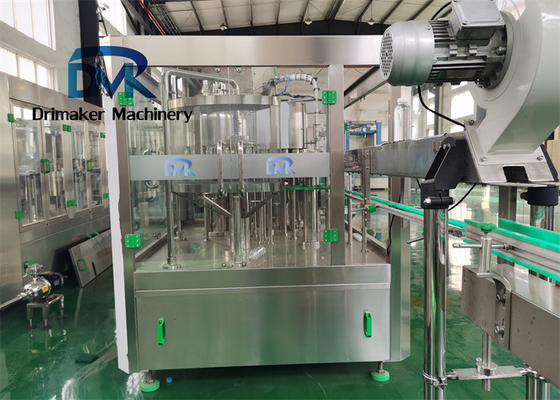

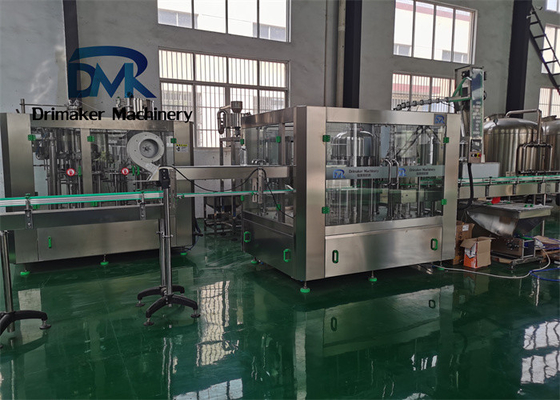

Automatic Mineral Water Machine / Plastic Bottle Drinking Water Bottling Machine
Water bottling machine description:
The filling machine is suitable for filling various mineral water, pure water, wine and other food industries. The pure water filling machine is one of the main equipment produced by the pure water factory. It is developed on the basis of foreign advanced technology and according to the filling process requirements of pure water and other beverages.
The machine adopts the man-machine interface touch screen tocontrol,PLC computer program control, frequency control and other advanced technology. Has covered for the system automatic control, automatic detection,temperature of filling material high temperature alarm, low temperature shutdown andautomatic return, no bottle no stamp, without bottle waiting, lack of cover stopfunction. As well as the functional bottle washing machine installation and debugging process.
Water bottling machine features:
No | Details |
1 | The machine has compact structure, complete control system, convenient operation and high degree of automation; |

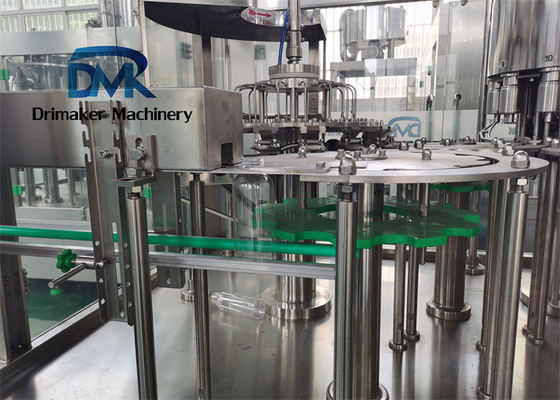

2 | To change the shape of the bottle, you only need to replace the star wheel of the screw cap part, and the arc guide plate can be realized; |
3 | The parts in contact with the material are made of high-quality stainless steel, no dead corners in the process, and easy to clean; |
4 | High-speed filling valve is adopted, the liquid level is accurate and there is no liquid loss, ensuring the filling process requirements; |
5 | The capping head adopts a magnetic constant torque device to ensure the capping quality and not damage the cap; |
6 | High-efficiency cap sorting system is adopted, with perfect automatic control and protection device; |
7 | Equipped with perfect overload protection device, which can effectively protect the safety of equipment and operators; |
8 | The control system has the functions of production speed control, lack of cap detection, self-stopping of stuck bottles and output counting; |
9 | The main electrical components and pneumatic components are all world famous brand products; |
10 | The operation of the whole machine adopts advanced touch screen control, which can realize man-machine dialogue operation. |
Water bottling machine parameters:
Item | CGF8-8-3 | CGF12-12-5 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 |
Running speed BPH |
2000-3000 | 3000-4000 | 5000-6000 | 8000-10000 | 10000-12000 |
Suitable bottle diameter |
50-90mm 200-2000ml |
||||
Rinsing pressure kg/cm2 |
2-3 | ||||
Machine weight KG |
1500 | 2500 | 3500 | 4000 | 5000 |
Machine size L*W*H (mm) |
1900*1600 *2400 |
2400*1600 *2400 |
2400*1830 *2400 |
3100*2200 *2400 |
3600*2500 *2400 |
Water bottling machine component :
No |
Name |
Details |
1 | Product conveyor | It helps transfter bottles between each machines auyomaticall, which can save a lot of labor cost, and reach higher production speed. |

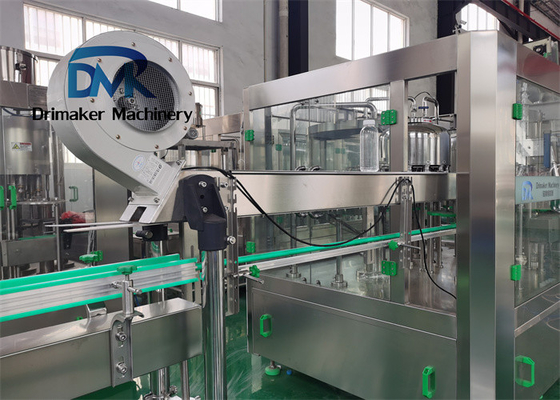

2 | Air conveyor | This is used to transfter empty bottles between bottle making machine(or bottle sorting machine, manual feeding table) to filling machine, empty bottles will be transferred by air, which can reduce second touch. |
3 | Automatic cap feeding system | It transfer caps into cap tunnels, and caps will be arranged in lines to get into cappinng station. |
4 | Motors | This is power system to give power to conveyor belt, we use reduction motors to ensure the smooth operation of the conveyor belt. |
