Automatic Easy Operation Carbonated Rinsing Filling Packing Machine 10000bph

Automatic Easy Operation Carbonated Rinsing Filling Packing Machine 10000bph

Automatic Easy Operation Carbonated Rinsing Filling Packing Machine 10000bph
Automatic Easy Operation Carbonated Rinsing Filling Packing Machine 10000bph
Automatic Easy Operation Carbonated Rinsing Filling Packing Machine 10000bph
Product Details:
Place of Origin: Zhangjiagang city
Brand Name: DMK
Model Number: DCGF32-32-10
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 12,000-100,000 per set
Packaging Details: Standard export packing
Delivery Time: 50 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets per year
Contact Now
Detailed Product Description
Name: Soft Drinks Filling Machine Capacity: 9000-11000 Bottles Per Hour(500ml Bottle)
Automation Grade: Fully Automatic Afrer-sale Service: Engineers Available To Service Machinery Overseas
Warranty: 12 Month Size: (L*W*H)3600*2500*2400mm
Function: Rinsing Filling Capping 3 In 1 Filling Type: Pressure
Structure: Rotary Type Material: SUS304/316
Transport Package: Seaworthy Packing Origin: Zhangjiagang, China
High Light:

Soft Drink Packing Machine 11000 bottles/h


10000bph Soft Drink Packing Machine


Carbonated Packing Machine 11000 bottles/h

10000bph Automatic 3-in-1 Easy-Operati Carbonated Soft Drink Rinsing Filling Packing Machine

Soda bottling machine description:

1. PET bottle carbonated beverage production equipment adopts the bottleneck drive technology to realize automatic bottle washing,filling, capping and other processes.

2. With high degree of automation;Equipped with accurate CO2 pressure control, stable liquid level control;

3. Equipped with multiple protection and alarm devices such as jammed bottles, missing bottles, missing caps and overload to ensure the quality of products.

4. It has the advantages of high reliability, high efficiency and simple operation.The carbonated beverage filling machine and the material contact parts are made of stainless steel, has the characteristics of health and easy to clean.

Soda bottling machine parameters:


Item    DCGF8-8-3   DCGF12-12-5  DCGF18-18-6  DCGF24-24-8 DCGF32-32-10 DCGF40-40-12 DCGF50-50-15

bottles per hour

1500-2000 2000-3000 4000-5000 7000-8000 9000-11000 12000-14000 15000-16000

Suitable bottle


Filling temperature


Machine weight

2000 3000 3500 4500 5500 8000 9000

Machine size
L*W*H (mm)


















Soda bottling machine details description:


Washing part:

1. The new bottles enter the equipment through the bottle dividing screw and star wheel.

2. The clamp and turnover mechanism clamp the bottle mouth and turn it to the bottle mouth downward.

3. After washing with sterile water, drain it. The bottles automatically turn over to the bottle mouth upward and are transported to the next process through the star wheel.

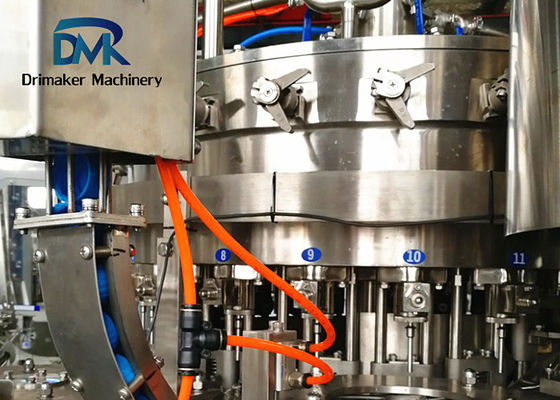

Filling part:

1. In the filling part, the materials are filled into the washed bottles sent by the bottle washing machine.
2. We designed this filling machine by ourselves.

3. The filling valve has independent intellectual property rights, using the filling principle of pressure filling and negative pressure reflux.
4. The filling valve adopts the way of pressure filling negative pressure reflux, which makes the filling process quick and sensitive. It also makes the filling liquid level precision high.

5. There is no spring in the valve. The material does not contact with the spring, which is conducive to the internal cleaning of the valve. This machine can meet the requirements of the filling process and filling temperature.

6. When there is no bottle or the filling valve is shut down, the material in the valve is in the micro reflux state.


Capping part:

1. The caps arranged by the capping device are pressed onto the filled bottles, and then send bottles to the next process by the conveyor chain.

2. The screw cap is a magnetic screw cap with overload protection function, and the screw cap torque is stable and reliable.

3. There is no gnawing cover, high cover, skew cover and curling phenomenon.


Automatic Easy Operation Carbonated Rinsing Filling Packing Machine 10000bph 0
