Place of Origin: | Zhangjiagang city |
Brand Name: | DMK |
Model Number: | DCGF32-32-10 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | USD 12,000-100,000 per set |
Packaging Details: | Standard export packing |
Delivery Time: | 50 working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 100 sets per year |
Name: | Soft Drinks Filling Machine | Capacity: | 9000-11000 Bottles Per Hour(500ml Bottle) |
---|---|---|---|
Automation Grade: | Fully Automatic | Afrer-sale Service: | Engineers Available To Service Machinery Overseas |
Applicable Bottle Type: | PET Bottle | Size: | (L*W*H)3600*2500*2400mm |
Function: | Rinsing Filling Capping 3 In 1 | Origin: | Zhangjiagang, China |
High Light: | PET Bottle Carbonated Filling Machine,11000 Bottles/h Carbonated Filling Machine,11000 Bottles/h Soft Drink Packaging Machine |

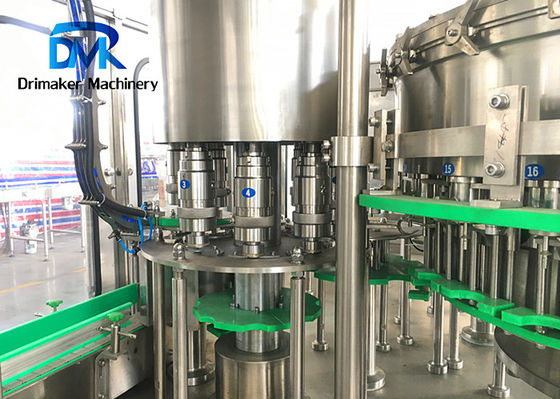

Full Automatic Soft Carbonated Drink Bottle Liquid Washing Filling Capping Machine
Soda bottling machine description:
1. PET bottle carbonated beverage production equipment adopts the bottleneck drive technology to realize automatic bottle washing,filling, capping and other processes.
2. With high degree of automation;Equipped with accurate CO2 pressure control, stable liquid level control;
3. Equipped with multiple protection and alarm devices such as jammed bottles, missing bottles, missing caps and overload to ensure the quality of products.
4. It has the advantages of high reliability, high efficiency and simple operation.The carbonated beverage filling machine and the material contact parts are made of stainless steel, has the characteristics of health and easy to clean.
Principle of isobaric filling:
No | Detailed description |
1 | The carbonated beverage filling machine adopts iso-pressure (iso-barometric) filling technology is adopted enabling it to fill more efficiently and more stably with more output than the machine of the same level from others. |
2 | The isostatic filling machine generally maintains a certain filling pressure in the storage tank. |
3 | When the container to be filled enters the filling machine, the container is first Inflated, the gas can be compressed air or carbon dioxide gas, preferably carbon dioxide gas. |
4 | When the pressure in the container and the pressure in the storage tank are the same, the self-weight of the liquid is filled through the open filling valve. |
5 | During the filling process, the gas in the container is smoothly exported and returned to the storage tank or to the gas chamber. |
Soda bottling machine parameters:
Item | DCGF8-8-3 | DCGF12-12-5 | DCGF18-18-6 | DCGF24-24-8 | DCGF32-32-10 | DCGF40-40-12 | DCGF50-50-15 |
Capacity |
1500-2000 | 2000-3000 | 4000-5000 | 7000-8000 | 9000-11000 | 12000-14000 | 15000-16000 |
Suitable bottle |
50-90mm |
||||||
Filling temperature |
0℃~4℃ |
||||||
Machine weight |
2000 | 3000 | 3500 | 4500 | 5500 | 8000 | 9000 |
Machine size |
2000*1600 |
2400*1600 |
2400*1850 |
3100*2200 |
3600*2500 |
4000*2800 |
5400*4200 |
Soda bottling machine details description:
The rinsing part of this machine rotary type bottle rinsing, which is mainly used for rinsing new bottles of beverage, water and other products. After rinsing, bottles are going to be sent to the filling part for filling the product; PET bottles are put into the equipment by the dividing star wheel and transferred to the bottle mouth side down by the clamp and the turnover mechanism. The purified water is washed and drained, and then automatically flipped to the bottle mouth side up; The PET bottles are transported to the filling machine by the star wheel. The main structure of the equipment and washing medium contact parts and external protective cover are of high quality stainless steel materials; New stainless steel clamp, simple structure, easy to adjust; Small contact area with the bottle mouth, effectively avoid the secondary pollution of the bottle mouth; The bottling machine is equipped with a water receiving pan to recover the bottling water.
