| Place of Origin: | Zhangjiagang city |
| Brand Name: | DMK |
| Model Number: | CGF 8-8-3 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export packing |
| Delivery Time: | 30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 sets per year |
| Name: | Bottle Water Bottling Machine | Power: | 3.1KW |
|---|---|---|---|
| Machine Speed: | 0-3000 Bottles Per Hour(adjustable) | Material: | Stainless Steel |
| Rinser: | 8 Pcs Rinsing Head | Filler: | 8 Pcs Filling Head |
| Capper: | 3 Pcs Capping Head | Bottle Volume: | 200-2000ml |
| High Light: | 3000BPH Drinking Water Filling Machine,Drinking Water Bottling Machine,3000 BPH Water Bottling Machine |
||

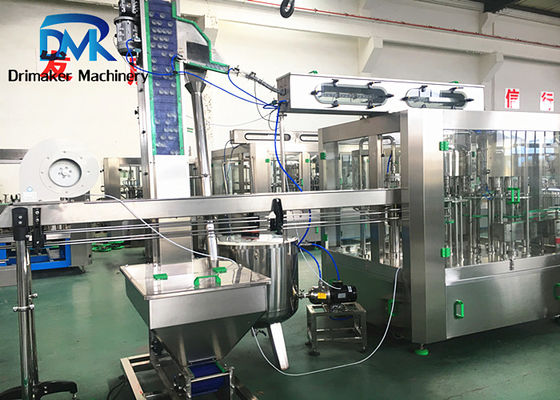

3000BPH Fully Auto Drinking Water Bottling Machine / Plastic Bottle Water Filler
Water bottling machine description:
1. This machine adopts advanced technology and strong material, to make sure machine running situation is stable.
2. This model machine production speed is not large, which is designed for customers who want to start a small-medium water plant at the beginning.
3. Machine is easy to operate, there are no complexe operating steps to control the water filling machine, operators only need to control several buttons on conrol panel.
4. One opererator is enouggh to take care of this bottle water machine production, so customers can save more labor cost to other places.
5. Water botling machine can reach different production speed by frequency conveter, and operator can control the machine running speed by knob on the control panel easily.
6. This 8-8-3 water bottling machine running speed is 0-3000 bottles per hour, and we have other models machine to with different production speed.
7. Machine combines rinser, filler and capper 3 machines in one structure, so customers can use smaller space for water production.
Water bottling project line:
1. Water treatment system: RO water purification machine / UF mineral water filtration machine.
2. Empty bottle maker: Full automatic bottle blow machine or Semi automatic bottle blow machine.
3. Water bottling machine: Bottle washing filling and capping machine.
4. Automatic labeling machine: Shrink sleeve labeling machine or Sticker labeling machine.
5. Date printer machine: Laser type date marking or ink type date marking machine.
6. Packing machine: Full automatic shrink wrapping packing machine or Semi automatic shrink wrapping packing machine / Carton box packing machine
Water bottling machine parameters:
| Item | CGF8-8-3 | CGF12-12-5 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 |
|
Capacity bottles per hour |
2000-3000 | 3000-4000 | 5000-6000 | 8000-10000 | 10000-12000 |
|
Suitable bottle diameter |
50-90mm 200-2000ml |
||||
|
Rinsing pressure kg/cm2 |
2-3 | ||||
|
Machine weight KG |
1500 | 2500 | 3500 | 4000 | 5000 |
|
Machine size L*W*H (mm) |
1900*1600 *2400 |
2400*1600 *2400 |
2400*1830 *2400 |
3100*2200 *2400 |
3600*2500 *2400 |
Water bottling machine component :
|
No |
Name |
Details |
| 1 | Product conveyor | It helps transfter bottles between each machines auyomaticall, which can save a lot of labor cost, and reach higher production speed. |
| 2 | Air conveyor | This is used to transfter empty bottles between bottle making machine(or bottle sorting machine, manual feeding table) to filling machine, empty bottles will be transferred by air, which can reduce second touch. |
| 3 | Automatic cap feeding system | It transfer caps into cap tunnels, and caps will be arranged in lines to get into cappinng station. |
| 4 | Motors | This is power system to give power to conveyor belt, we use reduction motors to ensure the smooth operation of the conveyor belt. |
Thanks!
For more information please contact us by email or whatsapp, our professional sales team will get your information and help you get your idea machine as soon as possible!
