Place of Origin: | Zhangjiagang city |
Brand Name: | DMK |
Model Number: | CGF32-32-10 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Packaging Details: | Standard export packing |
Delivery Time: | 30 working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 100 sets per year |
Name: | Bottle Water Bottling Machine | Electric Supply: | 380V 50HZ(customized) |
---|---|---|---|
Machine Capacity: | 12000 Bottles Per Hour(500ml Plastic Bottle) | Machine Model: | CGF 32-32-10 |
Rinsing: | 32 Pcs Rinsing Head | Filling: | 32 Pcs Filling Head |
Capping: | 10 Pcs Capping Head | Machine Size: | 3600*2500*2400mm |
High Light: | 12000 Bph Water Bottle Packaging Machine,Automatic Water Bottle Packaging Machine |

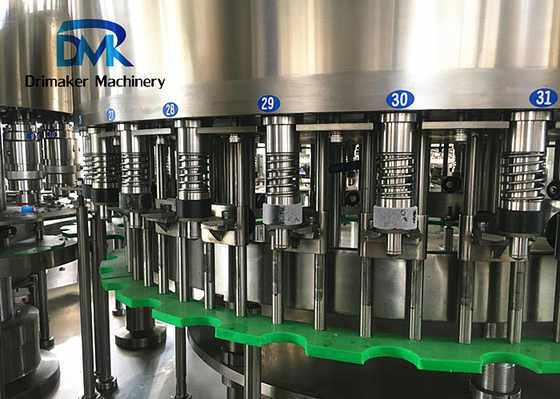

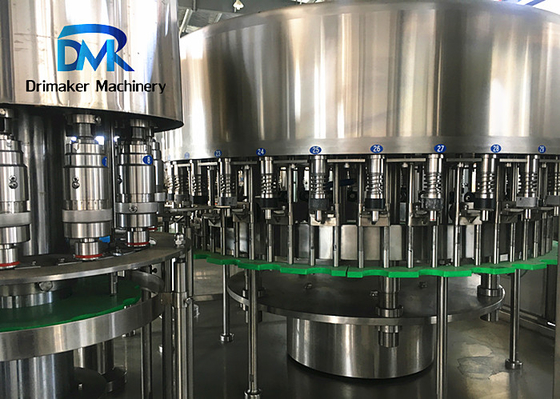

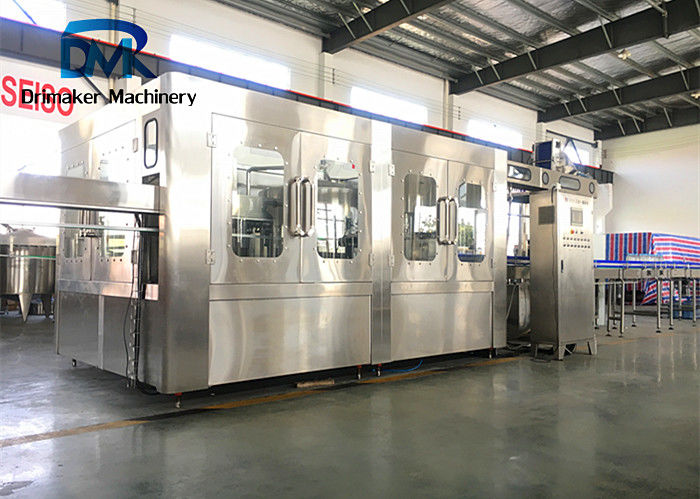

Automatic Drinking Water Bottle Filling Machine / Water Bottle Packaging Machine
Water bottling machine description:
No | Details |
1 |
This machine is widely used automatic bottled water filling and capping machine, including water rinsing, water filling and cap screwing 3 main functions.
|
2 | Filling machine be connected with bottle making machine by air conveyor directly. |
3 | Accoridng to customer's deamnds, we can also make this machine suitable for glass bottles or other types containers. |
4 | This machine is designed for plastic bottles. |
5 | This machine is designed for water plant, flavored water plant and various types non-carbonated drinks production plants. |
6 | This CGF type bottle water filling machine has different models with different production capacity, from 2000 bottles per hour to 20000+bottles per hour. |
7 | We will give suitable guidance accoridng to customer's situation and our experience. |
Water bottling project line:
1. Water filtration: RO water purification machine / UF mineral water filtration machine.
2. Bottle making: Full automatic bottle blow machine or Semi automatic bottle blow machine.
3. Bottle water filling: Bottle washing filling and capping machine.
4. Labeling machine: Shrink sleeve labeling machine or Sticker labeling machine.
5. Date printing: Laser type date marking or ink type date marking machine.
6. Package the bottle water: Full automatic shrink wrapping packing machine or Semi automatic shrink wrapping packing machine / Carton box packing machine
Water bottling machine parameters:
Item | CGF8-8-3 | CGF12-12-5 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 |
Capacity bottles per hour |
2000-3000 | 3000-4000 | 5000-6000 | 8000-10000 | 10000-12000 |
Suitable bottle diameter |
50-90mm 200-2000ml |
||||
Rinsing pressure kg/cm2 |
2-3 | ||||
Machine weight KG |
1500 | 2500 | 3500 | 4000 | 5000 |
Machine size L*W*H (mm) |
1900*1600 *2400 |
2400*1600 *2400 |
2400*1830 *2400 |
3100*2200 *2400 |
3600*2500 *2400 |
Water bottling machine component :
No |
Name |
Details |
1 | Product conveyor | It helps transfter bottles between each machines auyomaticall, which can save a lot of labor cost, and reach higher production speed. |
2 | Air conveyor | This is used to transfter empty bottles between bottle making machine(or bottle sorting machine, manual feeding table) to filling machine, empty bottles will be transferred by air, which can reduce second touch. |
3 | Automatic cap feeding system | It transfer caps into cap tunnels, and caps will be arranged in lines to get into cappinng station. |
4 | Motors | This is power system to give power to conveyor belt, we use reduction motors to ensure the smooth operation of the conveyor belt. |
Thanks!
For more information please contact us!
Contact Person: Mr. Jerry Wu
Tel: 86-18606249106
