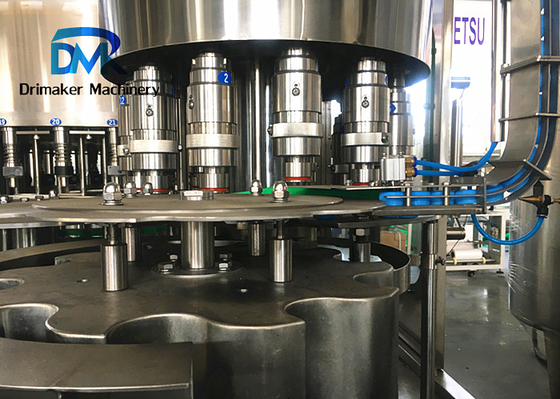

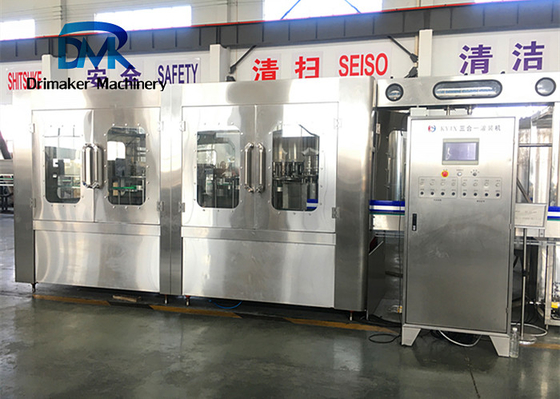

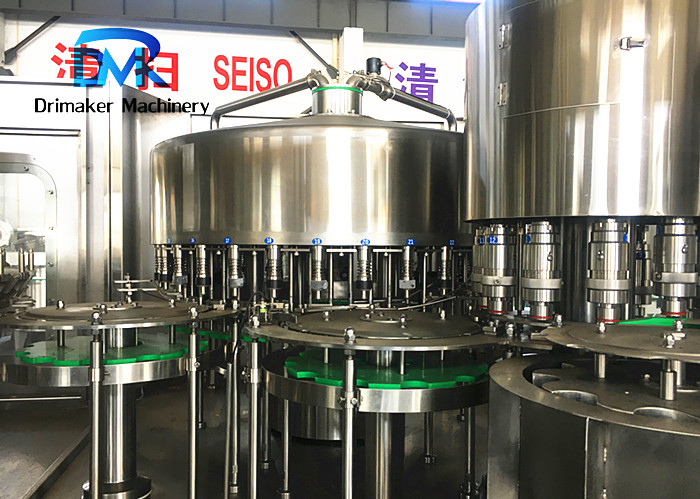

330ml Bottle Water Filling Machine for Non Carbonated Non Alcoholic Drink

330ml Bottle Water Filling Machine for Non Carbonated Non Alcoholic Drink

330ml Bottle Water Filling Machine for Non Carbonated Non Alcoholic Drink
330ml Bottle Water Filling Machine for Non Carbonated Non Alcoholic Drink
330ml Bottle Water Filling Machine for Non Carbonated Non Alcoholic Drink
Product Details:
Place of Origin: Zhangjiagang city
Brand Name: DMK
Model Number: CGF 24-24-8
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export packing
Delivery Time: 30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets per year
Contact Now
Detailed Product Description
Name: Bottle Water Bottling Machine Electric Supply: 380V 50HZ(customized)
Machine Capacity: 10000 Bottles Per Hour(500ml Plastic Bottle) Stainless Steel: SUS304/316
Power: 3.8KW Bottle Size: 200-2000ml (Customized)
Operation: Touch Screen+button Machine Size: 2800*2200*2400mm
High Light:

330ml Bottle Water Filling Machine

,

Non Carbonated Bottle Water Filling Machine

,

Non Alcoholic Drink Filling Machine

330ml Bottle Water Filling Machine / Non-carbonated Non-alcoholic Drink Filling Machine



Water bottling machine description:



1. Beverage Machinery is used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery.



2. Beverage Machinery can finish all the process such as washing bottle, filling and sealing, it can reduce the materials and outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.



3. This is our new designed CGF machine series, which means bottle washing, water filling and cap sealing 3 in 1 machine series, This series machines are widely used in verious drinking water and beverage production plants.

4. The Complete Bottled Mineral Water / Pure Water Production Line used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic.



Water bottling project line:



Item Machine Description
1 Making bottle Full automatic bottle blow machine or Semi automatic bottle blow machine
2 Water Filtration RO water purification machine / UF mineral water filtration machine.
3 Filling water into bottle Bottle washing filling and capping machine.
4 Labeling bottle water Shrink sleeve labeling machine or Sticker labeling machine.
5 Printing the date on the bottle water Date printing machine.
6 Package the bottle water Full automatic shrink wrapping packing machine or Semi automatic shrink wrapping packing machine / Carton box packing machine





Water bottling machine parameters:



Item                 CGF8-8-3    CGF12-12-5  CGF18-18-6  CGF24-24-8  CGF32-32-10

Capacity

bottles per hour

2000-3000 3000-4000 5000-6000 8000-10000 10000-12000

Suitable bottle

diameter

50-90mm

200-2000ml

Rinsing pressure

kg/cm2

2-3

Machine weight

KG

1500 2500 3500 4000 5000

Machine size

L*W*H (mm)

1900*1600

*2400

2400*1600

*2400

2400*1830

*2400

3100*2200

*2400

3600*2500

*2400































Water bottling machine component :



1. Product conveyor: It helps transfter bottles between each machines auyomaticall, which can save a lot of labor cost, and reach higher production speed.



2. Air conveyor: This is used to transfter empty bottles between bottle making machine(or bottle sorting machine, manual feeding table) to filling machine, empty bottles will be transferred by air, which can reduce second touch.



3. Automatic cap feeding system: It transfer caps into cap tunnels, and caps will be arranged in lines to get into cappinng station.



4. Motors: This is power system to give power to conveyor belt, we use reduction motors to ensure the smooth operation of the conveyor belt.



330ml Bottle Water Filling Machine for Non Carbonated Non Alcoholic Drink 0330ml Bottle Water Filling Machine for Non Carbonated Non Alcoholic Drink 1



Thanks!

For more information please contact us!
