| Place of Origin: | Zhangjiagang city |
| Brand Name: | DMK |
| Model Number: | CGF 12-12-5 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export packing |
| Delivery Time: | 30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 sets per year |
| Name: | Bottle Water Bottling Machine | Electric Supply: | 380V 50HZ(customized) |
|---|---|---|---|
| Machine Capacity: | 4000 Bottles Per Hour(500ml Plastic Bottle) | Stainless Steel: | SUS304/316 |
| Power: | 3.1KW | Bottle Size: | 200-2500ml (Customized) |
| Operation: | Touch Screen+button | Machine Size: | 2400*1600*2400mm |
| High Light: | Flavored Water Filling Machine,2500ml Bottle Water Filling Machine,SUS304 Bottle Water Filling Machine |
||
Flavored Water Filling Machine / Plastic Bottle Water Filling Machine
Water bottling machine description:

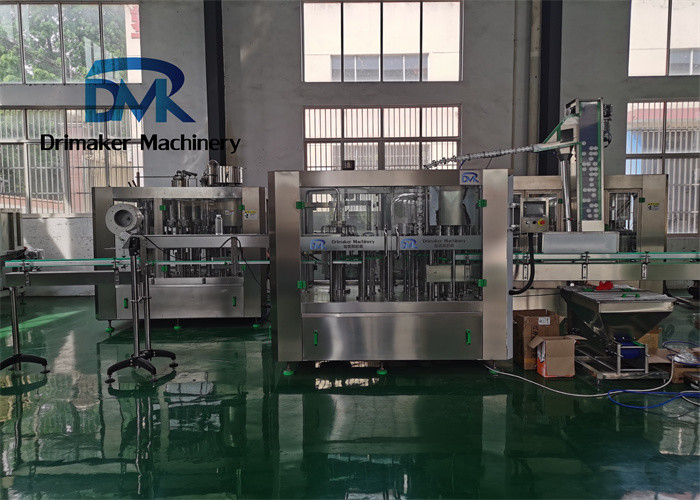

This CGF Wash-filling-capping 3-in-1unit: Beverage Machinery is used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery. Beverage Machinery can finish all the process such as washing bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.
This is our new designed CGF machine series, which means bottle washing, water filling and cap sealing 3 in 1 machine series, This series machines are widely used in verious drinking water and beverage production plants,
The Complete Bottled Mineral Water / Pure Water Production Line used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic.

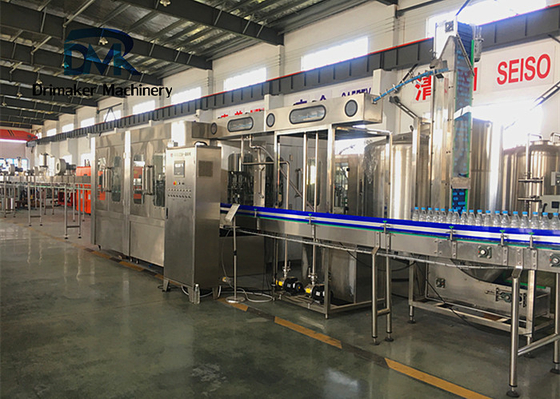

Water bottling project line:
| Item | Machine | Description |
| 1 | Making bottle | Full automatic bottle blow machine or Semi automatic bottle blow machine |
| 2 | Water Filtration | RO water purification machine / UF mineral water filtration machine. |
| 3 | Filling water into bottle | Bottle washing filling and capping machine. |
| 4 | Labeling bottle water | Shrink sleeve labeling machine or Sticker labeling machine. |
| 5 | Printing the date on the bottle water | Date printing machine. |
| 6 | Package the bottle water | Full automatic shrink wrapping packing machine or Semi automatic shrink wrapping packing machine / Carton box packing machine |
Water bottling machine parameters:
| Item | CGF8-8-3 | CGF12-12-5 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 |
|
Capacity bottles per hour |
2000-3000 | 3000-4000 | 5000-6000 | 8000-10000 | 10000-12000 |
|
Suitable bottle diameter |
50-90mm 200-2000ml |
||||
|
Rinsing pressure kg/cm2 |
2-3 | ||||
|
Machine weight KG |
1500 | 2500 | 3500 | 4000 | 5000 |
|
Machine size L*W*H (mm) |
1900*1600 *2400 |
2400*1600 *2400 |
2400*1830 *2400 |
3100*2200 *2400 |
3600*2500 *2400 |
Water bottling machine component :
| Item | Name | Description |

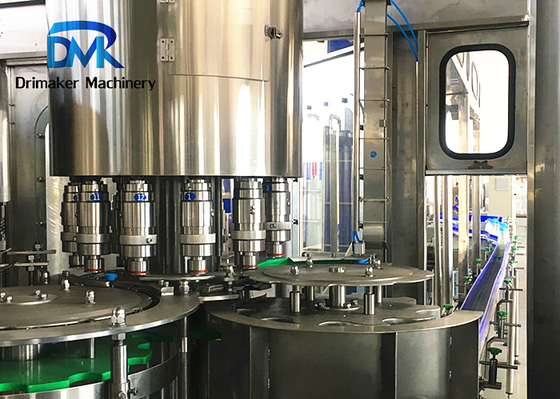

| 1 | Conveyor | Driving plate style feeding star-wheel, it is suitable for different bottle size and no needto change the height of machine. |
| 2 | Rinsing part | All 304 stainless steel rinser heads, water spray style inject design, more save water consumption & more clean 304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing. |
| 3 | Filler |
High precision filling nozzle, PLC variable signal control, ensure high filling precision Gravity filling, & filling smoothly & steadily All 304 stainless steel contact parts & liquid tank, fine polish, easy to clean No bottle no filling. |
| 4 | Capper | Place & capping system,electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping All 304 stainless steel construction No bottle no capping and Automatic stop when lack of bottle. |
