Small Scale 2500ml Water Bottling Machine For Mineral Water Palnt

Small Scale 2500ml Water Bottling Machine For Mineral Water Palnt

Small Scale 2500ml Water Bottling Machine For Mineral Water Palnt
Small Scale 2500ml Water Bottling Machine For Mineral Water Palnt
Small Scale 2500ml Water Bottling Machine For Mineral Water Palnt
Product Details:
Place of Origin: Zhangjiagang city
Brand Name: DMK
Model Number: CGF 12-12-5
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export packing
Delivery Time: 30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets per year
Contact Now
Detailed Product Description
Name: Bottle Water Bottling Machine Driven Type: Electric
Function: Bottle Washing Filling Capping Stainless Steel: SUS304/316
Power: 3.1KW Bottle Size: 200-2500ml (Customized)
Display System: Color Touching Screen Machine Size: 2400*1600*2400mm
High Light:

Small Scale Water Bottling Machine

,

Touching Screen Mineral Water Bottling Machine

,

2500ml Mineral Water Bottling Machine

Small Scale Water Bottling Machine For New Start Mineral Water Palnt



Water bottling machine description:



This CGF Wash-filling-capping 3-in-1unit: Beverage Machinery is used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery. Beverage Machinery can finish all the process such as washing bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.

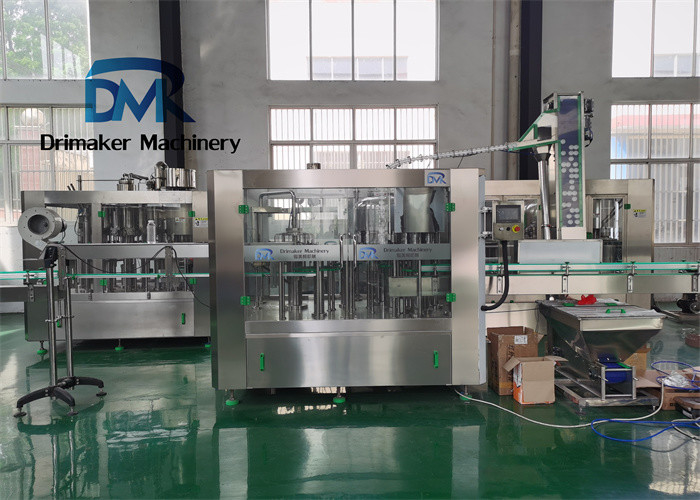

The Complete Bottled Mineral Water / Pure Water Production Line used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic.



Water bottling project line:



Item Machine Description
1 Making bottle Full automatic bottle blow machine or Semi automatic bottle blow machine
2 Water Filtration RO water purification machine / UF mineral water filtration machine.
3 Filling water into bottle Bottle washing filling and capping machine.
4 Labeling bottle water Shrink sleeve labeling machine or Sticker labeling machine.
5 Printing the date on the bottle water Date printing machine.
6 Package the bottle water Full automatic shrink wrapping packing machine or Semi automatic shrink wrapping packing machine / Carton box packing machine





Water bottling machine parameters:



Item                 CGF8-8-3    CGF12-12-5  CGF18-18-6  CGF24-24-8  CGF32-32-10

Capacity

bottles per hour

2000-3000 3000-4000 5000-6000 8000-10000 10000-12000

Suitable bottle

diameter

50-90mm

200-2000ml

Rinsing pressure

kg/cm2

2-3

Machine weight

KG

1500 2500 3500 4000 5000

Machine size

L*W*H (mm)

1900*1600

*2400

2400*1600

*2400

2400*1830

*2400

3100*2200

*2400

3600*2500

*2400































Water bottling machine component :



Item Name Description
1 Conveyor Driving plate style feeding star-wheel, it is suitable for different bottle size and no needto change the height of machine.

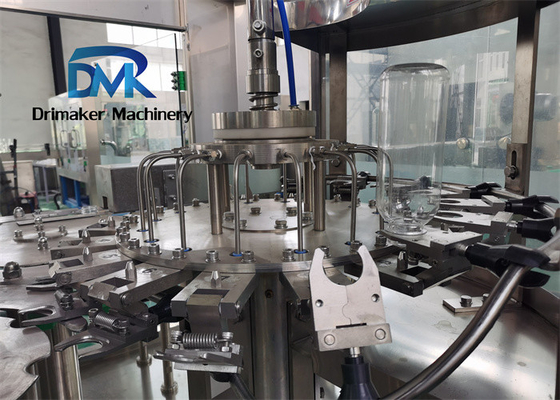

2 Rinsing part All 304 stainless steel rinser heads, water spray style inject design, more save water consumption & more clean 304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
3 Filler

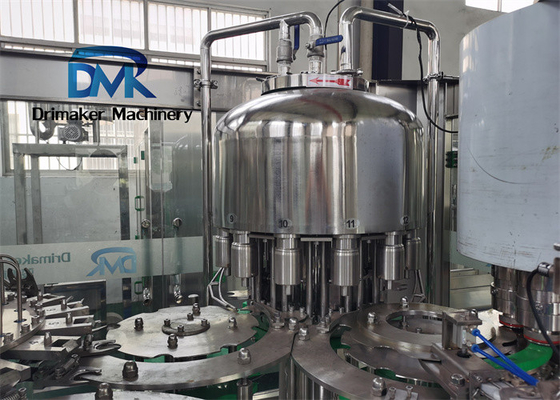

High precision filling nozzle, PLC variable signal control, ensure high filling precision Gravity filling, & filling smoothly & steadily All 304 stainless steel contact parts & liquid tank, fine polish, easy to clean No bottle no filling.

4 Capper Place & capping system,electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping All 304 stainless steel construction No bottle no capping and Automatic stop when lack of bottle.







Small Scale 2500ml Water Bottling Machine For Mineral Water Palnt 0Small Scale 2500ml Water Bottling Machine For Mineral Water Palnt 1
