Place of Origin: | Zhangjiagang city |
Brand Name: | DMK |
Model Number: | CGF 12-12-5 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Packaging Details: | Standard export packing |
Delivery Time: | 30 working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 100 sets per year |
Name: | Bottle Water Bottling Machine | Capacity: | 4000 Bottles Per Hour(500ml Bottle) |
---|---|---|---|
Warranty: | 2 Years | Packaging Type: | Bottles |
Power: | 3.1KW | Weight: | 2500KG |
Voltage: | 380V(can Be Customized) | Machine Size: | 2400*1600*2400mm |
High Light: | 500ml Spring Water Bottling Plant,Pure Drinking Water Bottling Machine,500ml Mineral Water Bottle Plant |

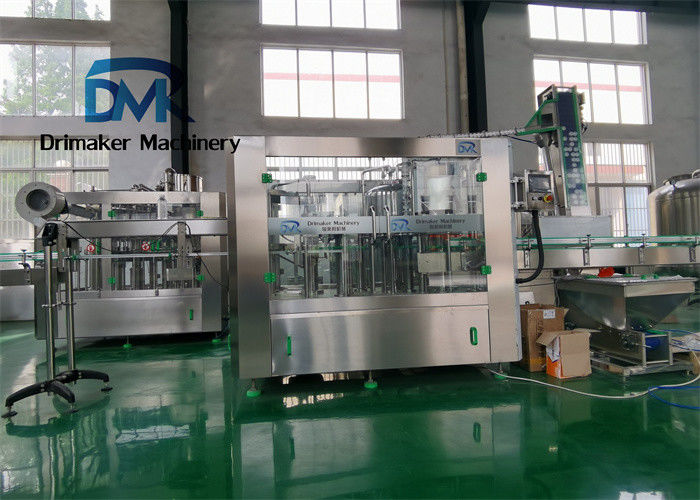

Automatic Small Pet Bottle Spring Mineral Pure Drinking Water Bottling And Capping Plant Machine
Water bottling machine description:
Our water bottling machine, combined with rinsing, filling and capping. It is innovated and designed in the requirement of still pure water and mineral water, on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy. This series bottle water filling machine is used to fill mineral water, pure water, purified water, spring water into PET bottle from 200ml-2000ml. Different volume bottle changing during production is easy, only need to replace the changing parts. Different models can satisfy various requirement of output from 2000B/H to 20000+B/H. The whole process of water filling production line is automatic, suitable for PET bottle, plastic bottle filling mineral water and pure water.
Water bottling project line:
Item | Machine | Description |
1 | Making bottle | Full automatic bottle blow machine or Semi automatic bottle blow machine |
2 | Water Filtration | RO water purification machine / UF mineral water filtration machine. |
3 | Filling water into bottle | Bottle washing filling and capping machine. |
4 | Labeling bottle water | Shrink sleeve labeling machine or Sticker labeling machine. |
5 | Printing the date on the bottle water | Date printing machine. |
6 | Package the bottle water | Full automatic shrink wrapping packing machine or Semi automatic shrink wrapping packing machine / Carton box packing machine |
We provide the turn-key solution, including: water treatment system, injection system, bottle blowing machine, bottle filling machine, packaging machine, conveyor system, electrical system, cable wire, etc, and related raw materials: bottle preforms, bottle cap, plastic particles, labels, shrink film, clean room building material etc. The corresponding pre-sale whole plant planning drawings and after-sales installation and debugging maintenance, we all have a A to Z complete service.
Water bottling machine parameters:
Item | CGF8-8-3 | CGF12-12-5 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 |
Capacity bottles per hour |
2000-3000 | 3000-4000 | 5000-6000 | 8000-10000 | 10000-12000 |
Suitable bottle diameter |
50-90mm 200-2000ml |
||||
Rinsing pressure kg/cm2 |
2-3 | ||||
Machine weight KG |
1500 | 2500 | 3500 | 4000 | 5000 |
Machine size L*W*H (mm) |
1900*1600 *2400 |
2400*1600 *2400 |
2400*1830 *2400 |
3100*2200 *2400 |
3600*2500 *2400 |
Water bottling machine component :
1. The three-in-one main machine consists of bottle washing machine, filling machine, capping machine, frame, window sealing, main motor and transmission system, bottle transmission, capping machine and electrical control system.
2. The turnover mechanism of the bottle washing machine is mainly composed of water distribution plate, bottle washing clip, upper turntable, guide rail, protective cover, water spraying device and water receiving plate.
3. The filling institution is mainly composed of the filling bucket, filling valve, guide rail, lifting device, and lifting device for sticking bottles.
4. The sealing mechanism is composed of three parts, namely, lid-laying device, lid-falling guide and lid-turning machine.
5. Auxiliary (or optional) equipment includes flushing water reflux tank, bottle inlet air duct and bottle outlet chain. In addition, manual bottle feeding platform (or bottle sorting machine), multi-row differential chain manual bottle arranging table, and automatic capping machine can be configured according to customer requirements.
Company information:
Our factory is located in the Zhangjiagang City with convenient transportation, one and half hour drive from Shanghai. We are committed to improving the standard of our products to fulfill the growing various solution for bottle packaging and beverage industry over the past few years.
We mainly offer bottled beverage production lines and other related machines
We offer Complete A to Z High Quality Automatic Pure and Mineral Water Filling Processing Line
Thanks!
For more information please contact us!
Contact Person: Mr. Jerry Wu
Tel: 86-18606249106
