|Place of Origin:||Zhangjiagang city|
|Model Number:||CGF 12-12-5|
|Minimum Order Quantity:||1 set|
|Packaging Details:||Standard export packing|
|Delivery Time:||60 working days|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||100 sets per year|
|Name:||Bottle Water Bottling Machine||Capacity:||4000 Bottles Per Hour(500ml Bottle)|
|Rinsing Head:||12 Heads||Filling Head:||12 Heads|
|Capping Head:||5 Heads||Machine Size:||2400*1600*2400mm|
Drinking Water Bottling Plant Machine,
Stainless Steel Water Bottling Plant Machine,
500ml Water Bottling Machine

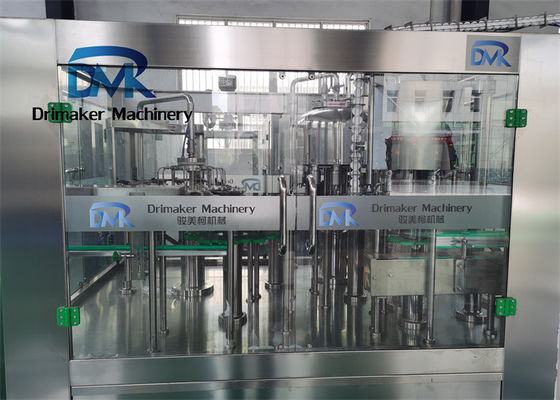

Fully Automatic Stainless Steel Water Bottling Plant Machine For Drinking Water
Water bottling machine description:
Our water bottling machine, combined with rinsing, filling and capping. It is innovated and designed in the requirement of still pure water and mineral water, on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy.
CGF series bottle water filling machine is used to fill mineral water, pure water, purified water, spring water into PET bottle from 200ml-2000ml. Different volume bottle changing during production is easy, only need to replace the changing parts.
Different models can satisfy various requirement of output from 2000B/H to 20000+B/H.
The whole process of water filling production line is automatic, suitable for PET bottle, plastic bottle filling mineral water and pure water.
Water bottling project line:
Normally mineral water bottling turnkey project from A to Z complete line mainly consists of 6 parts. They are respectively:
1. Water Treatment equipment
2. Bottle Preform Blowing Machine
3. Automatic Water Bottling Machine
4. Automatic Labeling Machine For different types label.
5. Automatic production code Printing Machine
5. Bottle Packagig Machine
Which means, this line from the raw water treatment to the bottled water packaging , is a complete automatic production line, it can well meet customer needs. We also design a reasonable plan for you to achieve higher production efficiency.
Water bottling machine parameters:
bottles per hour
Water bottling machine component :
1. The three-in-one main machine consists of bottle washing machine, filling machine, capping machine, frame, window sealing, main motor and transmission system, bottle transmission, capping machine and electrical control system.
2. The turnover mechanism of the bottle washing machine is mainly composed of water distribution plate, bottle washing clip, upper turntable, guide rail, protective cover, water spraying device and water receiving plate.

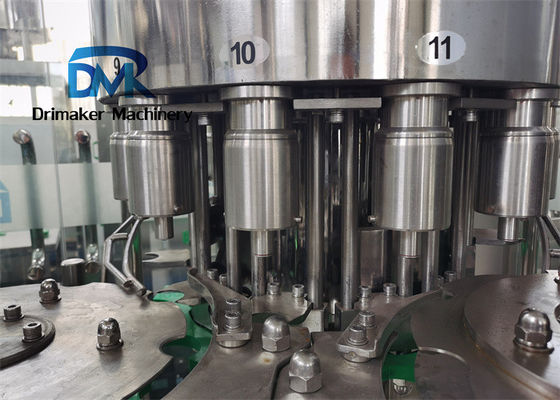

3. The filling institution is mainly composed of the filling bucket, filling valve, guide rail, lifting device, and lifting device for sticking bottles.
4. The sealing mechanism is composed of three parts, namely, lid-laying device, lid-falling guide and lid-turning machine.
5. Auxiliary (or optional) equipment includes flushing water reflux tank, bottle inlet air duct and bottle outlet chain. In addition, manual bottle feeding platform (or bottle sorting machine), multi-row differential chain manual bottle arranging table, and automatic capping machine can be configured according to customer requirements.
Our factory is located in the Zhangjiagang City with convenient transportation, one and half hour drive from Shanghai. We are committed to improving the standard of our products to fulfill the growing various solution for bottle packaging and beverage industry over the past few years.
We mainly offer bottled beverage production lines and other related machines
We offer Complete A to Z High Quality Automatic Pure and Mineral Water Filling Processing Line
