Place of Origin: | Zhangjiagang city |
Brand Name: | DMK |
Model Number: | DCGF18-18-6 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | USD 10,000-100,000 per set |
Packaging Details: | Standard export packing |
Delivery Time: | 45 working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 100 sets per year |
Name: | Soda Bottling Machine | Capacity: | 5000 Bottles Per Hour(half Litter) |
---|---|---|---|
Bottle Diameter: | 50-80mm | Application: | Soda Drink, Carbonated Drink, Soft Drinks |
Bottle Height: | 160-320mm | Rinsing Pressure: | 0.06Mpa-0.2Mpa |
Method Of Running Speed Adjustment: | Frequency Conversion | Power Of Main Motor: | 3.1KW |
High Light: | PLC Control Soft Drink Filling Line,0.2Mpa Soft Drink Filling Line,5000 Bottles/Hour Soda Bottling Machine |
High Speed Soft Drinks Production Plant Fully Auto Machine / 3 in 1 Filling Equipment
Soda bottling machine description:

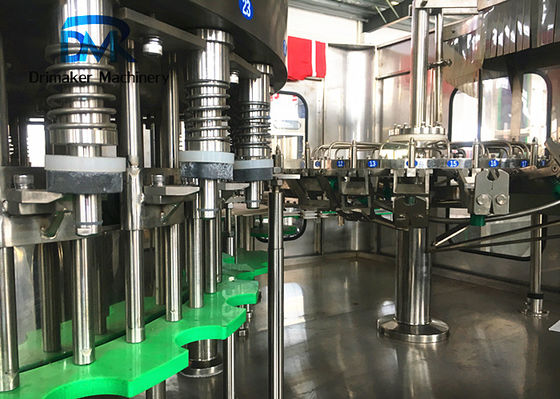

Carbonated drink 3-in-1 filling machine 5000bph is mainly applied for filling drinks. It combines rinsing bottle, filling and capping into one machine. The full procedure is automatics. It is suitable for PET bottle and plastic bottle to fill juice, mineral water, pure water. The adjustment for bottle type of each unit is fulfilled by turning handle; it is simple, easy and quick. The filling method applies new micro pressure filling so that the filling speed becomes more quick and stable. Compared with similar machines, it has higher yield, more benefit. The machine applies advance programmable controller (PLC) to control machine’s auto-running, the input bottle chain way changes its speed by frequency converter.
Soda bottling machine features:
Wind sent access and move wheel in the bottle directly connected technology are used in this filling machine; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough.The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, Siemens.
Soda bottling machine parameters:
Item | DCGF12-12-5 | DCGF18-18-6 | DCGF24-24-8 | DCGF32-32-10 |
Capacity |
2000-3000 | 4000-5000 | 7000-8000 | 9000-11000 |
Suitable bottle |
50-90mm |
|||
Filling temperature |
0℃~4℃ |
|||
Machine weight |
3000 | 3500 | 4500 | 5500 |
Machine size |
2400*1600 |
2400*1850 |
3100*2200 |
3600*2500 *2400 |
Characteristic and configuration:
No | Item | Specification |
Characteristics | ||
1 | Model | DCGF 24-24-8 |
2 | Capacity | 7000-8000BPH(calculated as 500ml bottle) |
5 | Filling precision | ≤±5mm |
Configuration (Also adjustable accoridng to customer demands) | ||
1 | PLC | Mitsubishi from Japan |
2 | Frequency inverter | Mitsubishi from Japan |
3 | Touch screen | Weinview from Taiwan |
4 | Photoelectric | Omron from Japan |
5 | Air switch | Omron from Japan |
6 | Material contacting liquid | High quality stainless steel |
Thanks!
For more information please contact us!
