CGF 24-24-8 3.8KW Automatic Water Bottling Machine Touch Screen Control
Product Details
10000bottles/h Water Bottling Line
,3.8KW Automatic Water Bottling Machine
,Touch Screen Control Water Bottling Machine
CGF 24-24-8 Automatic Water Bottling Machine / Touch Screen Control Equipment
24 Filling Heads Water Bottling Machine Automatic Electric Driven Production Line

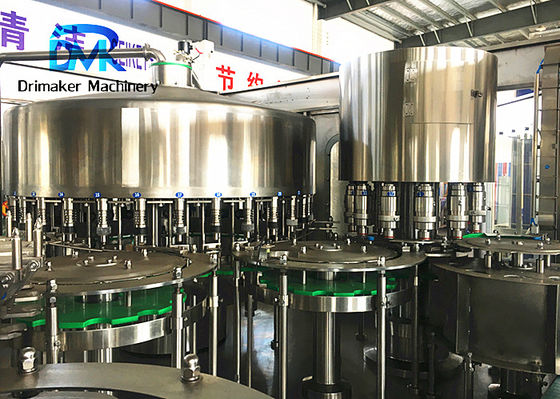

Water bottling machine description:
This machine is the introduction of foreign advanced technology design andmanufacture of rinsing filling capping 3 in 1 monoblock machine. It can finish automatic bottle rinsing with water, automatic bottle filling with water, and automatic cap screwing.
Water bottling machine features:
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
Water bottling machine parameters:
| Item | CGF8-8-3 | CGF12-12-5 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 | CGF40-40-12 | CGF50-50-15 |
|
Capacity bottles per hour |
2000-3000 | 3000-4000 | 5000-6000 | 8000-10000 | 10000-12000 | 14000-16000 | 20000-24000 |
|
Suitable bottle diameter |
50-90mm 200-2000ml |
||||||
|
Rinsing pressure kg/cm2 |
2-3 | ||||||
|
Machine weight KG |
1500 | 2500 | 3500 | 4000 | 5000 | 7000 | 9000 |
|
Machine size L*W*H (mm) |
1900*1600 *2400 |
2400*1600 *2400 |
2400*1830 *2400 |
3100*2200 *2400 |
3600*2500 *2400 |
4000*2800 *2400 |
5400*4200 *2400 |
Water bottling machine details description:
| No | Item | Detail |
| 1 | Bottle rinsing |
Bottle-washing machine with the spring structure: when empty bottles are automatically rotated in a 180°semi-circle on the track, it washes the bottle insidein a complete and efficient way. Rinsing water is pumped into every filling nozzle, make sure the water can wash the bottle inside well. |
| 2 | Bottle filling |
This system is constituted with filling tank, main shaft part, bottle holding ascending and falling part, filling valves. No bottle no filling, save water. Micro negative pressure filling, more efficient filling way. All water contact parts are made of high quality stainless steel. Liquid level stabilizing device, help control water level. |
| 3 | Capping | Advanced cap-tightener structure: magnetic force is used in cap-tightener. Torque is adjusted in line with various caps, which is suitable for all kinds of plastic caps. Tooth profile device is used in choosing caps. Checking device is set at the bottom slide. We guarantee no inverse caps, and no bottle no caps. |
Thanks!
For more information please contact us!
-
