|Place of Origin:||Zhangjiagang city|
|Model Number:||DMK 12-12-1-12|
|Minimum Order Quantity:||1 set|
|Packaging Details:||Standard export packing|
|Delivery Time:||40 working days|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||100 sets per year|
|Name:||Aluminum Foil Liquid Bottling Machie||Capacity:||3000-4000 Bottles Per Hour|
|Material:||Stainless Steel||Function:||Rinsing-Filling-Aluminum Foil Cutting-Hot Sealing|
|Control:||PLC+Touch Screen||Drive Type:||Electric Drive|
|Suitable Bottle:||PP/PE||Voltage:||220/380V Or Customized|
high viscosity filling machine,
liquid filling line

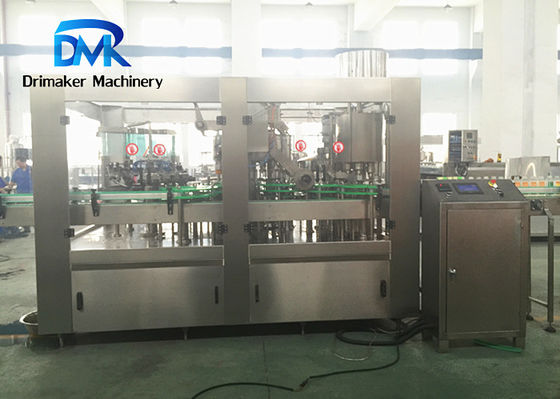

Rinsing / Filling / Aluminum / Foil Cutting / Hot Sealing 4 In 1 Machine
Liquid bottling machine description:
The 12-12-1-12 type integrated bottle rinser, filler, aluminum lid cutting and sealing and screw capping together, as one unit motor is driven though the worm reducer-gear wheel to run synchronously. The advantages include high automatization, compact structure, fine performance, convenient operating, safety and frequency conversion changeable capacity, etc. It’s a technical advances and capability excellent filling equipment beverage, milk, juice etc. The equipment suits round or square PP bottles’ filling and capping. For different size bottles, we only need to change less bottle mould alteration parts and adjust the level position partly, then could meet the client’s requirements.
The filling machine of milk beverage aluminum foil cover has the characteristics of compact structure, high automation, easy to use, simple maintenance and high production efficiency.
Liquid bottling machine features:
|1||The equipment is equipped with international famous brands.|
|2||The parts in contact with materials are made of 304 stainless steel and equipped with CIP cleaning device|
|3||High quality filling, high filling accuracy.|
|4||Perfect hot filling temperature control system.|
|5||It has the function of no bottle filling and no bottle feeding.|
Liquid bottling machine parameters:
Liquid bottling machine details description:
1. Bottle washing: screw bottle feeding and rotary bottle washing.
2. Filling: the piston is filled quantitatively. Materials will be pumped through the reciprocating movement of the cylinder. According to the high cleaning requirements of protein beverage, equipped with CIP cleaning device, the filling cylinder, valve and pipeline and other parts in contact with materials for cleaning.
3. Aluminum foil molding: aluminum foil molding through the aluminum foil capping machine will roll the film into a cap and wear the cap on the bottle.
4. Sealing: heat seal the aluminum foil on the bottle through the thermal shrinkage part of the bottle to achieve sealing function. Each bottle has a temperature control adjustment, according to the thickness of the aluminum foil and the actual use, the heat sealing temperature can be adjusted.
For more information please contact us!
