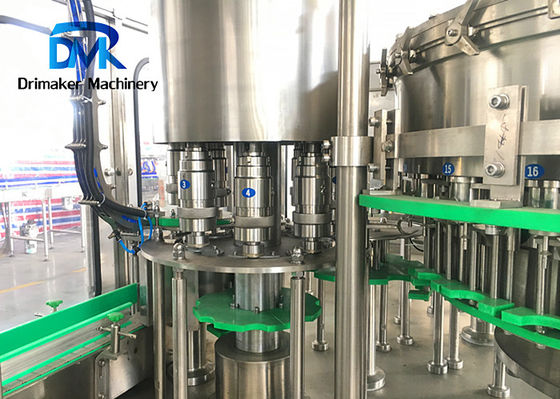

Carbonated Drink Soda Bottling Machine For Beverage Chemical Medical

Carbonated Drink Soda Bottling Machine For Beverage Chemical Medical

Carbonated Drink Soda Bottling Machine For Beverage  Chemical  Medical
Carbonated Drink Soda Bottling Machine For Beverage  Chemical  Medical
Carbonated Drink Soda Bottling Machine For Beverage  Chemical  Medical
Product Details:
Place of Origin: Zhangjiagang city
Brand Name: DMK
Model Number: DCGF32-32-10
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export packing
Delivery Time: 50 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets per year
Contact Now
Detailed Product Description
Name: Soft Drinks Filling Machine Capacity: 9000-11000 Bottles Per Hour(500ml Bottle)
Material: Stainless Steel Power: 5.6KW
Weight: 5500KG Size: (L*W*H)3600*2500*2400mm
Function: Rinsing Filling Capping 3 In 1 Control: PLC+Touch Screen
High Light:

carbonated soft drink filling machine


soda filling and capping machine

Touch Screen ControlCarbonated Drink Soda Bottling Machine For Beverage / Chemical / Medical

Soda bottling machine description:

Combined with foreign advanced technology design and yesrs experience in filling machine field, this washing filling capping 3 in 1 monoblock machine is suitable for small beverage production company. Empty bottle enters into this machine by air conveyor automatically, after water rinsing, beverage filling and cap 3 steps, finsihed carbonated drink will be delivered out by product conveyor, then these products will get into next processing equipment.

Soda bottling machine advantages:

1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.

2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..

3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.

5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.

6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, Siemens.

Soda bottling machine parameters:


Item    DCGF8-8-3   DCGF12-12-5  DCGF18-18-6  DCGF24-24-8 DCGF32-32-10 DCGF40-40-12 DCGF50-50-15

bottles per hour

1500-2000 2000-3000 4000-5000 7000-8000 9000-11000 12000-14000 15000-16000

Suitable bottle


Filling temperature


Machine weight

2000 3000 3500 4500 5500 8000 9000

Machine size
L*W*H (mm)













Soda bottling machine details description:

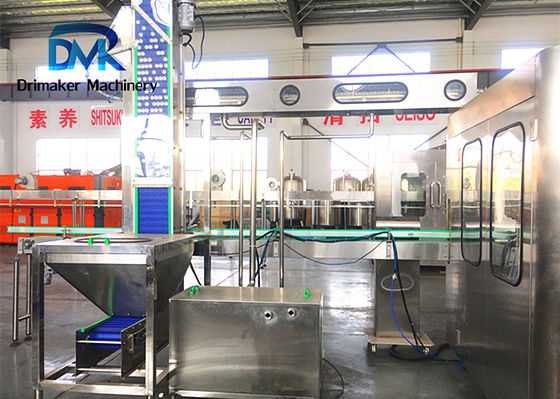

Capping part:

The cap screwing part will screw the cap arranged by the cap unscrambler onto the bottle after filling, and send it to the following process by the conveyor chain.


The capping machine drives the turntable to rotate through the reducer. Remove the cap from the hopper through the outlet of the cap under the action of centrifugal force.


At the exit, there is a reverse cap separation device. When the reverse cap passes by, the cap will automatically fall into the return pipe and automatically blow the reverse cap into the hopper through the wind. Only the positive cap can enter the slide smoothly.


The cap quantity in the hopper is automatically detected by photoelectric switch to control the cap feeder, so as to ensure the ideal effect of the cap feeding and screwing.


When the positive cap into the slide can be smoothly into the feeding cap plate, in order to prevent accidents, at the same time on the slide is configured with a backcover dial, to ensure that the cap into the feeding cap plate is correct, on the slide is also configured with a pair of photoelectric switches, when the detection of no cap, immediately stop the host.


Carbonated Drink Soda Bottling Machine For Beverage  Chemical  Medical 0
