High Efficiency Mango Juice Bottling Machine Stainless Steel Material

High Efficiency Mango Juice Bottling Machine Stainless Steel Material

  • High Efficiency  Mango Juice Bottling Machine Stainless Steel Material
  • High Efficiency  Mango Juice Bottling Machine Stainless Steel Material
High Efficiency  Mango Juice Bottling Machine Stainless Steel Material
Product Details:
Place of Origin: Zhangjiagang city
Brand Name: DMK
Model Number: RCGF8-8-3
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export packing
Delivery Time: 30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets per year
Contact Now
Detailed Product Description
Name: Juice Bottling Machine Capacity: 1500-2000 Bottles Per Hour(500ml Bottle)
Material: Stainless Steel Power: 3.1KW
Filling Type: High Temperature Filling Size: (L*W*H)1900*1600*2400mm
Function: Rinsing Filling Capping 3 In 1 Filling Head: 8 Heads
High Light:

beverage production equipment


hot liquid filling machine

Automatic 2000 Bottles Per Hour Juice Bottling Machine Hot Filling Machine


Equipment description:


RCGF8-8-3 juice bottling machine has 3 working positions: rinsing part, filling part and capping part. It’s mainly used to empty bottle rinsing, juice filling and cap screwing. This machine is used for fruit juice production continuously. This hot fruit juice filing equipment uses bottle neck holding transmission technology to realize automatic bottle rinsing, juice filling and cap screwing.


If customer wants to fill fruit pulp into the bottle together, we can also add one more step fruit pulp filling into the machine, to satisfy different customer demands.


Equipment parameters:


Item                 RCGF8-8-3   RCGF12-12-6  RCGF18-18-6  RCGF24-24-8  RCGF32-32-10


bottles per hour

1500-2000 2000-3000 4000-5000 7000-8000 9000-11000

Suitable bottle




Filling temperature


Machine weight


1500 2500 3500 4500 5000

Machine size

L*W*H (mm)

























Product features:


1. It employs single cavity plunger type of fixing filling volume technique and equipped with perfect temperature control system


2. It equipps reverse-flow system to make sure the filling quality, which can avoid the steam effect from high temperature juice


3. Automatic cleaning system is equipped, it can connect to CIP cleaning system directly to clean the filling tank and valve, which is good for machine service life.


4. Each machine element that contacts with the liquid is made of high quality stainless steel and food-grade rubber.


5. Centralized lubricating oil for easy maintenance and maintenance.


Details description:


No Item Detail
1 Bottle inlet

This machine has two types empty bottle feeding way, first one, filling machine can be directly connected to automatic bottle blowing machien with air conveyor, then bottles will be sent to filling machine working position automatically without people touching. Second, people can collect empty bottles first, then feed the empty bottle to air conveyor part of filling machine, we will provide bottle feeding table for more covenient

operation, we will suggest good way according to customer situation and demands.

2 Bottle rinsing

Bottles rinsing part use stainless steel clamp to hold the empty bottle neck, after bottle get into rinsing part, bottles will be turned 180 degree, which means bottle mouth face to the filling machine working table. Then purifies water will be spray into bottle inside to wash it.

If customer have special use for the product, we can also add more washing steps, like hot alkaline water rinsing, sterilizing

water rinsing, to make the washing effect.

3 Bottle filling

This machine use high temperature filling, filling tenperature is around 85-92℃, all liquid contact parts is able to to withstand high


Machine equips with liquid reflux system, to deal with the steam effect from high temperature liquid. which is suitabel for tea, hot

filling of fruit meat-containing juice, fruit juice, flavored milk, functional beverages, drinking water and other beverages.

4 Screw capping

Screw capping heads and the slide cover linked as a one body, when it move along with the main shaft, the gear of the screw

capping shaft will gear with inner tooth ring through idler gear to make it rotate, then screw down the cap, if exceed the stated

torque (suction of the magnetic pillar), the slide cover and machinery body will move, the capping cover will not move, which can prevent bottles or caps damaging.

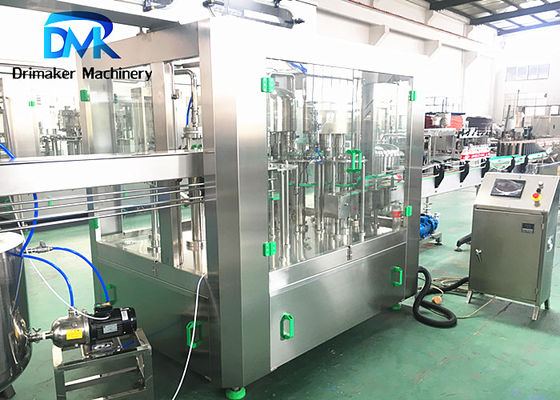

High Efficiency  Mango Juice Bottling Machine Stainless Steel Material 0
