Drimaker Machinery, Your Drink Manufacturer!
Sales & Support:

|
| Place of Origin: | Zhangjiagang city |
| Brand Name: | DMK |
| Model Number: | DCGF24-24-8 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export packing |
| Delivery Time: | 40 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 sets per year |
| Name: | Soda Bottling Machine | Capacity: | 7000-8000 Bottles Per Hour(500ml Bottle) |
|---|---|---|---|
| Filling Type: | Isobaric Filling | Application: | Soda Drink, Carbonated Drink, Soft Drinks |
| Control: | PLC + Touch Screen | Weight: | 4500KG |
| Size: | L*W*H 3.1*2.2*2.4M | Power: | 3800W |
| High Light: | carbonated soft drink filling machine,soda water filling machine |
||

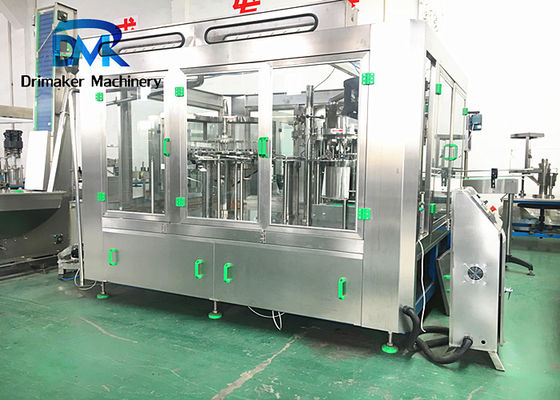

8000 BPH Gas Beverage Plastic Bottle Soda Bottling Machine Co2 Mixing Drinks
Soda bottling machine description:
| No | Item | Details |
| 1 | Machine structure | Isobaric pressure,balanced pressure. |
| 2 | Filling type | 3-in-1 monoblock, rinsing, filling, and capping. |
| 3 | Bottle volume | 200ml-2000ml,if larger than 2L,the machine need to be expanded and special designed.The cost will be more expensive than normal size. |
| 4 | Capacity |
7000-8000 bottles per hour calculated as 500ml pet bottle. 4000-5000 bottles per hour based on 1000ml pet bottle; If you want to fill different volume bottle in one machine,please make sure that different have same bottle mouth diamater, which means they use same cap. |
| 5 | Information | We also produce glass bottle carbonated beverage filling machine, they use different machine, so we need to make sure the customer demands before manufacturing. |
Soda bottling machine features:
Carbonated drink filling machine is applicable for carbonated drink filled in plastic bottles and capped with plastic caps, with optional capacity from 1000BPH to 20000+BPH. It is easy to change the shape of bottles, which can be done by changing the thumb wheel without adjusting the height of the machine. This machine adopts suspensory transmission gear, which can be easily upkeep and be repaired.The machine case and the parts contacting with the materials are made of stainless steel which ensures the good external look and easy washing. It uses frequency changer to conrtol the main machine motor. And it has an output number indicating function which is easy to control the adjustment of the output.
Soda bottling machine parameters:
| Item | DCGF12-12-5 | DCGF18-18-6 | DCGF24-24-8 | DCGF32-32-10 |
|
Capacity |
2000-3000 | 4000-5000 | 7000-8000 | 9000-11000 |
|
Suitable bottle |
50-90mm |
|||
|
Filling temperature |
0℃～4℃ |
|||
|
Machine weight |
3000 | 3500 | 4500 | 5500 |
|
Machine size |
2400*1600 |
2400*1850 |
3100*2200 |
3600*2500 *2400 |
Characteristic and configuration:
| No | Item | Specification |
| Characteristics | ||
| 1 | Model | DCGF 24-24-8 |
| 2 | Capacity | 7000-8000BPH(calculated as 500ml bottle) |
| 5 | Filling precision | ≤±5mm |
| Configuration (Also adjustable accoridng to customer demands) | ||
| 1 | PLC | Mitsubishi from Japan |
| 2 | Frequency inverter | Mitsubishi from Japan |
| 3 | Touch screen | Weinview from Taiwan |
| 4 | Photoelectric | Omron from Japan |
| 5 | Air switch | Omron from Japan |
| 6 | Material contacting liquid | High quality stainless steel |
Thanks!
For more information please contact us!
Contact Person: Mr. Jerry Wu
Tel: 86-18606249106
