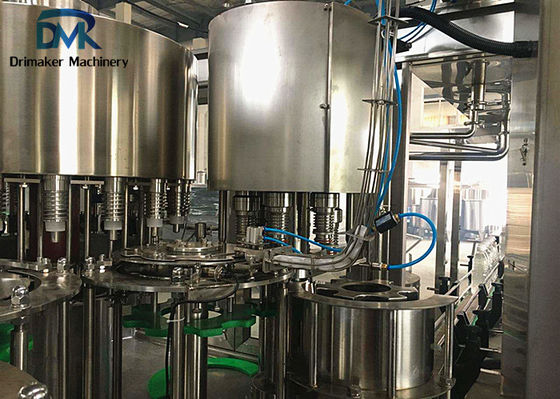

Industrial Stainless Steel Bottling Plant Equipment 1000bph - 24000bph

Industrial Stainless Steel Bottling Plant Equipment 1000bph - 24000bph

  • Industrial Stainless Steel Bottling Plant Equipment 1000bph - 24000bph
  • Industrial Stainless Steel Bottling Plant Equipment 1000bph - 24000bph
  • Industrial Stainless Steel Bottling Plant Equipment 1000bph - 24000bph
Industrial Stainless Steel Bottling Plant Equipment 1000bph - 24000bph
Product Details:
Place of Origin: Zhangjiagang city
Brand Name: DMK
Model Number: CGF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 9,000-100,000 per set
Packaging Details: Standard export packing
Delivery Time: 60 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets per year
Contact Now
Detailed Product Description
Name: Bottle Water Bottling Machine Capacity: 1000-24000 Bottles Per Hour(500ml Bottle)
Material: Stainless Steel Automatic Grade: Fully Automatic
Rinsing Head: 8-50 Heads Filling Head: 8-50 Heads
Capping Head: 3-15 Heads Capping: Plastic Screw Cap
High Light:

water bottle plant machine


bottled water equipment

1000bph - 24000bph 250ml-1500ml Pet Bottle Water Bottling Machine


Water bottling machine feature:


The water filling machine is used in filling mineral water, purified water, still water etc in bottles made of polyester and plastics. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles. The washing, filling and capping 3 kinds of jobs can be finished by one machine automatically, by 3-in-1 monoblock, the bottle goes through rinsing, filling and capping with little abrasion, and the transferring is stable, bottle changing is easier. The full line water filling includes: Washing-filling-capping 3 in 1 machine, lamp checker, label shrinking machine, inkjet printer, hot shrink film packer/carton packing machine and conveyors. It is a full automatic production line. The water filling operation is faster and more stable because the micro gravity filling operation of the new type is adopted. There the output and benefit of the machine is higher than the machinery of the same specifications. The advanced OMRON programmed controller (PLC) is used to control the machine to run automatically while a transducer is used in the bottle -entering chains to adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably.Spares contact with the liquid are all of excellent stainless steel or food level plastic. The electric system is of international brand and achieves the national food sanitary standard.


Water bottling machine details:


Capacity: 1,000-24,000 bottles per hour

Bottle Type: PET/PP/PE/HDPE Plastic Bottle

Bottle Shape: Round/Square/Rectangular/Irregular

Model: CGF 3 in 1 Monoblock

Place of Origin: Zhangjiagang city, China near Shanghai

Application: Pure water/Mineral water/Drinking water/Non-carbonated water/Beverage/Codiment etc

Bottle Type: 200ml to 2L

Cap Type: Screw cap, Pressing Cap, Sport cap

Full line including: Bottle Sorter, Rinser-Filler-Capper 3 in 1 machine, Lamp Checker, Labeling Machine, Film Shrink Machine/Carton Packing Machine


Water bottling machine parameters:


Item                 CGF8-8-3    CGF12-12-5  CGF18-18-6  CGF24-24-8  CGF32-32-10


bottles per hour

2000-3000 3000-4000 5000-6000 8000-10000 10000-12000

Suitable bottle




Rinsing pressure



Machine weight


1500 2500 3500 4000 5000

Machine size

L*W*H (mm)

























Water bottling machine details description:

Rinsing part
1    Bottle rinsing part adopts compact structure, which ensures running situation.
2    Bottles enter into rinsing part by stare wheel, then clamp will catch bottle automatically.
3 Empty bottle will rotated in 180°semi-circle in the track during clamping moving.
4 Rinsing nozzle will inject purified to clean bottle inside.
Finnling part
1 Water filling tank, main shaft part, bottle holder,filling part and filling valves.
2 With automatic structure, machine can reach the purpose of no bottle no filling, which can save a lot of water.
3 High-precision, high-speed quantitative filling valve, liquid level accurately without loss, to ensure good filling quality.
4 Material contact parts are made of stainless steel, corrosion-resistant, easy to clean
Capping part
1 Cover with efficient management system, a perfect cap feeding and protection device.
2 Capping head adopts constant torque device which cover quality assurance, and will not damage the cap.
3 Tooth profile device is used in choosing caps.
4   There is cap decting device at the bottom of cap slide, which make sure there is no inverse caps.


Competitive Advantage:

Water Filling Machine uses neck handling by grippers bottle transmission. Fully automatic rinsing, filling and capping by PLC control; No bottle no rinse. International brand Electrical components. All product contact parts are made of qualified stainless steel, which wearable, stable with less malfunction.Using starwheel as its drive mechanism, which realize automatically rinsing, filling and capping.


Industrial Stainless Steel Bottling Plant Equipment 1000bph - 24000bph 0Industrial Stainless Steel Bottling Plant Equipment 1000bph - 24000bph 1
