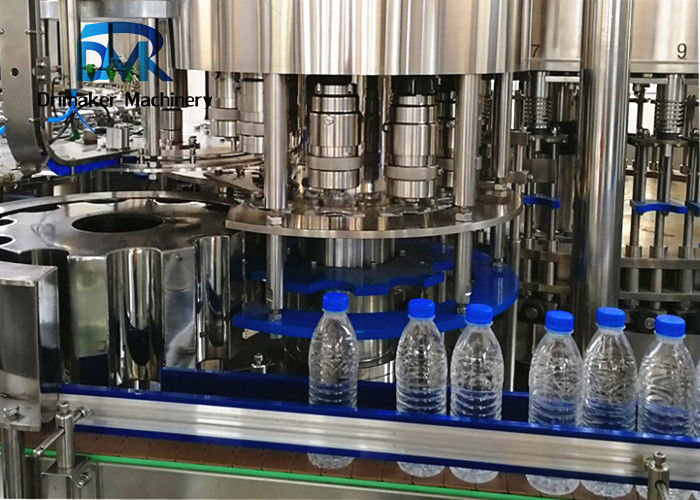

12000 Bph Complete Bottled Water Production Lines 3600x2500x2400 Mm

12000 Bph Complete Bottled Water Production Lines 3600x2500x2400 Mm

  • 12000 Bph Complete Bottled Water Production Lines  3600x2500x2400 Mm
  • 12000 Bph Complete Bottled Water Production Lines  3600x2500x2400 Mm
  • 12000 Bph Complete Bottled Water Production Lines  3600x2500x2400 Mm
12000 Bph Complete Bottled Water Production Lines  3600x2500x2400 Mm
Product Details:
Place of Origin: Zhangjiagang city
Brand Name: DMK
Model Number: CGF32-32-10
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export packing
Delivery Time: 35 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets per year
Contact Now
Detailed Product Description
Name: Bottle Water Bottling Machine Capacity: 10000-12000 Bottles Per Hour(500ml Bottle)
Material: Stainless Steel Power: 5.6KW
Weight: 5000KG Size: (L*W*H)3600*2500*2400mm
Automatic Grade: Fully Automatic Rinsing Head: 32 Heads
Filling Head: 32 Heads Capping Head: 10 Heads
High Light:

water bottle plant machine


bottled water equipment

12000 BPH Mineral Water Bottle Packing Machine Pet Bottle Water Bottling Machine


Water bottling machine specification:


Machine Model CGF32-32-10
32 pcs rinsing working position, 32 pcs filling working position, 10 pcs capping working position.
Machine capacity(bottle/hour) :10000-12000BPH (500ml)
Suitable bottle diameter(mm): φ=50-100 H=170 330-1500ml
Spraying pressure: 2~3 Mpa
Overall dimension(LxWxH): 3600x2500x2400mm
Weight: 5000kg
Electronic control keys: Mitsubishi PLC, Mitsubishi inverter...etc and other international electric parts brands.


Water bottling machine features:

No Detail
1 This machine is suitable for various types round, square, irregular shape PET bottle with plastic screw cap.
2 Our machine filling volume is from 200ml-2000ml, and filling volume can be adjustable accoridng to customer requirements.
3 If customer have more than 1 types bottle volume with same botle mouth, our machine can reach this purpose.
4 Structure of equipment is stainless steel, equipped with transparent glass door, customer can see the machine running situation without opening the gate, which is safe for operator.
5 Bottle moves by bottle neck, we don't need bottle bottom holder for each working position, which is good for running speed, and when customer want to change the bottle with differet bottle volume and heigh, only need to change the bottle body dribing plate is ok, no need to adjust height of other parts.


Water bottling machineparameters:


Item                 CGF8-8-3    CGF12-12-5  CGF18-18-6  CGF24-24-8  CGF32-32-10


bottles per hour

2000-3000 3000-4000 5000-6000 8000-10000 10000-12000

Suitable bottle




Rinsing pressure



Machine weight


1500 2500 3500 4000 5000

Machine size

L*W*H (mm)

























Details description:

Rinsing part
1    Bottle rinsing part adopts compact structure, which ensures running situation.
2    Bottles enter into rinsing part by stare wheel, then clamp will catch bottle automatically.
3 Empty bottle will rotated in 180°semi-circle in the track during clamping moving.
4 Rinsing nozzle will inject purified to clean bottle inside.
Finnling part
1 Water filling tank, main shaft part, bottle holder,filling part and filling valves.
2 With automatic structure, machine can reach the purpose of no bottle no filling, which can save a lot of water.
3 High-precision, high-speed quantitative filling valve, liquid level accurately without loss, to ensure good filling quality.
4 Material contact parts are made of stainless steel, corrosion-resistant, easy to clean
Capping part
1 Cover with efficient management system, a perfect cap feeding and protection device.
2 Capping head adopts constant torque device which cover quality assurance, and will not damage the cap.
3 Tooth profile device is used in choosing caps.
4   There is cap decting device at the bottom of cap slide, which make sure there is no inverse caps.


12000 Bph Complete Bottled Water Production Lines  3600x2500x2400 Mm 012000 Bph Complete Bottled Water Production Lines  3600x2500x2400 Mm 1



For more information please contact us!
