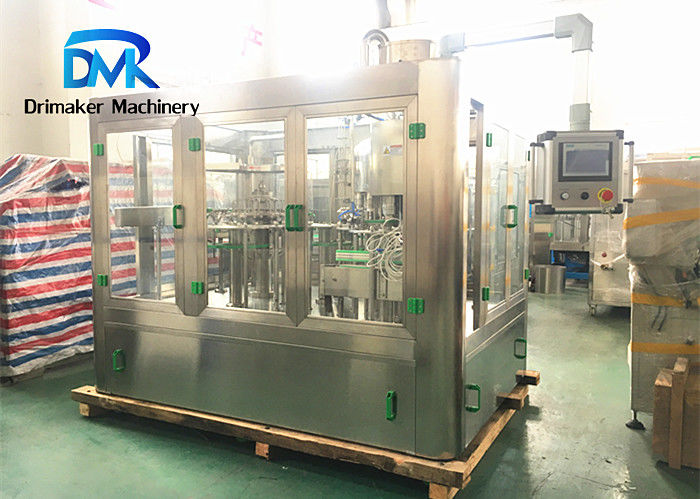

24 Filling Heads Water Bottling Machine Automatic Electric Driven Compact Structure

24 Filling Heads Water Bottling Machine Automatic Electric Driven Compact Structure

  • 24 Filling Heads Water Bottling Machine Automatic Electric Driven  Compact Structure
  • 24 Filling Heads Water Bottling Machine Automatic Electric Driven  Compact Structure
  • 24 Filling Heads Water Bottling Machine Automatic Electric Driven  Compact Structure
24 Filling Heads Water Bottling Machine Automatic Electric Driven  Compact Structure
Product Details:
Place of Origin: Zhangjiagang city
Brand Name: DMK
Model Number: CGF24-24-8
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export packing
Delivery Time: 40 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets per year
Contact Now
Detailed Product Description
Name: Water Bottling Machine Capacity: 8000-10000 Bottles Per Hour(500ml Bottle)
Material: Stainless Steel Power: 3.8KW
Weight: 4000KG Size: (L*W*H)3100*2200*2400mm
Function: Rinsing Filling Capping 3 In 1 Suitable Bottle: Round/Square/Irregular Bottle
High Light:

water production machine

,

water bottle plant machine

24 Filling Heads Water Bottling Machine Automatic Electric Driven Production Line



Water bottling machine description:



This machine is the introduction of foreign advanced technology design andmanufacture of rinsing filling capping 3 in 1 monoblock machine. It can finish automatic bottle rinsing with water, automatic bottle filling with water, and automatic cap screwing.



Water bottling machine features:



1. The clamp for rinsing bottle is the introduction from Italian technology, with high accuracy for manufacturing, accurately filling level and small loss of fluid, especially suitable for high speed filling;

2. Screw cap system is introduction of France technology manufacturing, using magnetic screw cap, adjustable torque, a synchronous take cover-screw cover device, cover loss is small.

3. All water contact parts material use high quality stainless steel, which ensures the machine long term running situation.

4. Equipment structure is more compact, can save more plant space for customers.

5. Centralized lubricating oil for easy maintenance and maintenance.



Water bottling machine parameters:



Item                 CGF8-8-3    CGF12-12-5  CGF18-18-6  CGF24-24-8  CGF32-32-10 CGF40-40-12 CGF50-50-15

Capacity

bottles per hour

2000-3000 3000-4000 5000-6000 8000-10000 10000-12000 14000-16000 20000-24000

Suitable bottle

diameter

50-90mm

200-2000ml

Rinsing pressure

kg/cm2

2-3

Machine weight

KG

1500 2500 3500 4000 5000 7000 9000

Machine size

L*W*H (mm)

1900*1600

*2400

2400*1600

*2400

2400*1830

*2400

3100*2200

*2400

3600*2500

*2400

4000*2800

*2400

5400*4200

*2400



































Water bottling machine details description:



No Item Detail
1 Bottle rinsing

Bottle-washing machine with the spring structure: when empty bottles are automatically rotated in a 180°semi-circle on the

track, it washes the bottle insidein a complete and efficient way.

Rinsing water is pumped into every filling nozzle, make sure the water can wash the bottle inside well.

2 Bottle filling

This system is constituted with filling tank, main shaft part, bottle holding ascending and falling part, filling valves.

No bottle no filling, save water.

Micro negative pressure filling, more efficient filling way.

All water contact parts are made of high quality stainless steel.

Liquid level stabilizing device, help control water level.

3 Capping Advanced cap-tightener structure: magnetic force is used in cap-tightener. Torque is adjusted in line with various caps, which is suitable for all kinds of plastic caps. Tooth profile device is used in choosing caps. Checking device is set at the bottom slide. We guarantee no inverse caps, and no bottle no caps.

24 Filling Heads Water Bottling Machine Automatic Electric Driven  Compact Structure 024 Filling Heads Water Bottling Machine Automatic Electric Driven  Compact Structure 1
