Beverage Glass Bottle Filling Machine 8000bph Glass Bottling Machine

Beverage Glass Bottle Filling Machine 8000bph Glass Bottling Machine

  • Beverage Glass Bottle Filling Machine 8000bph Glass Bottling Machine
  • Beverage Glass Bottle Filling Machine 8000bph Glass Bottling Machine
  • Beverage Glass Bottle Filling Machine 8000bph Glass Bottling Machine
Beverage Glass Bottle Filling Machine 8000bph Glass Bottling Machine
Product Details:
Place of Origin: Zhangjiagang city
Brand Name: DMK
Model Number: BDCGF32-32-10
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export packing
Delivery Time: 60 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets per year
Contact Now
Detailed Product Description
Name: Glass Bottle Filling Machine Capacity: 7000-8000 Bottles Per Hour(500ml Bottle)
Product: Fresh Beer, Draft Beer, Csoft Drinks Suitable Bottle Diameter: Φ60-100mm(can Be Customized)
Suitable Bottle Height: Φ130-310mm(can Be Customized) Size: (L*W*H)3600*2500*2400mm
PLC Brand: Mitsubishi Rinsing Head: 32 Heads
High Light:

milk glass bottle packing machine

,

wine production line

Co2 Beverage Production Plant Use Glass Bottle Filling Machine 8000BPH



Glass bottle filling machine description:



This machine is designed and manufactured accoriding to foreign advanced technology, with years manufacuring and upgrading, our company produce this washing filling capping 3 in 1 monoblock machine for glass bottle wine. Rinsing clamp for glass bottle use Italian technology, manufacturing accuracy is very high, with high quality filling valve, our machine will control liquid level well with small fluid loss;This machine adopts aluminum cap capping system, tightly cover the bottle mouth with cap by seaming knife, the sealing effect is beautiful and the sealing property is good.

It is the ideal equipment for fresh beer, draft beer, beer and gas beverage manufacturers



Glass bottle filling machine features:



No Detail
1 The rotary wheel adopts the transmission technology of clamping bottle body, and each bottle working position is processed according to the customer's bottle size.
2 The machine adopts vibrating caps arrangement device, which automatically arranges caps into rows, and the wear of caps can be neglected. The cap tunnel is equipped with a cap detection device to control the opening and closing of the lid cap loading system.
3 The machine movement is automatically controlled by PLC, and the touch screen is combined with the solid button to realize the machine control.
4 Abnormal information such as the failure position, bottle blockage, missing cap, and normal production speed, production volume technology will be immediately displayed on the touch screen.



Glass bottle filling machine parameters:



Item                 BDCGF14-12-6  BDCGF18-18-6  BDCGF24-24-8  BDCGF32-32-10 BDCGF40-40-12

Capacity

bottles per hour

2000-2500 3000-4000 5000-6000 7000-8000 10000-12000

Suitable bottle

diameter

50-90mm

200-2000ml

Filling temperature

2-3

Machine weight

KG

2500 3500 4000 5000 8000

Machine size

L*W*H (mm)

2400*1600

*2400

2400*1850

*2400

3100*2200

*2400

3600*2500

*2400

3900*2700

*2400



Glass bottle filling machine details:

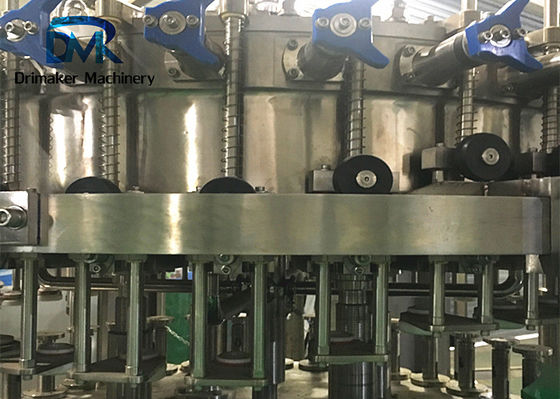

The machine adopts elastic and powerful manipulator to catch, flip, wash, flip reset, bottle outlet, etc., so as to realize automatic bottle washing without human operation. The mechanical bottle holder is opened symmetrically, which can be modified according to the opening of different diameters. In and out of the bottle using CNC machining center from the processing of the screw and rotary, bottles by the screw bottle, orderly into the station, to avoid squeeze bottles, stuck bottles, broken bottles and other problems. The washing effect is stable and efficient. With the movement of the bottle, the tracking nozzle keeps washing with high efficiency and good washing effect. The bottle clamping manipulator developed by the introduction of foreign advanced technology has the characteristics of accurate positioning and flexible turnover.



Beverage Glass Bottle Filling Machine 8000bph Glass Bottling Machine 0Beverage Glass Bottle Filling Machine 8000bph Glass Bottling Machine 1
