|Place of Origin:||Zhangjiagang city|
|Minimum Order Quantity:||1 set|
|Packaging Details:||Standard export packing|
|Delivery Time:||30 working days|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||100 sets per year|
|Name:||Glass Bottle Filling Machine||Capacity:||4000-5000 Bottles Per Hour(500ml Bottle)|
|Product:||Vodka, Wine Water And Other Beverage Without Gas||Suitable Bottle Diameter:||Φ60-100mm(can Be Customized)|
|Suitable Bottle Height:||Φ130-310mm(can Be Customized)||Size:||(L*W*H)2400*1850*2400mm|
|PLC Brand:||Mitsubishi||Rinsing Head:||18 Heads|
milk glass bottle packing machine,
wine production line
Full-Automatic Small-Sized Red Wine Yellow Wine Rice Wine Production Line
Glass bottle filling machine description:
This machine is designed and manufactured accoriding to foreign advanced technology, with years manufacuring and upgrading, our company produce this washing filling capping 3 in 1 monoblock machine for glass bottle wine. Rinsing clamp for glass bottle use Italian technology, manufacturing accuracy is very high, with high quality filling valve, our machine will control liquid level well with small fluid loss;This machine adopts aluminum cap capping system, tightly cover the bottle mouth with cap by seaming knife, the sealing effect is beautiful and the sealing property is good.
Glass bottle filling machine features:
1. In order to make operator can control the machine more easily, we adopts touch screen from Taiwan brand to implement the visualization operation, operator can directly control every part of machine, like filling valve, vacuum pump, rinsing nozzle, cap loading system. Besides, machine running speed is also easily controled with a rotary button, the main motor rotary speed can be adjusted with that small button.
2. When bottle arrive filling working position, there will be prodtcrion device to make bottle fixed, which is good for filling. Different from plastic bottle, there will be bottle holder under the bottle, and bottle body fixing device to make bottle in right filling position.
3. In order to make product look beautiful, and also avoid liquid loss, we adopts vacuum system to help control the liquid level, after filling finish, the vacuum pipe will suck back some liquid if there is too much liquid in the bottle, liquid level can be adjusted accoridng to customer demands.
4. Pneumatic components, electric parts, and other sensor components we all use internation famous brand, which can make sure the machine running situation.
Glass bottle filling machine parameters:
bottles per hour
Glass bottle filling machine details:
1. SUS304 is widely used in machine, parts contacting liquid like rinsing clamp, filling head, capping head are all made of stainless steel. Other contacting parts like sealing ring, it should be good for airtightness, we use food grade material.
2. This machine adopts PLC system(Mitsubishi brand) to control every working steps automatically, what singal means what function are all designed by our engineer with rich experience. Frequency inverter(Mitsubishi brand) realize the speed control of whole machine.

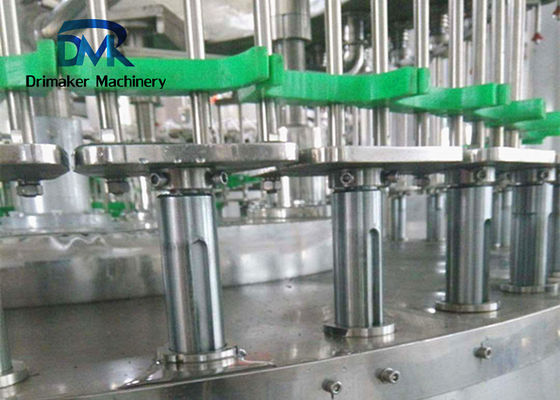

3. Bottle will be lifted up when it arrive filling position, then bottle mouth will open the filling valve to let liquid get into bottle automatically, this device helps control the liquid filling, no bottle no filling, avoid liquid loss.
4. Advanced aluminym cap seaming system is used in this machine, the seaming knife is adjusted accoridng to customer's bottle and cap, to make the cap screw more beautiful and stable.
For more information please contact us!
