Roud Square Irregular Glass Milk Bottle Filling Machine 2000-3000 Bottles Per Hour

I'm Online Chat Now

Roud Square Irregular Glass Milk Bottle Filling Machine 2000-3000 Bottles Per Hour

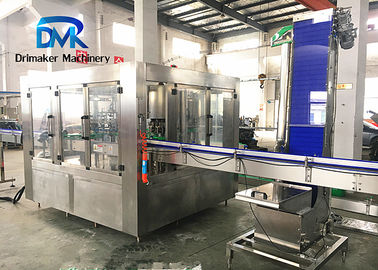

Large Image :  Roud Square Irregular Glass Milk Bottle Filling Machine 2000-3000 Bottles Per Hour

Product Details:

Place of Origin: Zhangjiagang city
Brand Name: DMK
Model Number: BDCGF12-12-6

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export packing
Delivery Time: 30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets per year
Detailed Product Description
Name: Glass Bottle Filling Machine Capacity: 2000-3000 Bottles Per Hour(500ml Bottle)
Product: Vodka, Wine Water And Other Beverage Without Gas Power: 3.1KW
Weight: 2500KG Size: (L*W*H)2400*1600*2400mm
PLC Brand: Mitsubishi Rinsing Head: 12 Heads
High Light:

glass bottling machine


milk glass bottle packing machine


Mitsubishi PLC Glass Bottle Filling Machine

Vodka Wine Filling Machine Roud Square Irregular Glass Bottle Production System


Glass bottle filling machine description:


This machine is designed and manufactured accoriding to foreign advanced technology, with years manufacuring and upgrading, our company produce this washing filling capping 3 in 1 monoblock machine for glass bottle wine. Rinsing clamp for glass bottle use Italian technology, manufacturing accuracy is very high, with high quality filling valve, our machine will control liquid level well with small fluid loss;This machine adopts aluminum cap capping system, tightly cover the bottle mouth with cap by seaming knife, the sealing effect is beautiful and the sealing property is good.


Glass bottle filling machine features:


No Detail
1 During filling, the liquid flows down the bottle inside surface, effectively controlling the foam caused by the impact of the liquid during filling and preventing the overflow of the liquid.
2 This machine variable frequency speed regulating filling speed is fast equipped with overload protection and elastic bottle holding device to reduce bottle damage.

The main sealing parts are made of food-grade silica gel, and the main parts are made of 304 stainless steel which conforms to the food hygiene standards.

4 Equipment structure is more compact, can save more plant space for customers.
5 Applicable to a wide range of bottle height, adjustable between 150-350 mm (if customer bottle isout of range can be customized)


Glass bottle filling machine parameters:


Item                 BCGF12-12-6  BCGF18-18-6  BCGF24-24-8  BCGF32-32-10 BCGF40-40-12


bottles per hour

2000-3000 4000-5000 7000-8000 9000-10000 11000-13000

Suitable bottle




Filling temperature



Machine weight


2500 3500 4000 5000 8000

Machine size

L*W*H (mm)












Glass bottle filling machine details description:


First step is ottle inlet, it use bottle feeding screw to make empty glass bottle enter into working position one by one smoothly. The rotary speed is suitbale for machine running speed, and this feeding screw will creat the necessary space between two bottles. Second part is bottle rinsing, bottle rinsing clamp use high quality material, to hold the most circle of bottle neck of empty bottle, make sure empty bottle is in  stable situation during rinsing area. when empty bottles are automatically rotated in a 180°semi-circle on the track, it washes the bottle inside in a complete and efficient way. Third part is bottle filling, it adopts micro negative pressure filling , to fill wine into glass bottle, and the motor, pump of machine adopts explosion-proof type to make sure machine running situation.Forth step is capping, it use aluminun cap seaming system, adopting 304 stainless steel material, beautiful and stable thread.

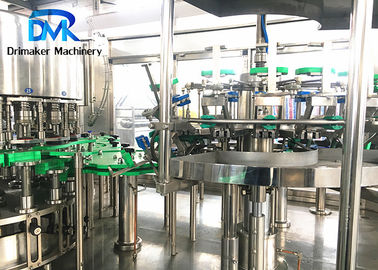

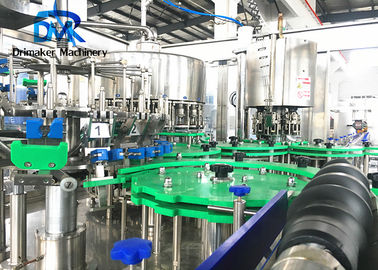

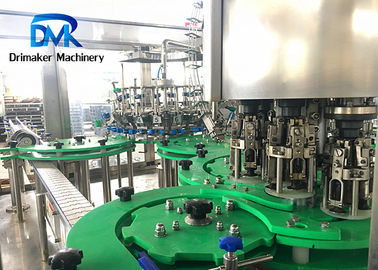

Roud Square Irregular Glass Milk Bottle Filling Machine 2000-3000 Bottles Per Hour 0Roud Square Irregular Glass Milk Bottle Filling Machine 2000-3000 Bottles Per Hour 1



For more information please contact us!
