High Efficiency Rotary Filling And Sealing Machine Easy Maintenance 3000KG

I'm Online Chat Now

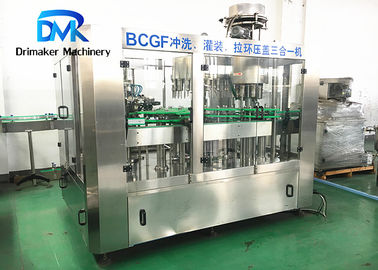

High Efficiency Rotary Filling And Sealing Machine Easy Maintenance 3000KG

High Efficiency Rotary Filling And Sealing Machine Easy Maintenance 3000KG
High Efficiency Rotary Filling And Sealing Machine Easy Maintenance 3000KG High Efficiency Rotary Filling And Sealing Machine Easy Maintenance 3000KG High Efficiency Rotary Filling And Sealing Machine Easy Maintenance 3000KG High Efficiency Rotary Filling And Sealing Machine Easy Maintenance 3000KG

Large Image :  High Efficiency Rotary Filling And Sealing Machine Easy Maintenance 3000KG

Product Details:

Place of Origin: Zhangjiagang city
Brand Name: DMK
Model Number: BDCGF14-12-6

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 20,000-100,000 per set
Packaging Details: Standard export packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets per year
Detailed Product Description
Name: Glass Bottle Beer Filling Machine Capacity: 2000-2500 Bottles Per Hour(500ml Bottle)
Material: Stainless Steel Weight: 3000KG
Size: (L*W*H)2400*1600*2400mm Cap Type: Crown Cap/easy Opening Cap...
Rinsing Head: 14 Pcs Filling Head: 12 Pcs
High Light:

glass bottling machine

,

wine production line

,

Easy Maintenance Glass Bottle Filling Machine

Cola, Sprite, Carbonated Juice Production System / Glass Bottle Filling Machine



Glass bottle filling machine description:



The filling line of small glass bottle beer is used for the production of various carbonated drinks like beer in glass bottles. In one machine to achieve the bottle, filling, sealing. Scientific and reasonable design, beautiful appearance, complete functions, operation. Easy maintenance, high degree of automation. The whole machine adopts the design of suspension operation by the card bottleneck, which makes the whole line operation function more reliable, and overcomes the reason that the machine can't work normally caused by the error of the bottle wall and the bottle height. Easy and quick to change bottle type.



Glass bottle filling machine features:



No Detail

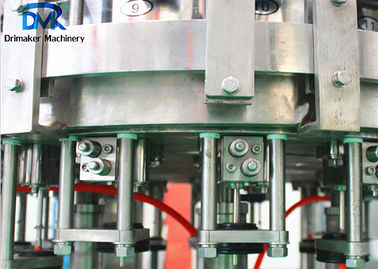

1 The main parts of this machine use high quality stainless steel, liquid contacting parts like filling tank, filling valve, rinsing clamp are all use SUS304, and sealing elements like O type ring, we all adopt food grade material, to make sure machine reach the production standard of every Country.
2

Machine running actions are all controlled by PLC, we use international brand Mitsubishi from Japan(other brand like Siemens, Schneider...can be changable accoridng to customer demands and local regulation.) This PLC can control all steps automatically from bottle rinsing to capping.

3 Machine running speed is also adjustable, we use high quality frequency inverter to control the main motor running speed, and people can use the button on control panel to control the machine running speed easily. Curent production speed and total production amount will also be shown on the touch screen.
4 Filling type is Isobaric filling, it is advanced filling technology for carbonated drink with gas inside, which can make sure the good quality of beverage product.
5

Crown cap sealing part use high quality material, no bottle damage, no cap damage ruring capping period.



Glass bottle filling machine parameters:



Item                 BDCGF14-12-6  BDCGF18-18-6  BDCGF24-24-8  BDCGF32-32-10

Capacity

bottles per hour

2000-2500 3000-4000 5000-6000 7000-8000

Suitable bottle

diameter

50-90mm

200-2000ml

Filling temperature

she

2-3

Machine weight

KG

2500 3500 4000 5000

Machine size

L*W*H (mm)

2400*1600

*2400

2400*1850

*2400

3100*2200

*2400

3600*2500

*2400





Glass bottle filling machine details description:

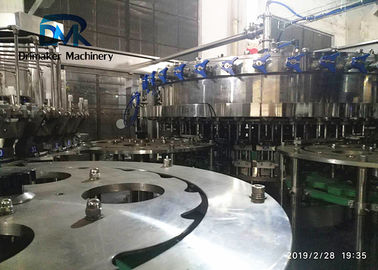

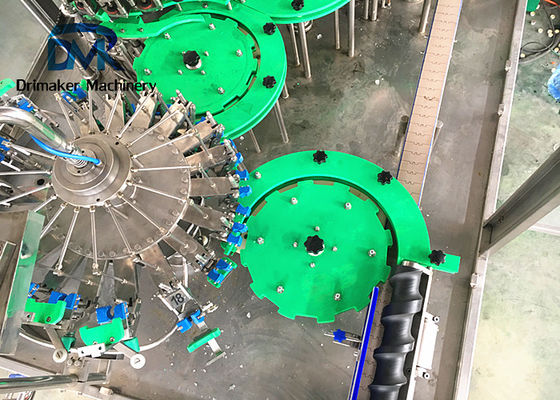

Bottle inlet part use screw inlet device, it can arranging glass enter filling machine working position continously, as the screw rotates, the distance between bottles becomes larger and larger, to make glass bottle get into rinsing part position without crowding. Then bottle will get into rinsing part. Clamp of glass bottle filling machine is larger than PET bottle filling machine, the clamp holding area is also a little different from plastic bottle, it holds the most part of glass bottle neck, becasue glass bottle is much heavier than plastic bottle. After rinsing, bottle will get into filling part, it use isobaric filling principle to control the aire pressure between bottle inside and filling tank. Finally bottle get into capping part after filling. capping head gets crown cap one by one from automatic cap loader.



High Efficiency Rotary Filling And Sealing Machine Easy Maintenance 3000KG 0High Efficiency Rotary Filling And Sealing Machine Easy Maintenance 3000KG 1
