|Place of Origin:||Zhangjiagang city|
|Minimum Order Quantity:||1 set|
|Price:||USD 2,000-100,000 per set|
|Packaging Details:||Standard export packing|
|Delivery Time:||20 working days|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||100 sets per year|
|Name:||Liquid Process Equipment||Capacity:||2000-3500L Per Hour|
|Voltage:||380V/220V 50HZ||Material:||Stainless Steel|
|Regulated Ratio Of Syrup To Water:||1:3-1:6||Gas Content In Beverage(GV):||1.5-2.5|
|Working Pressure Of Storage Tank:||0.2-0.5Mpa||Auxiliary Equipment:||Water Cooling Machine|
cip cleaning system,
water plant machine

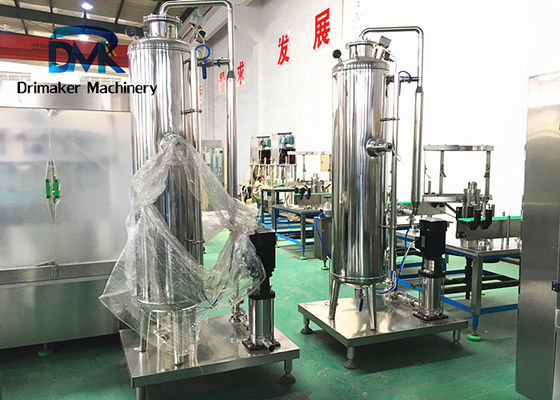

2500 - 3000 L Per Hour Co2 Mixing Machine Liquid Process Equipment
CO2 Mixing machine describtion:
The CO2 mixing machine is designed accoridng to advanced technology at home and abroad. Machine part that contacts liquid are made of low carbon high quality stainless steel, which can meet the requirements of food hygiene in different countries. PLC technology is used to control the pressure and liquid level in the tank. Abnormal situation will immediately alarm, and automatically stop the operation of the device. The machine has compact structure, stable and efficient operation, simple and safe operation, and is an indispensable equipment for beverage production.
Liquid process equipment working process:
|1||Water inlet section||Water passes through the filter, pump and one-way valve and enters the deoxidization tank in atomized form. Atomized room temperature water can easily replace oxygen in the water under vacuum state, and the water that replaces oxygen can better dissolve carbon dioxide and prolong the shelf life of the beverage. Deoxidizing tank water level can be automatically controlled, vacuum can be automatically controlled|
|2||Syrup feeding section||
The syrup enters the syrup tank through the filter, the syrup pump and the one-way valve. The syrup tank and the vacuum water tank communicate with each other to create a vacuum, preventing the air from entering, and the syrup tank level is automatically controlled.
|3||Cooling soda mixing||Deoxidized water and syrup through the proportional valve (proportional valve proportion adjustable) according to the product set proportion, through the high pressure pump into the plate heat exchanger to immediately cool the water and sugar mixture product to 0~3 degrees, after cooling the mixed water through the soda mixer injected carbon dioxide, carbon dioxide dissolved amount adjustable. The carbonated soda is stored in a high pressure insulated storage tank for later entry into the filling machine.|
Liquid process equipment parameters:
1. Model: QHS-3500A.
2. Production output: 2000-3500 L per hour.
3. Regulated ratio of syrup to water: 1:3-1:6.
4. Gas content in beverage(GV): 1.5-2.5.
5. Temperature of chilled water inlet: 0-5℃
6. Beverage dehydration method: Deoxidized by CO2
7. Working pressure of pre-carbinat tank and syrup tank: 0.05-0.08 Mpa
8. Working pressure of storage tank: 0.2-0.5Mpa
9. Power: 1.5KW
10. Dimension(L*W*H)mm: 1100×900×2100mm
11. Weight: About 650KG
Installation and adjustment:
1. The machine can be installed on the suitable flat cement floor with certain bearing capacity according to the requirements of users.
2. Adjust the bracket to keep the base basically level, and lock it with a fixed nut after adjustment.
3. According to the requirements of the machine, connect the syrup pipe (size 25mm), the chilled water pipe (size 25mm), the finished product outlet pipe (size 32mm) and the CO2 inlet pipe (size ￠8~￠10mm) with the stainless steel pipe.
For more information please contact us!
