Place of Origin: | Zhangjiagang city |
Brand Name: | DMK |
Model Number: | DMK-6000 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Packaging Details: | Standard export packing |
Delivery Time: | 75 working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 100 sets per year |
Name: | Bottle Blowing Machine | Capacity: | 5000-6000 Bottles Per Hour(500ml Water Bottle) |
---|---|---|---|
Power: | 72kw/56kw | Weight: | 4000KG+550KG |
Main Machine Size: | (L*W*H)3700*2050*2200mm | Preform Loader Size: | (L*W*H)2000*1350*2550 Mm |
Control: | PLC+Touch Screen | Voltage: | 3Phase 380V /50HZ(can Be Customized) |
High Light: | pet blowing machine,bottle blow molding machine |

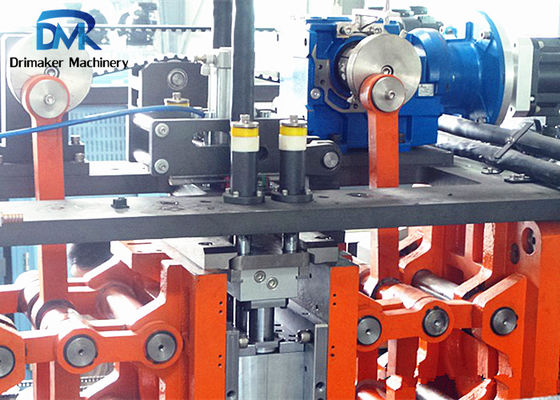

5000-6000 BPH Automatic PET Blow Molding Machine 6 Cavity Bottle Blowing Machine
Bottle blowing machine description:
This machine is automatic PET blower designed and developed with advanced bottle blowing technology at present, the advantages of which can be described as speedy, stable, simple, general purposed and environmental safe. It is mainly applicable in blow molding cold filling and mesothermal filling PET containers for drinking water, beverage, food, daily chemical products, etc.This type machine is fully auto type, which means it can save a lot of labor cost for customer. It equipped with preform feeding system, operator only need to put preforms into the container of preform feeding system, then press the button, preform will feed to blowing machine automatically. Beside, after bottles are produced, they will taken away from machine automatically, no need operator to collect them one by one. Machine can be connocted to filling machine by air conveyor directly, which means no need more people to collect bottle, and feed them to filling machine, also save laboe cost, and no people touching during the bottle feeding area, which is more clean.
Bottle blowing machine features:
1. Through the transparent doors and Windows of the machine for observation, customer can keep track of the production and machine operation;
2. PLC control, screen display, can directly according to the shape of the bottle, the shape of the blank, flexible adjustment of the size of the output parameters;
3. Easy to replace the mold, multi - hole die frame design, with the positioning device, flexible and accurate replacement of the mold;
4. Centralized heating device, uniform heating of billet, good effect of bottle mouth protection, reduce production energy consumption;
Bottle blowing machine parameters:
No | Item | Specifications |
1 | Output(bottles per hour) | 5000-6000(accoridng to bottle shape) |
2 | Bottle body diameter | 30-110mm |
3 | Bottle height | 50-350mm |
4 | Bottle muth diameter | 15-45mm |
5 | High pressure air compressor |
3.6m3/min 3.0MPa |
6 | Low pressure air compressor |
2.0m3/min 1.0MPa |
7 | Mold cavity | 6 cavity |
Bottle blowing machine configurations:
1. Electrical components:
1. PLC: Taiwan Delta
2. Touch screen: Taiwan Delta
3. Relay: Franch schneider
4. Circuit breaker: Franch schneider
2. Running cylinders:
1. Clamping cylinder: Japan SMC
2. Stretching cylinder: Japan SMC
3. Preform-feeding flipping cylinder: Japan SMC
4. Bottle-takeout flipping cylinder: Japan SMC
3. Air Filtration:
1. Low pressure oil-water separator: Germany Festo
2. Low pressure press-regulating valve: Germany Festo
3. Low pressure lubricator: Germany Festo
Thanks!
For more information please contact us!
