Auto Heat Shrink Tunnel Packaging Machine For Beverage Flat Bottle

Auto Heat Shrink Tunnel Packaging Machine For Beverage Flat Bottle

  • Auto Heat Shrink Tunnel Packaging Machine For Beverage Flat Bottle
  • Auto Heat Shrink Tunnel Packaging Machine For Beverage Flat Bottle
  • Auto Heat Shrink Tunnel Packaging Machine For Beverage Flat Bottle
Auto Heat Shrink Tunnel Packaging Machine For Beverage Flat Bottle
Product Details:
Place of Origin: Zhangjiagang city
Brand Name: DMK
Model Number: DMKMB-15A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export packing
Delivery Time: 30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets per year
Contact Now
Detailed Product Description
Name: Bottle Packing Machine Capacity: 12-15 Package Per Min
Suitable Shrink Film: PE、PP、PVC、POF Shrink Film Width: ≤600mm
Air Consumption: 100NL/min Compressed Air Pressure: 0.7-0.9mpa
Machine Size: L*W*H 5970×3510×1940(mm) Weight: 1600kg
High Light:

shrink wrap equipment

,

shrink wrap tunnel machine

Auto Heat Tunnel Shrink Wrapping Bottle Packing Machine For Beverage Flat Bottle



Shrink packing machine description:



Heat shrinkable packaging machine is based on the packaging film heat shrinkage and the design and manufacture according to the features of high efficiency, continuous operation, a new packaging equipment, it can be a single PET bottles or other similar items automatically arrangement, collection group, then use shrink film to package, finally through heat shrinkage, cooling stereotypes formed assembly packaging, packaging products after binding and firm, appearance neat, beautiful, open and convenient. Therefore, it is widely used in food, pharmaceutical, chemical and other light industrial products industries.





Shrink packing machine features:



1) automatic shrinkage and cutting temperature control, and can be changed according to the need.



2) thermostatic sealing and cutting knife, surface spraying teflon, smooth and firm incision.



3) programmable logic controller (PLC) control.



4) touch screen operation, friendly interface, convenient man-machine communication and control.



5) no backing packaging, suitable for different bottle sizes and different combinations of packaging.



6) simple operation and convenient maintenance.



Shrink packing machine parameters:



No Item Parameter
1 Voltage 380V/220V  50HZ
2      Max power consumption 20KW
3 Air compressor system requirement Pressure: 0.7-0.9Mpa
4 Bottle inlet conveyor height

1050±50mm

5 Machine size L*W*H 9600×1400×2100mm
6 Weight 1600kg
7 Max packing size L*W*H  2400*1000*500mm
8 Hot cutting temperature

150-200℃

9 Shrink temperature 150-200℃
10 Shrink time 0-6S



Shrink packing machine principle:



The bottle or box to be packed shall reach the bottle stop plate along the channel formed by the bottle feeding mechanism. The signal is given by the photoelectric detection head on the upper part, the front bottle feeder stops, the bottle baffle plate moves back to release the stress caused by the bottle feeding extrusion. The dividing plate drops and the separating plate drops to separate the packing bottle from the waiting bottle. The push bottle mechanism works forward so that the packaging bottle is along the guide bottle mechanism together with the film. Reach the sealing and cutting position together, and at the same time, push the packaging bottle which has finished the coating in the previous time into the conveyor belt in the thermal shrinkage equipment, at this time, the film feeding mechanism also works at the same time. Then the pressure film cylinder moves down to press the film, and then the hot seal cutter moves up to complete the sealing and cutting function. The packaging bottles that are pushed into the high-temperature conveyor belt complete the thermal shrinkage function in the thermal shrinkage equipment while moving forward, and finally reach the finished product bearing device after cooling and contraction by cold air. This process is repeated continuously to achieve packaging automation.

In addition to the conveying mechanism, all the above processes are controlled by PLC program under the action of compressed air cylinder.

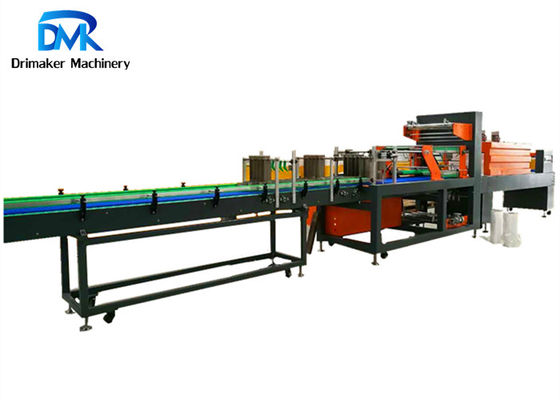

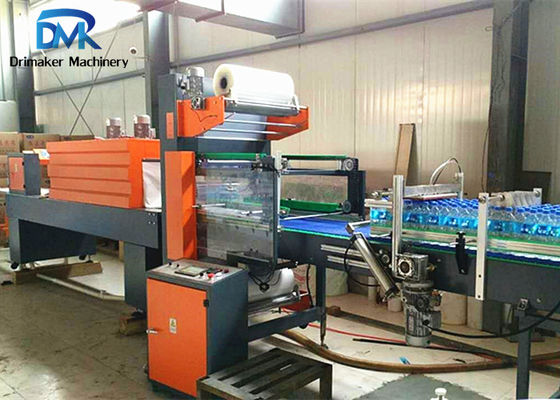

Auto Heat Shrink Tunnel Packaging Machine For Beverage Flat Bottle 0Auto Heat Shrink Tunnel Packaging Machine For Beverage Flat Bottle 1
