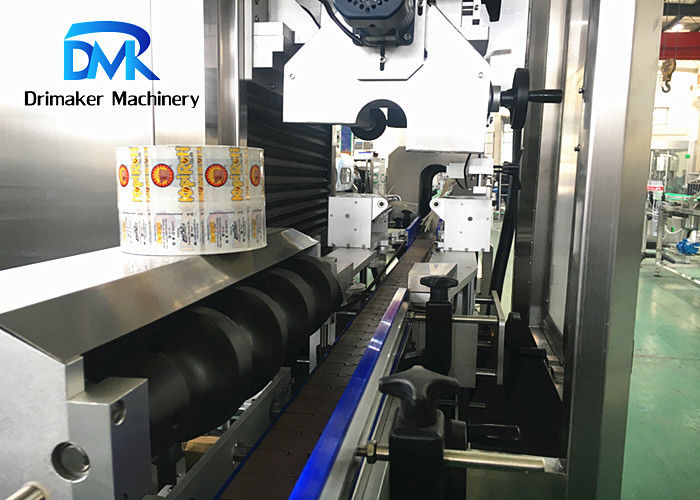

Stable Running 18KW Automatic Labeling Machine Sleeve Labeler System

Stable Running 18KW Automatic Labeling Machine Sleeve Labeler System

  • Stable Running 18KW Automatic Labeling Machine Sleeve Labeler System
  • Stable Running 18KW Automatic Labeling Machine Sleeve Labeler System
  • Stable Running 18KW Automatic Labeling Machine Sleeve Labeler System
Stable Running 18KW Automatic Labeling Machine Sleeve Labeler System
Product Details:
Place of Origin: Zhangjiagang city
Brand Name: DMK
Model Number: TB-200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export packing
Delivery Time: 15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets per year
Contact Now
Detailed Product Description
Name: Automatic Labeling Machine Capacity: 12000 Bottles Per Hour
Label Type: Bottle Mouth Label Steam Supply: Steam Generator
Function: Cut And Put Label On The Bottle Boiler Power: 18KW
Main Machine Size: L*W*H 2100*850*2000mm Shrink Tunnel Size: L*W*H 1800*600*1600mm
High Light:

shrink sleeve equipment


double side labeling machine

Stable Running High Speed Automatic Labeling Machine Sleeve Labeler System


Automatic labeling machine description:


Automatic shrink film of label machine, the series equipment is set to send bottles, bottle, set of tag, contraction function in the integration of automatic intelligent packaging line, real high speed, precise positioning of the compact, perfect packaging, human is the spirit of the equipment design, suitable for beverages and health food factory, has beautiful and easy cleaning and maintenance of the function (such as TB - 150 - b type, detailing the following).


Automatic labeling machine features:


Whole machine a great quantity of stainless steel and good-quality ulminium alloy ,reasonable fracture, compact, convenient to adjust;Shrinkage film volume label rack, match with adjustable device, convenient to adjust according to differ volume label 5″~10″paper tube.Simply installation, then can convenient for square and round bottle.No need of instrument, rotary mechanism is convenient to adjust, apply to differ bottle type.Unique sleeve labelling method, adopt to pressing sleeve labelling method, not only convenient but also reasonable.Auto controlling feeding system, level-off shrinkage film materials and regulate/adjust strain simultaneity.Unique design knife plate, within specification scope, can avoid changing knife base, knife changing is quick and conveniently.Middle guide-pole clip system, mould changing is more quick, no need any instrument.Label location system, can promote and demote in-phase adjust location according to specific bottle type requirement.Adopt to high-performance servo system and high-sensitivity photoelectric, label cutting precision is highly.Stainless steel electric equipment controlling case, controlling adopt to Japanese OMRON PLC.Adopt to advanced man-computer Interface auto controlling technology, key electric component all adopt to international famous industrial brand


Automatic labeling machine parameters:


No Item Parameter
1 Capacity 0-200 bottles per hour(according to bottle and label details)
2 Voltage 380/220VAC  50HZ
3 Bottle body diameter Ф28 -Ф125mm
4 Suitable label length 30~ 250mm
5 Suitable label thickness 0.03 ~0.13mm
6 Suiatble label tube diameter 5”~10”(can be adjustable)
7 Main machine size L*W*H 2100*850*2000mm
8 Shrink tunnel size L*W*H 1800*600*1600mm


Automatic labeling machine details:


1. The whole system adopts PLC control to maintain the coordination and stability of the whole machine.


2. It has detailed self-check function -- it can self-check various functions of I/O, RAM, EEPOM, indicator light and LCD screen, and the failure screen will show the failure.

3. The working state and failure of the machine have the function of reminding and warning, which makes the operation and maintenance more convenient.


4. The electrical components of the whole machine are mainly imported brands, such as: inverter (tai 'an), PLC (omron), servo system (delta), photoelectric devices (panasonic), electrical switches (panasonic), touch screen (omron), etc. Our goal is to use what we think, suitable for customers, but also to ensure the supply of accessories; To ensure the reliability and stability of each component, parts.


5. All spare parts, including bottom cabinet, conveyor belt, bar bar and small screws, are made of stainless steel and aluminum materials, never rust, no pollution, to ensure compliance with GMP environmental requirements.


6. As long as the center guide column of the corresponding product is replaced after replacement, it can be produced after simple debugging.


Stable Running 18KW Automatic Labeling Machine Sleeve Labeler System 0Stable Running 18KW Automatic Labeling Machine Sleeve Labeler System 1
