Place of Origin: | Zhangjiagang city |
Brand Name: | DMK |
Model Number: | TB-150 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Packaging Details: | Standard export packing |
Delivery Time: | 15 working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 100 sets per year |
Name: | Automatic Labeling Machine | Capacity: | 8000-9000 Bottles Per Hour |
---|---|---|---|
Bottle Inlet: | Product Conveyor | Shrink Type: | By Steam |
Function: | Cut And Put Label On The Bottle | Boiler Power: | 18KW |
Main Machine Size: | L*W*H 2100*850*2000mm | Shrink Tunnel Size: | L*W*H 1800*600*1600mm |
High Light: | shrink sleeve equipment,double side labeling machine |

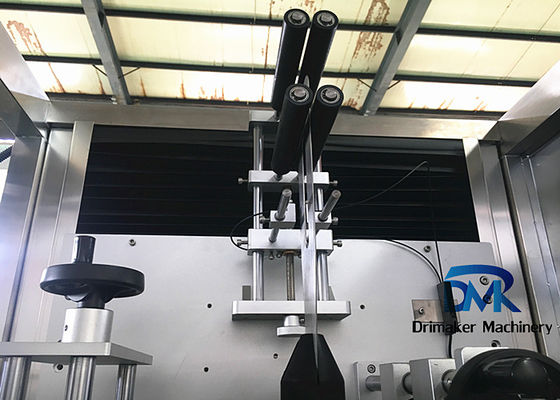

Steam Shrinkable Automatic Lableing Machine Sleeve Label Type Bottle Water
Automatic labeling machine description:
This sleeve labeling machine is widely applicable industries, products, mainly is suitable for all kinds of containers, shrink film packaging of various shapes and materials (such as: food and beverage, cleaning supplies, medicine, cosmetic and so on all kinds of plastic bottles, glass bottles, PVC, PET, PS, tin and other containers), can be fully wired with production line operation and single operation, empty bottles or can packaging use after filling, automatic fast packaging, save a lot of artificial cost, at the same time greatly improve product packaging effect.
Automatic labeling machine features:
1. Intelligent control - with the function of automatic detection of labels and products, the speed of the whole machine is unified and synchronized. Make the operation more simple, human nature.
2. Man-machine interactive touch screen -- with humanized touch control screen, all-chinese display, not only simple and intuitive operation, complete functions, but also rich help function and fault display function.
Set parameters storage - preset multiple sets of set parameters, no need to change the product reset (label processing length according to the needs of product packaging adjustment), that is: with memory storage program function, can be named for different programs. Change different specification or use different production capacity, just adjust different parameters can, do not have to adjust again, greatly improve work efficiency.
Automatic labeling machine parameters:
No | Item | Parameter |
1 | Capacity | 0-150 bottles per hour(according to bottle and label details) |
2 | Voltage | 380/220VAC 50HZ |
3 | Bottle body diameter | Ф28 -Ф125mm |
4 | Suitable label length | 30~ 250mm |
5 | Suitable label thickness | 0.03 ~0.13mm |
6 | Suiatble label tube diameter | 5”~10”(can be adjustable) |
7 | Main machine size | L*W*H 2100*850*2000mm |
8 | Shrink tunnel size | L*W*H 1800*600*1600mm |
Automatic labeling machine details:
1. The whole system adopts PLC control to maintain the coordination and stability of the whole machine.
2. It has detailed self-check function -- it can self-check various functions of I/O, RAM, EEPOM, indicator light and LCD screen, and the failure screen will show the failure.
3. The working state and failure of the machine have the function of reminding and warning, which makes the operation and maintenance more convenient.
4. The electrical components of the whole machine are mainly imported brands, such as: inverter (tai 'an), PLC (omron), servo system (delta), photoelectric devices (panasonic), electrical switches (panasonic), touch screen (omron), etc. Our goal is to use what we think, suitable for customers, but also to ensure the supply of accessories; To ensure the reliability and stability of each component, parts.
5. All spare parts, including bottom cabinet, conveyor belt, bar bar and small screws, are made of stainless steel and aluminum materials, never rust, no pollution, to ensure compliance with GMP environmental requirements.
6. As long as the center guide column of the corresponding product is replaced after replacement, it can be produced after simple debugging.
Thanks!
For more information please contact us!
