Commercial Reverse Osmosis Water Filtration System / Drinking 2ater Treatment Machine

Commercial Reverse Osmosis Water Filtration System / Drinking 2ater Treatment Machine

Water treatment system description:

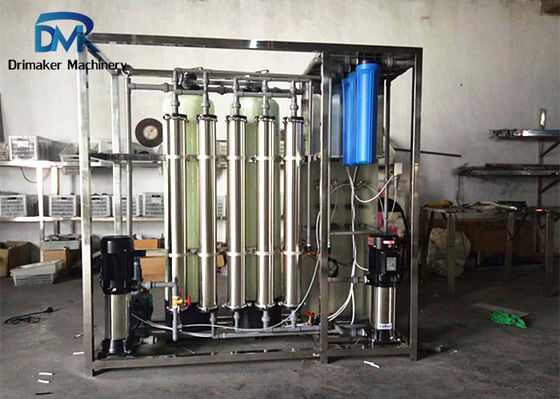

The reverse osmosis water making device is composed of solenoid valve, high and low pressure protection switch, high pressure pump, stainless steel membrane shell, reverse osmosis membrane, computer water quality measuring and controlling instrument, electronic control unit, concentrated fresh water proportional valve, flushing valve, flow meter, pressure gauge, stainless steel frame, etc.

The principle is that under the promotion of high pressure pump, the water molecules in the raw water can be reverse-osmosis. The reverse osmosis membrane will retain the organic salts, heavy metals, chemical pollutants, bacteria, viruses, and heat sources in the water in the concentrated water phase and drain away with the concentrated water. The water molecules and oxygen molecules will form drinking water through the reverse osmosis membrane.

Water treatment system features:

This system adopts the optimized design to ensure the good water quality and the reverse osmosis system to operate under high pressure for a long time in a stable and safe manner. It can be operated automatically or manually to achieve the overall control of the system:

1. Set pressure adjustment, balance the pressure of all parts of the system.

2. The Settings of concentrated water regulation, control water concentration and recovery.

3. Automatic quick flushing function for effective flushing of reverse osmosis membrane.

4. Manual sampling and membrane cleaning.

5. High and low voltage automatic protection.

6. Computer water quality online measurement and control.

7. The working status is shown.

8. Being concentrated water, pure water flow display.

9. Levies pressure display for each station.

Water treatment system parameter:

Water treatment system composition:

It generally includes pretreatment system, reverse osmosis device, post-treatment system, cleaning system and electrical control system.

The pretreatment system generally includes raw water pump, dosing device, quartz sand filter, activated carbon filter and precision filter. Its main function is to reduce the pollution index of raw water and other impurities such as residual chlorine to meet the reverse osmosis inlet requirements. The equipment configuration of the pretreatment system should depend on the specific situation of raw water.

The reverse osmosis device mainly consists of multistage high-pressure pump, reverse osmosis membrane element, membrane shell (pressure vessel) and bracket. Its main function is to remove impurities in the water, so that the water meet the use requirements.
