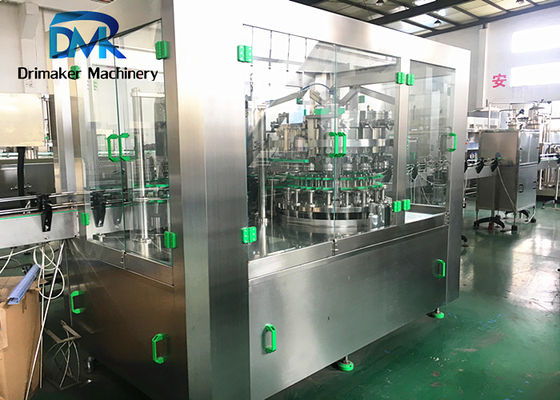

Soft Drink Can Beer Filling Line Stainless Steel Structure Rotary Bottle Filler

Soft Drink Can Beer Filling Line Stainless Steel Structure Rotary Bottle Filler

Soft Drink Can Beer Filling Line  Stainless Steel Structure Rotary Bottle Filler
Soft Drink Can Beer Filling Line  Stainless Steel Structure Rotary Bottle Filler
Soft Drink Can Beer Filling Line  Stainless Steel Structure Rotary Bottle Filler
Product Details:
Place of Origin: Zhangjiagang city
Brand Name: DMK
Model Number: DGF12-4
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets per year
Contact Now
Detailed Product Description
Name: Can Filling Machine Capacity: About 3000 Cans Per Hour(330ML Can)
Can Height: 39-160mm Power: 5.5KW
Weight: 3500KG Size: (L*W*H)1700*2000*2200mm
Function: Filling Sealing 2 In 1 Can Diameter: 52.5-99mm
High Light:

rotary bottle filling machine

,

beer canning machine

Soft Drink Production Equipment Can Filling Machine Stainless Steel Structure​


Can filling machine description:



This machine is an exclusive equipment developed on the basis of digesting and absorbing the domestic and foreign cans filling and sealing machine. Using advanced filling technology, when the empty can through the rotary wheel get into the lifting tray, the filling valve and the empty can will be in right position, the empty can raised and sealed, at the same time automatically open the filling valve mouth, when the filling liquid level blocked the valve return pipe mouth stop filling. The filled pot is sent to the head of the sealing machine via the hook chain, and the lid is sent to the top of the can through the lid feeder and the head of the press. When the tank holder mechanism rises, the head of the press presses the mouth of the can. The sealing wheel seals the pot before sealing it.


Can filling machine material:



Filling cylinder material automatic control, the level of liquid level sensor detection, ensure the level stability and reliable filling.

With a complete CIP cleaning function, only equipped with a CIP cleaning machine can achieve a comprehensive cleaning of the cylinder and pipeline.

The main electrical components adopt international famous brands, but also according to customer requirements to specify the brand.



Can filling machine electrical configuration:



No Name Brand Origin
1 PLC Mitsubishi             Japan
2 Frequency converter Mitsubishi Japan
3 Touch screen Weinview Taiwan
4 Contactor Schneider French
5 Photoelectricity Omron Japan
6 Pneumatic Airtac Taiwan
7 Air switch Omron Japan





No Item Detail
1 Model DGF12-4
2 Capacity 3000-4000 cans per hour
3 Filling Position 12 pcs
4 Sealing position 4 position
5 Compressed air pressure 0.4-0.7Mpa
6 Sealing rate ≥99.7%



Can filling machine details description:



Can filling:

It adopts isobaric filling, to make sure and control the air pressure in filling tank and can side. When empty can enter into the filling position, the can holder will fix and lift up the empty can, to open the filling valve. CO2 air will be injected into empty can first to make sure air pressure is same with filling tank, then liquid will be filled into the can.



Sealing:

Cap of can will be put on the empty can during the can moving. then sealing wheel will seal the can in one circle automatically,  make sure the sealing situation of can. No gas no liquid will be out of can after sealing.



Soft Drink Can Beer Filling Line  Stainless Steel Structure Rotary Bottle Filler 0

Soft Drink Can Beer Filling Line  Stainless Steel Structure Rotary Bottle Filler 1



Thanks!

For more information please contact us!
