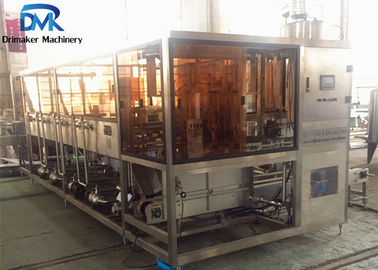

Fully Auto 5 Gallon Filling Machine Electric Driven PLC Control 450 BPH

I'm Online Chat Now

Fully Auto 5 Gallon Filling Machine Electric Driven PLC Control 450 BPH

Fully Auto  5 Gallon Filling Machine  Electric Driven PLC Control 450 BPH
Fully Auto  5 Gallon Filling Machine  Electric Driven PLC Control 450 BPH Fully Auto  5 Gallon Filling Machine  Electric Driven PLC Control 450 BPH Fully Auto  5 Gallon Filling Machine  Electric Driven PLC Control 450 BPH

Large Image :  Fully Auto 5 Gallon Filling Machine Electric Driven PLC Control 450 BPH

Product Details:

Place of Origin: Zhangjiagang city
Brand Name: DMK
Model Number: QGF-450

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export packing
Delivery Time: 30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets per year
Detailed Product Description
Name: Gallon Water Filling Machine Capacity: 350-450 Bottles Per Hour(5gallon Bottle)
Material: Stainless Steel Bottle Type: PC/PET Bottle
Weight: 750KG Size: (L*W*H)4600*1250*2000mm
Function: Washing+Filling+Capping Filling Head: 3 Pcs
High Light:

5 gallon water filling machine

,

5 gallon water bottling machine

,

PLC Control 5 Gallon Filling Machine

Fully Auto Electric Driven 5 Gallon Filling Machine PLC Control 450 BPH


Gallon filling machine description:



Big output pure water filling machine 5 gallon bottled water production line equipment is suitable for bottled water production, which integrates washing, filling and sealing, is the ideal equipment for the production of drinking mineral water, the whole machine adopts SUS304 stainless steel materials, corrosion resistance, the back-end conveyor equipped with enough thick stainless steel chain, is not easy to fracture, strong motor, stable enough horsepower to drive to drive the delivery of bottled water, electrical components adopt Siemens, omron and other international well-known brands, production line adopts electrical program control, safety device with interlock, signal, self-test beings.

Gallon water production steps:



The water filling line of the 5-gallon barrel water production line adopts programmable controller to control the automatic operation of the system, and the power transmission adopts deceleration motor and pneumatic control system, which is reliable, easy to operate and easy to maintain. The whole process of bottle washing, filling, cover and capping is carried out in the closed tunnel, which can effectively prevent the possible secondary pollution of the purified water during the filling process. This system all USES the high quality stainless steel material, the other part also all uses the non-toxic, the durable combination material, the electric, the pneumatic system USES the import component, therefore the equipment failure rate is low, the reliability is high.


Gallon filling machine parameters:



Item                 QGF-120 QGF-300 QGF-450 QGF-600 QGF-900

Capacity
bottles per hour

100-120 250-300 350-450 550-600 800-1000

Machine weight
KG

300 450 500 750 900
Filling head 1 2 3 4 6
Barrel type 3 & 5 gallon barrel
Barrel dimension φ270×490 (can be customiazed)
Material High quality stainless steel
Compressed air pressure 0.4~0.6Mp
Barrel volume 18.9L



Gallon filling machine details description:

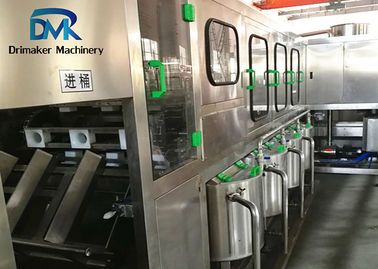

Automatic bottle feeding system:

When the barrel is transported to the automatic bucket loading device through the conveyor chain, the photoelectric sensor detects that there are barrelsl on the chain, and then the cylinder on the bottle rack will start, the barrel will be transferred to the bucket plate on the top bucket rack, the electrical control will start the cylinder on the bucket rack, the barrel will be sent to the bucket washing machine on the conveyor chain. After strict analysis and calculation of the mechanism, the barrel mouth after automatic loading is aligned with the fixed cup of the barrel washing machine.



Bottle rinsing:

The machine is divided into 12 rinses: two rinses are alkali rinses, two rinses are disinfectant rinses, two rinses are reflux rinses, two rinses are finished water rinses, and one drip-drying station is set up after rinsing the detergent, disinfectant, reflux water and finished water respectively, and the time is 20S.

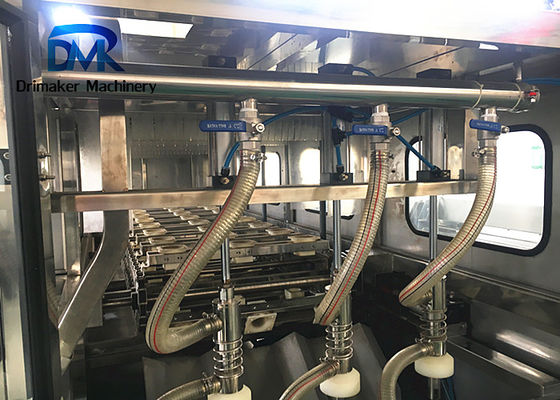

Bottle filling:

It adopts grivity filling (filling valve type is optional accoridng to customer barrel and requirements), it can finish hig speed filling, and can control the backflow water well.



Capping:

This machine adopts 1 pcs roller capping,automatic cap loading susye, helps bottle get the cap automatically, then roller capping system will help press the cap step by step during the bottle moving, which can save production time. and whole capping part is

fully covered in the machine, so the process is very clean.



Fully Auto  5 Gallon Filling Machine  Electric Driven PLC Control 450 BPH 0Fully Auto  5 Gallon Filling Machine  Electric Driven PLC Control 450 BPH 1
