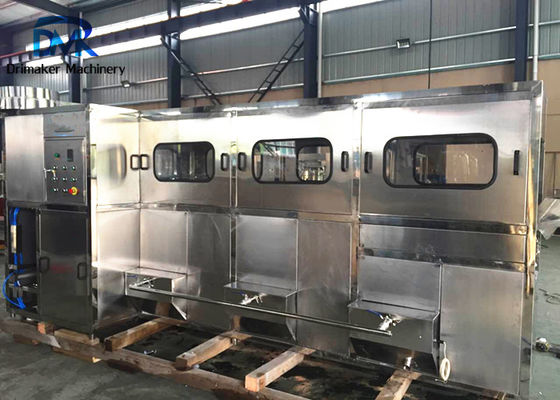

Small Water Plant 5 Gallon Water Filling Machine 100 Barrel Per Hour

100 Barrel Per Hour 5 Gallon Filling Suitabke For Machine Small Water Plant

Gallon filling machine description:

QGF-120 is special for 3 & 5 gallon drink water production line which is an ideal equipment for filling mineral water, distilled water, purified water. This model has strong and very compact structure, which is suitable for small water plant factory, or investor who is new in this field.

Gallon filling machine features:

Production capacity: 100-120 BBL/h

Bucket specification: barrel Ø 56 x Ø 270 x Ø 450

Filling capacity: 5 gallons (18.925 litres)

Water consumption: mineral water, purified water, used for filling 2 tons/hour, washing water 0.5 tons/hour (adjustable)

Overall power: 2.2kw

Air source pressure: 4-5 kg/cm2

Transmission mode: cylinder transmission

Action distribution: a cycle of 36 seconds per barrel distribution, spraying 10-15 seconds adjustable, filling 15-18 seconds, drive, top barrel, pressure cover, barrel between 1-5 seconds.

Computer: PLC programmable controller

Rinse: the first and second rinse for disinfection, the third rinse with water, and the fourth rinse with pure water

Overall size: 2600×650×1600(linear)

Weight: 300 kg

Gallon filling machine parameters:

Gallon filling machine details description:

Bottle rinsing:

There are 4 working procedures: The 1st step is disinfectant water rinsing, after that, empty barrel will more forward for 1 step to get into next rinsing position, 2nd step is still disinfectant water rinsing, to make sure water is cleaned very well. Then empty barrel move into 3rd rinsing position, 3rd step is recycle water using, it is for wash the disinfectant water in the barrel away. 4th step is purified water rinsing, to makre sure there is no other liquid in barrel.

Bottle filling:

It adopts grivity filling (filling valve type is optional accoridng to customer barrel and requirements), it can finish hig speed filling, and can control the backflow water well.

Capping:

This machine adopts 1 pcs roller capping,automatic cap loading susye, helps bottle get the cap automatically, then roller capping system will help press the cap step by step during the bottle moving, which can save production time. and whole capping part is

fully covered in the machine, so the process is very clean.
