Welcome to Suzhou Drimaker Machinery Technology Co., Ltd

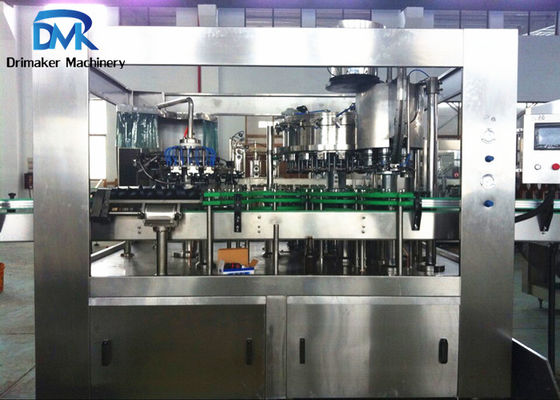

Beverage Liquid Glass Bottle Filling Machine / Wine Production Line

Basic Properties
Place of Origin: Zhangjiagang city
Brand Name: DMK
Model Number: BDCGF14-12-6
Trading Properties
Minimum Order Quantity: 1 set
Price: USD 20,000-100,000 per set
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets per year
Product Summary
Beverage Liquid Glass Bottle Filling Machine 500ml Beer Processing Plant Glass bottle filling machine description: The filling line of small glass bottle beer is used for the production of various carbonated drinks like beer in glass bottles. In one machine to achieve the bottle, filling, sealing. ...

Product Details

Highlight:

glass bottling machine

,

milk glass bottle packing machine

Name: Glass Bottle Beer Filling Machine
Capacity: 2000-2500 Bottles Per Hour(500ml Bottle)
Material: Stainless Steel
Power: 3.1KW
Weight: 3000KG
Size: (L*W*H)2400*1600*2400mm
Rinsing Head: 14 Heads
Filling Head: 12 Heads
Product Description

Beverage Liquid Glass Bottle Filling Machine 500ml Beer Processing Plant



Glass bottle filling machine description:



The filling line of small glass bottle beer is used for the production of various carbonated drinks like beer in glass bottles. In one machine to achieve the bottle, filling, sealing. Scientific and reasonable design, beautiful appearance, complete functions, operation. Easy maintenance, high degree of automation. The whole machine adopts the design of suspension operation by the card bottleneck, which makes the whole line operation function more reliable, and overcomes the reason that the machine can't work normally caused by the error of the bottle wall and the bottle height. Easy and quick to change bottle type.



Glass bottle filling machine features:



1. Filling tank, filling valve and other parts in direct contact with the material are made of high-quality stainless steel or non-toxic materials, in line with food hygiene requirements.

2. The sealing part is made of heat-resistant rubber, which meets the technical requirements of high temperature sterilization.

3. The PCL programmable controller is adopted to realize the full automatic control from bottle entering machine to filling, and the frequency conversion speed control is adopted to make it easy for users to adjust and adjust the equipment, which meets the requirements of different processes for production capacity.

4. The use of the principle of equal pressure filling and popular spring valve, to ensure the quality of the drink, the use of advanced magnetic clutch adjustment cap torque device, to ensure the quality of the cap.



Glass bottle filling machine parameters:



Item                 BDCGF14-12-6  BDCGF18-18-6  BDCGF24-24-8  BDCGF32-32-10

Capacity

bottles per hour

2000-2500 3000-4000 5000-6000 7000-8000

Suitable bottle

diameter

50-90mm

200-2000ml

Filling temperature

she

2-3

Machine weight

KG

2500 3500 4000 5000

Machine size

L*W*H (mm)

2400*1600

*2400

2400*1850

*2400

3100*2200

*2400

3600*2500

*2400



Glass bottle filling machine details description:



Bottle inlet:

It use bottle feeding screw to make empty glass bottle enter into working position one by one smoothly. The rotary speed is

suitbale for machine running speed, and this feeding screw will creat the necessary space between two bottles.



Bottle rinsing:

Bottle rinsing clamp use high quality material, to hold the most circle of bottle neck of empty bottle, make sure empty bottle is in  stable situation during rinsing area. when empty bottles are automatically rotated in a 180°semi-circle on the track, it washes the bottle inside in a complete and efficient way.



Bottle filling:

It adopts isobaric filling principle, to fill beer into empty bottle, during the filling period, air aressure in bottle is

same with filling tank inside because of advanced filling principle, which makes filling period more safe without too much gas leakage.

Quality stainless steel is used in all parts that contact beverage; All pipelines contact with gas and liquid use

Inside and outside polishing pipe; All seal ring contact with the beverage use food-stage nitrile rubber or silicon rubber, meeting health requirements.



Capping:

This special designed for crown cap of glass bottle, it uses advanced foreign principle and rich experience, make the capping part smooth and safe. Besides, if customer want to use other type cap and aluminum cap, easy-open cap, we can also design and use suitable capping part equipment accoridng to customer demands.



 Beverage Liquid Glass Bottle Filling Machine / Wine Production Line 0Beverage Liquid Glass Bottle Filling Machine / Wine Production Line 1

Thanks!

For more information please contact us!
