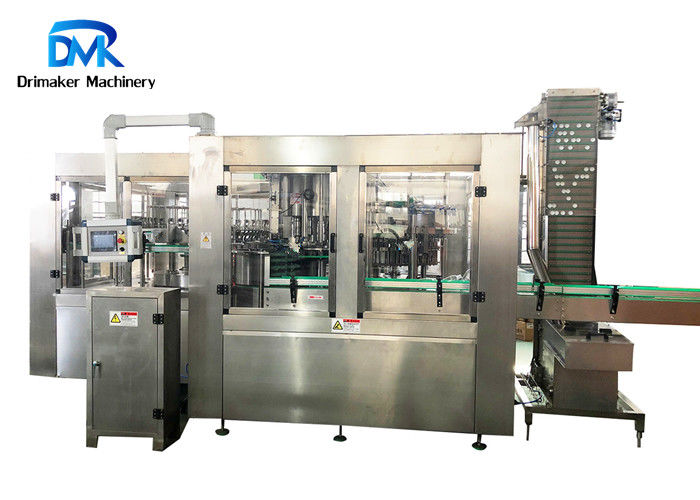

12kw Soda Bottling Machine Automatic Bottle Filling And Capping Machine

12kw Soda Bottling Machine Automatic Bottle Filling And Capping Machine

12kw Soda Bottling Machine Automatic Bottle Filling And Capping Machine
12kw Soda Bottling Machine Automatic Bottle Filling And Capping Machine
12kw Soda Bottling Machine Automatic Bottle Filling And Capping Machine
Product Details:
Place of Origin: Zhangjiagang city
Brand Name: DMK
Model Number: DCGF50-50-15
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 12,000-100,000 per set
Packaging Details: Standard export packing
Delivery Time: 50 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets per year
Contact Now
Detailed Product Description
Name: Soft Drinks Filling Machine Capacity: 15000-16000 Bottles Per Hour(500ml Bottle)
Power: 12kw Weight: 9000KG
Size: (L*W*H)4000*2800*2400mm Control: PLC + Touch Screen
Automatic Grade: Fully Automatic Bottle Volume: 200ml-2000ml
High Light:

soda water filling machine


soda filling and capping machine

Soda Water Automatic Filling And Capping Machine PET Bottle Filling Equipment


Soda bottling machine description:


3 in 1 Filling and Capping Machine

Dimension: 5400×4200×2400mm(L*W*H)

Capacity: 15,000-16,000bottles/hour(500ml)

Engineers available to service machinery overseas

Warranty: 1 year and free spare parts in one year

Weight: 9000kg

Bottle Type: Glass Bottle, Stainless Steel etc

Bottle Type:200ml to 2000ml

Filling Head: 50 PCS

Capping Head: 15 PCS

Machine Type: Rotary Filling Machine

Application: Soda water, Soft drink. Carbonated drink , Energy drink, Beverage drink

Cap Type: Metal Screw cap, Aluminum Cap, Crown Cap, Easy-open Cap

Place of Origin: Zhangjiagang city, China near Shanghai

Bottle Shape: Round/Square/Rectangular/Irregular

Delivery Time: 60 workingdays

Shipping: Sea or land

Soda bottling machine structure:


(1)This DCGF series carbonated drink bottling machine is a unique design combining the three machines of bottle washing, filling and capping in one to decrease main power, to save space and to diminish the air pollution among the three machines.


(2) This CSD carbonated soft drink filler's case and the parts contacting with the materials are made of stainless steel which ensures the good external look and easy washing.


(3) The PET Bottle carbonated drink bottling machine uses frequency changer to control the main machine motor. And it has an output number indicating function which is easy to control the adjustment of the output.


(4). Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.


(5).The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.


(6).Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.


(7). Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Siemens Mitsubishi, Schneider, OMRON

Soda bottling machine parameters:


Item    DCGF8-8-3   DCGF12-12-5  DCGF18-18-6  DCGF24-24-8 DCGF32-32-10 DCGF40-40-12 DCGF50-50-15

bottles per hour

1500-2000 2000-3000 4000-5000 7000-8000 9000-11000 12000-14000 15000-16000

Suitable bottle


Filling temperature


Machine weight

2000 3000 3500 4500 5500 8000 9000

Machine size
L*W*H (mm)


















Soda bottling machine details description:


Bottle rinsing:

Bottle-washing machine with the spring structure: when empty bottles are automatically rotated in a 180°semi-circle on the

track, it washes the bottle insidein a complete and efficient way.

Rinsing water is pumped into every filling nozzle, make sure the water can wash the bottle inside well.

Bottle filling:

Adopting the way of filling by holding the necks of the bottle, plus the function of pre-cover of the centralizing cover with high precise centralization,which ensure the right seating of mouth of the bottle and filling valve,with low liquid loss




1. Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping.
2. All 304/316 stainless steel construction.
3. No bottle no capping.
4. Automatic stop when lack of bottle.
5. Capping effect is stable and reliable ,Defective rate ≤0.2% .


Cap loading:

It is used for conveying caps into the capping machine by blowing. It starts to work automatically when it is lake of cap in the capping machine. The height and distance of transporting caps, the time of sterilizing can be adjusted as the requirement.

12kw Soda Bottling Machine Automatic Bottle Filling And Capping Machine 0




For more information please contact us!
