Home ProductsWater Bottling Machine

Complete Water Bottling Machine Pet Bottle Packing Machine 50 Filling Heads

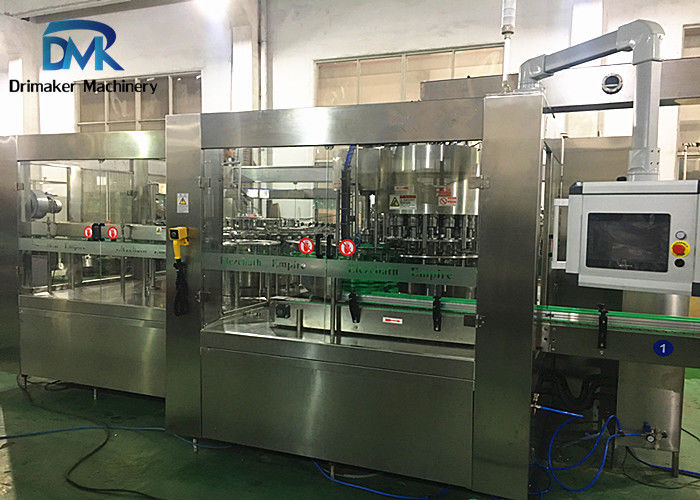

Complete Water Bottling Machine Pet Bottle Packing Machine 50 Filling Heads

  • Complete Water Bottling Machine Pet Bottle Packing Machine 50 Filling Heads
  • Complete Water Bottling Machine Pet Bottle Packing Machine 50 Filling Heads
  • Complete Water Bottling Machine Pet Bottle Packing Machine 50 Filling Heads
Complete Water Bottling Machine Pet Bottle Packing Machine 50 Filling Heads
Product Details:
Place of Origin: Zhangjiagang city
Brand Name: DMK
Model Number: CGF50-50-15
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 9,000-100,000 per set
Packaging Details: Standard export packing
Delivery Time: 60 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets per year
Contact Now
Detailed Product Description
Name: Automatic Water Bottling Machine Capacity: 20000-24000 Bottles Per Hour(500ml Bottle)
Material: Stainless Steel Power: 10KW
Weight: 8000KG Size: (L*W*H)5400*4200*2400mm
Warranty: 12 Month Filling Material: Mineral Water, Drinking Water, Purified Water
Filling Head: 50 Heads Control: PLC + Touch Screen
High Light:

water bottle plant machine


bottled water equipment

Complete Water Bottling Packing Line / Production Plant / Pet Water Packaging


Water bottling machine description:


The factory direct selling bottled mineral water filling machine is a set of washing, filling, sealing as one of the full automatic multi-functional unit, it is suitable for all kinds of non-containing beverages, mineral water, pure water, fruit juice, tea drinks such as washing, filling, sealing automatic production. The machine has the advantages of unique design, compact structure, beautiful appearance, complete functions, strong adaptability, convenient operation and maintenance, and continuous adjustable production capacity.


Main purpose and scope of application:


This machine is a small bottle water filling machine which integrates rinsing, filling and sealing. Compared with the split-type equipment, the three-in-one unit better improves the integrity of automation, compact structure reduces the equipment footprint, and shorten the contact time between materials and the outside world. Bottle clinches, filling valves and swivel caps are customized to the bottle.


Applicable bottle type: bottle capacity range 200ml-2000ml

Bottle bodu diameter: Ф50-Ф90mm

The height range of the bottle: 150-320mm


Water bottling machine features:


1. This machine is suitable for quantitative filling of liquid in different bottle, such as glass bottle of wine, beverage, seasoning, liquid medicine and other liquid without carbon dioxide gas. This machine is a full-automatic liquid quantitative filling machine, using the measuring cup quantitative filling method, the quantitative accuracy is high.


2. The machine adopts rolling soft support mechanism, the bottle is gentle, the guide rail is less worn, the bottle is not in place, will not be broken or damage the filling head.


3. A new generation of stainless steel inverted bottle holder is adopted, so that the clamp does not contact with the part above the screw thread of the bottle mouth, and is equipped with sprinkler head. Make the inner wall of the bottle wash well without dead Angle.


4. It adopts the design of the working state of the suspension operation by the card bottleneck, so as to keep the bottle stable and reliable under the high speed operation. Meanwhile, it greatly reduces the number of change parts, making it more convenient and quick to change the bottle type


5. By replacing some components, can adapt to Ф 50-90mm diameter bottle filling.


Water bottling machine parameters:

Item                 CGF8-8-3    CGF12-12-5  CGF18-18-6  CGF24-24-8  CGF32-32-10 CGF40-40-12 CGF50-50-15


bottles per hour

2000-3000 3000-4000 5000-6000 8000-10000 10000-12000 14000-16000 20000-24000

Suitable bottle




Rinsing pressure



Machine weight


1500 2500 3500 4000 5000 7000 8000

Machine size

L*W*H (mm)
































Water bottling machine details description:

Rinsing part
1    A bottle clip is installed on the rotary table of the bottle punching machine. The bottle clip holds the bottle mouth and turns 180° along a guide rail to make the bottle mouth downward.
2    Bottles enter into rinsing part by stare wheel, then clamp will catch bottle automatically.
3 In the specific area of the bottle punching machine, the nozzle of the bottle holder spurts out the water to flush the inner wall of the bottle.
4 After rinsing and draining, the bottle will be turned over 180° along the guide rail under the holder, so that the bottle mouth will be upward.
Finnling part
1 Adopting advanced gravity filling principle, filling effect is fast, steady and accurate.
2 With automatic structure, machine can reach the purpose of no bottle no filling, which can save a lot of water.
3 High-precision, high-speed quantitative filling valve, liquid level accurately without loss, to ensure good filling quality.
4 Material contact parts are made of stainless steel, corrosion-resistant, easy to clean
Capping part
1 Cover with efficient management system, a perfect cap feeding and protection device.
2 The magnetic torque type is adopted to screw the cover to realize grasping the cover and twisting the cover.
3 Screw cap torque stepless adjustable, seal tight and reliable, and no damage to the cap.
4   There is cap decting device at the bottom of cap slide, which make sure there is no inverse caps.





 Complete Water Bottling Machine Pet Bottle Packing Machine 50 Filling Heads 0Complete Water Bottling Machine Pet Bottle Packing Machine 50 Filling Heads 1


For more information please contact us!
