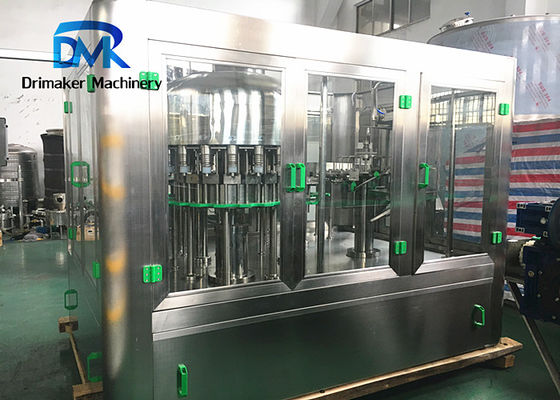

Stainless Steel Bottle Water Filling Machine Suitable For 200ml-1500ml Bottle
Basic Properties
Place of Origin:
Zhangjiagang city
Brand Name:
DMK
Model Number:
CGF12-12-5
Trading Properties
Minimum Order Quantity:
1 set
Price:
USD 9,000-100,000 per set
Payment Terms:
L/C, T/T, Western Union
Supply Ability:
100 sets per year
Product Summary
Stainless Steel Bottle Water Filling Machine Suitable For 200ml-1500ml Bottle Water bottling machine Specification: Machine Model CGF12-12-5 12 pcs rinsing heads, 12 pcs filling heads, 5 pcs capping heads Machine capacity(bottle/hour) :3000-4000BPH (500ml) Suitable bottle diameter(mm): φ=50-100 H...
Product Details
Highlight:
water bottle plant machine
,bottled water equipment
Name:
Bottle Water Bottling Machine
Capacity:
3000-4000 Bottles Per Hour(500ml Bottle)
Material:
Stainless Steel
Power:
3.1KW
Weight:
2500KG
Size:
(L*W*H)2400*1600*2400mm
Automatic Grade:
Fully Automatic
Rinsing Head:
12 Heads
Filling Head:
12 Heads
Capping Head:
5 Heads
Product Description
Stainless Steel Bottle Water Filling Machine Suitable For 200ml-1500ml Bottle
Water bottling machine Specification:
Machine Model CGF12-12-5
12 pcs rinsing heads, 12 pcs filling heads, 5 pcs capping heads
Machine capacity(bottle/hour) :3000-4000BPH (500ml)
Suitable bottle diameter(mm): φ=50-100 H=170 330-1500ml
Spraying pressure: 2~3 Mpa
Overall dimension(LxWxH): 2400x1600x2400mm
Weight: 2500kg
Electronic control keys: Mitsubishi PLC, Mitsubishi inverter...etc and other international electric parts brands.
Water bottling machine features:
1. This machine has compact structure, automatic control system, which makes customer operation very easy.
2. Water contacting parts of machine are made of high quality stainless steel, which is good for clean, corrosion resistance, long - term use.
3. This machine is equipped with high quality filling valve, which can reach high-precision, high-speed quantitative filling valve, liquid level accurately without loss, to ensure good filling quality.
4. Capping part adopts constant torque device which ensure quality assurance, this part can protect cap without damage.
5. Offers the perfect cleaning management system to ensure the quality of the filling before washing.
Water bottling machine parameters:
| Item | CGF8-8-3 | CGF12-12-5 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 | CGF40-40-12 | CGF50-50-15 |
|
Capacity bottles per hour |
2000-3000 | 3000-4000 | 5000-6000 | 8000-10000 | 10000-12000 | 14000-16000 | 20000-24000 |
|
Suitable bottle diameter |
50-90mm 200-2000ml |
||||||
|
Rinsing pressure kg/cm2 |
2-3 | ||||||
|
Machine weight KG |
1500 | 2500 | 3500 | 4000 | 5000 | 7000 | 9000 |
|
Machine size L*W*H (mm) |
1900*1600 *2400 |
2400*1600 *2400 |
2400*1830 *2400 |
3100*2200 *2400 |
3600*2500 *2400 |
4000*2800 *2400 |
5400*4200 *2400 |
Water bottling machine details description:
| Rinsing part | |
| 1 | Bottle rinsing part adopts compact structure, which ensures running situation. |
| 2 | Bottles enter into rinsing part by stare wheel, then clamp will catch bottle automatically. |
| 3 | Empty bottle will rotated in 180°semi-circle in the track during clamping moving. |
| 4 | Rinsing nozzle will inject purified to clean bottle inside. |
| Finnling part | |
| 1 | Water filling tank, main shaft part, bottle holder,filling part and filling valves. |
| 2 | With automatic structure, machine can reach the purpose of no bottle no filling, which can save a lot of water. |
| 3 | High efficent filling way, which control the filling quality. |
| 4 | All water contact parts are made of high quality stainless steel. |
| Capping part | |
| 1 | About capping part, this working part adopts high quality cap-tightener. |
| 2 | In order to suitable for various types caps, we will manufacture special cap mould according to customer cap sample. |
| 3 | Tooth profile device is used in choosing caps. |
| 4 | There is cap decting device at the bottom of cap slide, which make sure there is no inverse caps. |
Thanks!
For more information please contact us!
