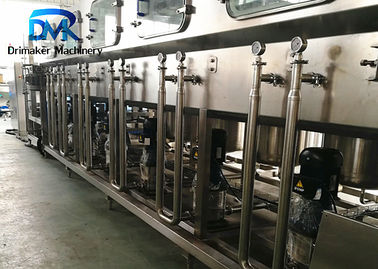

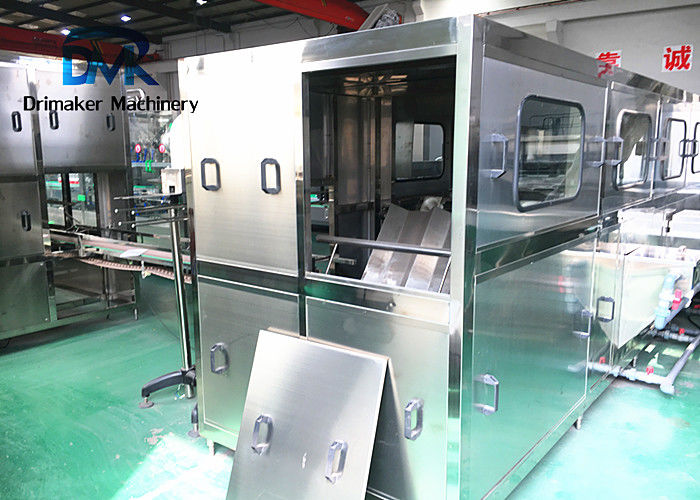

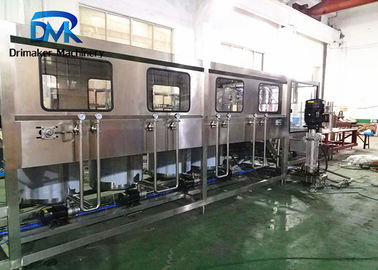

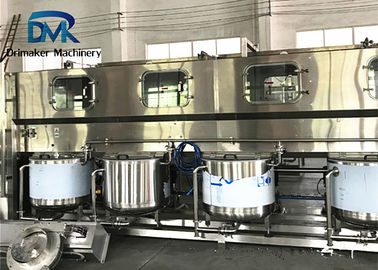

3 In 1 5 Gallon Water Filling Machine 19l Liter Jar Washing Filling Capping

I'm Online Chat Now

3 In 1 5 Gallon Water Filling Machine 19l Liter Jar Washing Filling Capping

3 In 1 5 Gallon Water Filling Machine 19l Liter Jar Washing Filling Capping
3 In 1 5 Gallon Water Filling Machine 19l Liter Jar Washing Filling Capping 3 In 1 5 Gallon Water Filling Machine 19l Liter Jar Washing Filling Capping 3 In 1 5 Gallon Water Filling Machine 19l Liter Jar Washing Filling Capping 3 In 1 5 Gallon Water Filling Machine 19l Liter Jar Washing Filling Capping

Large Image :  3 In 1 5 Gallon Water Filling Machine 19l Liter Jar Washing Filling Capping

Product Details:

Place of Origin: Zhangjiagang city
Brand Name: DMK
Model Number: QGF-900

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets per year
Detailed Product Description
Name: Gallon Water Filling Machine Capacity: 800-1000 Bottles Per Hour(5gallon Bottle)
Material: Stainless Steel Power: 14KW
Weight: 1200KG Size: (L*W*H)6200*1800*2000mm
Function: Rinsing Filling Capping 3 In 1 Filling Head: 6 Pcs
High Light:

5 gallon water bottling machine

,

20 liter jar washing machine

,

19Liter Gallon Filling Machine

Automatic 3 In 1 19L Liter Gallon Filling Machine Jar Washing Filling Capping


Gallon filling machine description:



QGF bottled water filling machine is the core equipment of 5 gallon bottled water production line. It is an ideal equipment for producing mineral water, distilled water and purified water. The machine is made of high quality stainless steel, which has the advantages of easy cleaning and corrosion resistance. The main electrical accessories adopt mitsubishi, omron brand products. Pneumatic components adopt AIRTAC brand products. The washing bucket inside and outside the sprinkler head are using the United States sprinkler company's special technical equipment. The machine has compact structure, high degree of automation, reliable work and high efficiency. Is a set of mechanical, electronic, pneumatic components in one of the automatic barrel water equipment.

Gallon water production steps:



Field operation: a field operation screen is installed beside the filling machine to realize local control and display the working status of the filling line, and it has the function of separate manual control. When there is a fault, it can display the fault (such as motor, liquid level, etc.) and the cause of the fault, and there is sound and light alarm, and the system can be closed selectively according to the alarm degree to maximize the safety of the equipment.




Gallon filling machine parameters:



Item                 QGF-120 QGF-300 QGF-450 QGF-600 QGF-900

Capacity
bottles per hour

100-120 250-300 350-450 550-600 800-1000

Machine weight
KG

300 450 500 750 900
Filling head 1 2 3 4 6
Barrel type 3 & 5 gallon barrel
Barrel dimension φ270×490 (can be customiazed)
Material High quality stainless steel
Compressed air pressure 0.4~0.6Mp
Barrel volume 18.9L



Gallon filling machine details description:



Automatic bottle feeding system:

When the barrel is transported to the automatic bucket loading device through the conveyor chain, the photoelectric sensor detects that there are barrelsl on the chain, and then the cylinder on the bottle rack will start, the barrel will be transferred to the bucket plate on the top bucket rack, the electrical control will start the cylinder on the bucket rack, the barrel will be sent to the bucket washing machine on the conveyor chain. After strict analysis and calculation of the mechanism, the barrel mouth after automatic loading is aligned with the fixed cup of the barrel washing machine.



Bottle rinsing:

Bottle washing part is composed of bottle washing drive mechanism, bottle holder, liquid medicine bottle washing water pump, medicine water tank, water purification bottle washing and filling water pump, bottle washing drive cylinder, etc.



Bottle filling:

The filling part is composed of pushing cylinder, pushing mechanism, out raceway, filling pneumatic valve, solenoid valve, lidding motor, lidding mechanism and lidding mechanism.



Electrical part:

Electrical part is composed of PLC, ac contactor OUT, PLC, etc.



3 In 1 5 Gallon Water Filling Machine 19l Liter Jar Washing Filling Capping 03 In 1 5 Gallon Water Filling Machine 19l Liter Jar Washing Filling Capping 1
