High Efficiency Automatic Bottle Filling And Capping Machine Water Bottling Line

I'm Online Chat Now

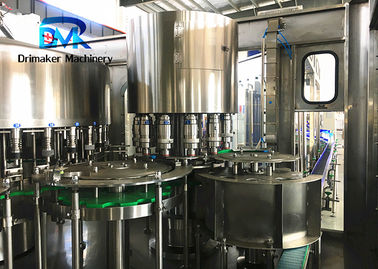

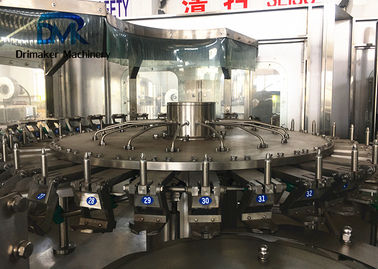

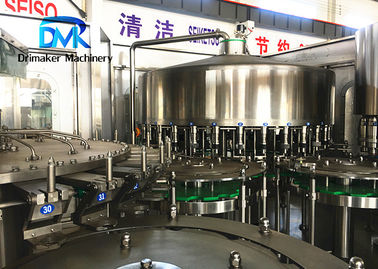

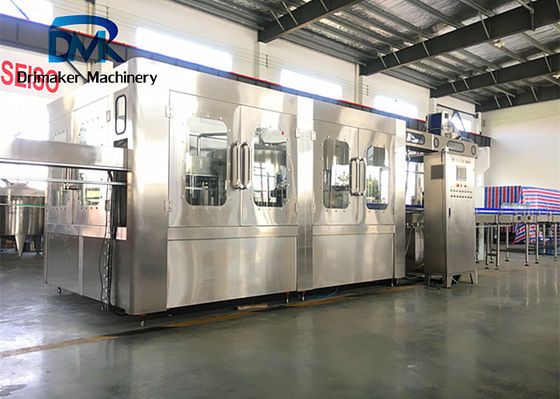

High Efficiency Automatic Bottle Filling And Capping Machine Water Bottling Line

High Efficiency Automatic Bottle Filling And Capping Machine Water Bottling Line
High Efficiency Automatic Bottle Filling And Capping Machine Water Bottling Line High Efficiency Automatic Bottle Filling And Capping Machine Water Bottling Line High Efficiency Automatic Bottle Filling And Capping Machine Water Bottling Line High Efficiency Automatic Bottle Filling And Capping Machine Water Bottling Line

Large Image :  High Efficiency Automatic Bottle Filling And Capping Machine Water Bottling Line

Product Details:

Place of Origin: Zhangjiagang city
Brand Name: DMK
Model Number: CGF

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export packing
Delivery Time: 60 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets per year
Detailed Product Description
Name: Bottle Water Bottling Machine Capacity: 1000-24000 Bottles Per Hour(500ml Bottle)
Usage: Mineral Water, Pure Water, Beverage Filling Material: Flowing Liquid
Rinsing Head: 8-50 Heads Filling Head: 8-50 Heads
Capping Head: 3-15 Heads Capping: Plastic Screw Cap
High Light:

water production machine

,

water bottle plant machine

,

High Efficiency Water Bottling Machine

A to Z Complete Pure Mineral Water Washing Filling Capping Bottling Machine



Water bottling machine feature:



This machine adopts direct connection technology of air conveyor channel and bottle star-wheel, cancel the bottle screw and conveying chain, whcih makes changing bottle shape easily. Bottle transmission adopts neck-hold technology. It is not necessary to adjust the height of the equipment to change the bottle shape. The three-in-one unit to complete the bottle washing, filling, sealing three processes, bottle wear, accurate and stable transmission, convenient bottle replacement. High speed large flow gravity filling valve, filling speed is fast, the liquid level is accurate without liquid loss. The specially designed stainless steel bottle punch is strong and durable. It does not touch the threaded part of the bottle mouth to avoid the secondary pollution of the bottle mouth. The bottom plate of the rotary bottle adopts spiral descending mode, and the height of the conveying chain does not need to be adjusted when changing the bottle shape. The parts and components in contact with the liquid are all made of high-quality stainless steel or food-grade engineering plastics. Most of the electrical systems are imported components, which meet the national food hygiene standards.



Water bottling machine details:



Capacity: 1,000-24,000 bottles per hour

Bottle Type: PET/PP/PE/HDPE Plastic Bottle

Bottle Shape: Round/Square/Rectangular/Irregular

Model: CGF 3 in 1 Monoblock

Place of Origin: Zhangjiagang city, China near Shanghai

Application: Pure water/Mineral water/Drinking water/Non-carbonated water/Beverage/Codiment etc

Bottle Type: 200ml to 2L

Cap Type: Screw cap, Pressing Cap, Sport cap

Full line including: Bottle Sorter, Rinser-Filler-Capper 3 in 1 machine, Lamp Checker, Labeling Machine, Film Shrink Machine/Carton Packing Machine



Water bottling machine parameters:



Item                 CGF8-8-3    CGF12-12-5  CGF18-18-6  CGF24-24-8  CGF32-32-10

Capacity

bottles per hour

2000-3000 3000-4000 5000-6000 8000-10000 10000-12000

Suitable bottle

diameter

50-90mm

200-2000ml

Rinsing pressure

kg/cm2

2-3

Machine weight

KG

1500 2500 3500 4000 5000

Machine size

L*W*H (mm)

1900*1600

*2400

2400*1600

*2400

2400*1830

*2400

3100*2200

*2400

3600*2500

*2400





























Water bottling machine component :



No Details
1 The filling institution is mainly composed of the filling bucket, filling valve, guide rail, lifting device, and lifting device for sticking bottles.
2 The three-in-one main machine consists of bottle washing machine, filling machine, capping machine, frame, window sealing, main motor and transmission system, bottle transmission, capping machine and electrical control system.
3 The turnover mechanism of the bottle washing machine is mainly composed of water distribution plate, bottle washing clip, upper turntable, guide rail, protective cover, water spraying device and water receiving plate.
4 The sealing mechanism is composed of three parts, namely, lid-laying device, lid-falling guide and lid-turning machine.
5 Auxiliary (or optional) equipment includes flushing water reflux tank, bottle inlet air duct and bottle outlet chain. In addition, manual bottle feeding platform (or bottle sorting machine), multi-row differential chain manual bottle arranging table, and automatic capping machine can be configured according to customer requirements.


High Efficiency Automatic Bottle Filling And Capping Machine Water Bottling Line 0High Efficiency Automatic Bottle Filling And Capping Machine Water Bottling Line 1
