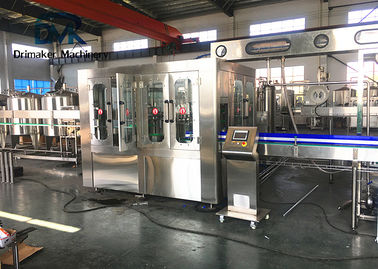

3 In1 Soda Filling And Capping Machine Stainless Steel Sus304 Material

I'm Online Chat Now

3 In1 Soda Filling And Capping Machine Stainless Steel Sus304 Material

3 In1 Soda Filling And Capping Machine Stainless Steel Sus304 Material
3 In1 Soda Filling And Capping Machine Stainless Steel Sus304 Material 3 In1 Soda Filling And Capping Machine Stainless Steel Sus304 Material 3 In1 Soda Filling And Capping Machine Stainless Steel Sus304 Material

Large Image :  3 In1 Soda Filling And Capping Machine Stainless Steel Sus304 Material

Product Details:

Place of Origin: Zhangjiagang city
Brand Name: DMK
Model Number: DCGF8-8-3

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export packing
Delivery Time: 35 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets per year
Detailed Product Description
Name: Soda Bottling Machine Capacity: 1500-2000 Bottles Per Hour(500ml Bottle)
Suitable Beverage: Carbonated Soft Drink, Gas Drink Power: 3.1KW
Weight: 3000KG Size: (L*W*H)2400*1600*2400mm
Material: Stainless Steel SUS304 Rinsing Head: 8 Heads
Driven Type: Electric Driven Warranty: 12 Months
High Light:

carbonated soft drink filling machine

,

soda filling and capping machine

,

Sus304 Soda Bottling Machine

3 In1 Bottle Filling Machine / Soda Water Line Isobaric Drinks Washing Filling Capping


Soda bottling machine description:



No Detail
1 PET bottle soda bottling machine is suitable for cocktails, carbonated water, soda water with gas and other kinds of volume and shape of plastic bottle filling.
2 Three processes of bottle washing, filling and capping can be completed in one unit of DCGF filling equipment.
3 The bottle has little wear, accurate and stable transmission and convenient bottle type replacement.
4 The bottom plate of the rotary bottle adopts spiral descending mode, and the height of the conveying chain does not need to be adjusted when changing the bottle type.
5 The specially designed bottle clamp is strong and durable, it does not touch the screw part of the bottle mouth to avoid the secondary pollution of the bottle mouth.
6 The parts in contact with the liquid are made of high quality stainless steel or food-grade engineering plastics, which conform to the national food hygiene standards.


Scope of soda bottling machine application:



Carbonated soda beverage filling production line is suitable for the following types of filling:



Fruit juice carbonated drinks. Refers to the original juice content not less than 2.5% of carbonated drinks; Fruity carbonated drinks. Refers to the fruity edible essence as the main flavoring agent, the original juice content is less than 2.5% of carbonated drinks; Cola carbonated drinks. Refers to a carbonated beverage containing caramel color, coke essence or a spicy or fruity flavor similar to that of cola nuts and fruits; Low calorie carbonated beverages. Refers to various types of carbonated drinks and soda water with sweetener in place of sugar in whole or in part, with calories less than 75kJ/100mL; Other types of carbonated drinks. Refers to contains the plant extracts or the non-fruity edible essence as the composition and supplement the human body after the exercise lost electrolytes, energy carbonated drinks, such as sports soda. Loss of electrolytes, energy, etc. after exercise in carbonated drinks, such as sports soda, etc.


Soda bottling machine parameters:



Item    DCGF8-8-3   DCGF12-12-5  DCGF18-18-6  DCGF24-24-8

Capacity
bottles per hour

1500-2000 2000-3000 4000-5000 7000-8000

Suitable bottle
diameter

50-90mm
200-2000ml

Filling temperature

0℃~4℃

Machine weight
KG

2000 3000 3500 4500

Machine size
L*W*H (mm)

2000*1600
*2400

2400*1600
*2400

2400*1850
*2400

3100*2200
*2400



Soda bottling machine details description:



Bottle rinsing:

After the bottle enters the host machine, it enters the bottle punching machine through the transmission star wheel. The bottle clip clips the bottle mouth and turns it 180° upward along the bottle rail, making the bottle mouth downward. In the specific area of the bottle rinsing machine (determined by the water distributor -- the bottle rinsing water is pumped into the water distributor by the bottle rinsing pump, and then distributed to the bottle rinsing clamp by the water distributor through 8 pipelines), sterile water is sprayed from the bottle rinsing nozzle to flush the inner wall of the bottle.

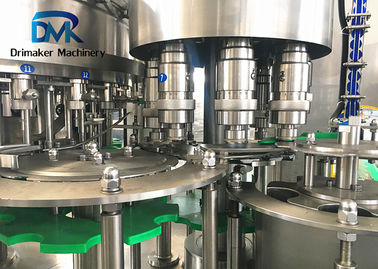

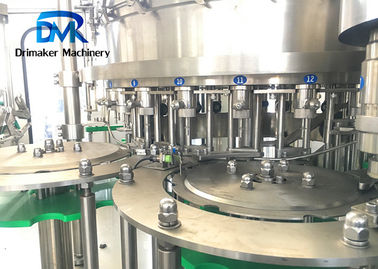

Bottle filling:

Using high precision, high speed quantitative filling valve, liquid level accurate without liquid loss, to ensure good filling quality. Besides, filling system adopts the bottle-feeding method with bottom support to avoid secondary contamination of the bottle mouth. Using the principle of equal pressure filling, filling speed, liquid level control stability.



Capping:

Advanced cap-tightener structure: magnetic force is used in cap-tightener. Torque is adjusted in line with various caps, which is suitable for all kinds of plastic caps. Tooth profile device is used in choosing caps. Checking device is set at the bottom slide. We guarantee no inverse caps, and no bottle no caps.



3 In1 Soda Filling And Capping Machine Stainless Steel Sus304 Material 0



Thanks!

For more information please contact us!
