Sus 304 Juice Bottle Filling Machine 10000 Bph Juice Packaging Machine

I'm Online Chat Now

Sus 304 Juice Bottle Filling Machine 10000 Bph Juice Packaging Machine

small.img.alt small.img.alt

Large Image :  Sus 304 Juice Bottle Filling Machine 10000 Bph Juice Packaging Machine

Product Details:

Place of Origin: Zhangjiagang city
Brand Name: DMK
Model Number: RCGF32-32-10

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets per year
Detailed Product Description
Name: Juice Bottling Machine Capacity: 9000-11000 Bottles Per Hour(500ml Bottle)
Suitable Product: Beverage Juice/Energy Drink/Tea... Filling Temperature: 85-92℃
Size: (L*W*H)3600*2500*2400mm Weight: 5000KG
Filling Head: 32 Pcs Power: 5.6KW
High Light:

juice bottle filling machine


hot liquid filling machine


Sus 304 Juice Bottle Filling Machine

10000 BPH Sus 304 Metallic Color Juice Bottling Machine Touch Screen


Juice bottling machine description:

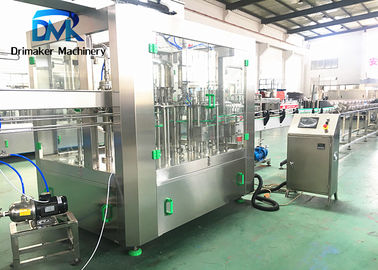

This RCGF series juice bottling machine combines rinser, filler and capper 3 machines together in one. The design is based on the advanced international technology and many years of our own experience. We also learn a lot from customers’feedback, the machine adopts suspended bottle catcher technology which allows it to fill with different type of bottles by simply and easily changeing the bottle star-wheel. It can be also used to fill the purified and mineral water in one machine.


Juice bottling machine parameters:


Item                 RCGF12-12-6  RCGF18-18-6  RCGF24-24-8  RCGF32-32-10 RCGF 40-40-13


bottles per hour

2000-3000 4000-5000 7000-8000 9000-11000 12000-14000

Suitable bottle




Filling temperature


Machine weight


2500 3500 4500 5000 7000

Machine size

L*W*H (mm)

























Juice Bottling machine features:


Generally, carbonic acid containing gas beverage, filling is more positioning or quantitative, the material from the bottle mouth always has a specified distance. And fruit juice, tea beverage, especially the production of original drink, the material filling, that is, until the bottle is full, so that the residual air in the bottle is minimal, to ensure that the drink itself is not easy to oxidize, so that the drink can maintain its quality for a long time.


Because hot filling should have the function of high temperature filling and full filling, it requires to be equipped with automatic circulation system, which is convenient for low-temperature material circulation heating and CIP circulation cleaning.


Juice bottling machine details:


No Details
1 This juice bottling machine machine is used for filling fruit tea, juice and other high-temperature beverage in PET heat-resistant bottle.
2 The control system of machine employs PLC+ frequency convertor+ and touch screen control technology.
3 The machine can be connected with UHT, CIP control center and bottle-invert sterilizer.
4 This machine has reasonable and firm structure, machine will be very stable during running.
5 The suspension bottle neck clamp allows the machine change the bottle with different volume easily.
6 Machine adopts save protection device, which can make sure the safety for operator and machine itself, extending the service lify.
7 Magnetic torsion type screw capper ensures the tightness of the cap and avoids bottle damage.


Sus 304 Juice Bottle Filling Machine 10000 Bph Juice Packaging Machine 0
