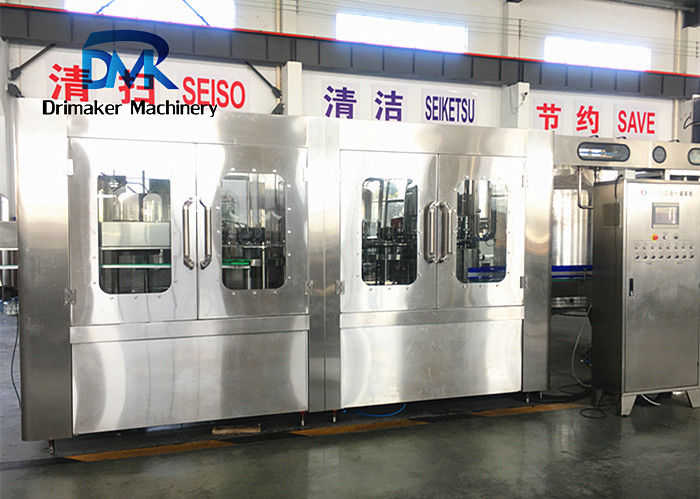

10000BPH Mineral Water Bottling Machine Liquid Filler UV Sterilizer

10000BPH Mineral Water Bottling Machine Liquid Filler UV Sterilizer

  • 10000BPH Mineral Water Bottling Machine Liquid Filler UV Sterilizer
  • 10000BPH Mineral Water Bottling Machine Liquid Filler UV Sterilizer
  • 10000BPH Mineral Water Bottling Machine Liquid Filler UV Sterilizer
10000BPH Mineral Water Bottling Machine Liquid Filler UV Sterilizer
Product Details:
Place of Origin: Zhangjiagang city
Brand Name: DMK
Model Number: CGF24-24-8
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export packing
Delivery Time: 40 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets per year
Contact Now
Detailed Product Description
Name: Water Bottling Machine Capacity: 8000-10000 Bottles Per Hour(500ml Bottle)
Bottle Type: PET Bottle Bottle Shape: Round/Square/Irregular
Driven Type: Motor Driven Size: (L*W*H)3100*2200*2400mm
Function: Rinsing Filling Capping 3 In 1 Suitable Bottle: Round/Square/Irregular Bottle
High Light:

10000BPH Water Bottling Machine

,

Motor Driven Water Bottling Machine

,

UV Sterilizer Water Bottling Machine

10000BPH Mineral Water Plant/Water Bottling Machine / Liquid Filler



Water bottling machine description:



This machine is the introduction of foreign advanced technology design andmanufacture of rinsing filling capping 3 in 1 monoblock machine. It can finish automatic bottle rinsing with water, automatic bottle filling with water, and automatic cap screwing.



Bottle water production line:



We all know that success in water beverage production requires focus on maximum output and efficiency, with commitment to hygiene, food safety and cost optimization.


With over 10 years of experience in designing and implementing customized complete PET and glass line solutions for water, sunswell can help you reach your production targets from water treatment,blowing, filling, labeling, packing, and palletizing up to and including inspection and complete sanitizing.



Turnkey/complete water production line includes :

No Equipment Function
1 Bottle blowing system Making PET plastic bottles ( Semi automatic / Fully automatic )
2 Water treatment system Purifing water (Sand filter,carbon filter,RO/UF ,Ozone sterilizer,UV sterilizer and etc.)
3 Air conveyor For empty bottle loading
4 Rinser-filler-capper 3 in 1 monoblock To finish bottle rinsing, filling and capping.
5 Cap loader To deliver and load caps into capping system
6 Code printer Ink-jet printer/ laser-jet printer
7 Labeling machine PVC sleelve labeling machine/OPP hot melt glue labeling machine/Self-adheisive labeling machine
8 End packaging PE shrink wrapping machine / Carton packing machine





Water bottling machine parameters:



Item                 CGF8-8-3    CGF12-12-5  CGF18-18-6  CGF24-24-8  CGF32-32-10 CGF40-40-12 CGF50-50-15

Capacity

bottles per hour

2000-3000 3000-4000 5000-6000 8000-10000 10000-12000 14000-16000 20000-24000

Suitable bottle

diameter

50-90mm

200-2000ml

Rinsing pressure

kg/cm2

2-3

Machine weight

KG

1500 2500 3500 4000 5000 7000 9000

Machine size

L*W*H (mm)

1900*1600

*2400

2400*1600

*2400

2400*1830

*2400

3100*2200

*2400

3600*2500

*2400

4000*2800

*2400

5400*4200

*2400



































Water bottling machine details description:



No Item Detail
1 Bottle rinsing

Bottle-washing machine with the spring structure: when empty bottles are automatically rotated in a 180°semi-circle on the

track, it washes the bottle insidein a complete and efficient way.

Rinsing water is pumped into every filling nozzle, make sure the water can wash the bottle inside well.

2 Bottle filling

This system is constituted with filling tank, main shaft part, bottle holding ascending and falling part, filling valves.

No bottle no filling, save water.

Micro negative pressure filling, more efficient filling way.

All water contact parts are made of high quality stainless steel.

Liquid level stabilizing device, help control water level.

3 Capping Advanced cap-tightener structure: magnetic force is used in cap-tightener. Torque is adjusted in line with various caps, which is suitable for all kinds of plastic caps. Tooth profile device is used in choosing caps. Checking device is set at the bottom slide. We guarantee no inverse caps, and no bottle no caps.

10000BPH Mineral Water Bottling Machine Liquid Filler UV Sterilizer 010000BPH Mineral Water Bottling Machine Liquid Filler UV Sterilizer 1



Thanks!

For more information please contact us!
