| Place of Origin: | Zhangjiagang city |
| Brand Name: | DMK |
| Model Number: | DCGF24-24-8 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export packing |
| Delivery Time: | 40 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 sets per year |
| Name: | Soda Bottling Machine | Capacity: | 7000-8000 Bottles Per Hour(500ml Bottle) |
|---|---|---|---|
| Filling Type: | Isobaric Filling | Application: | Soda Drink, Carbonated Drink, Soft Drinks |
| Installation: | Oversea Service | Machine Color: | Silvery White |
| Packaging: | Oversea Packing | Power: | 3800W |
| High Light: | carbonated soft drink filling machine,soda filling and capping machine |
||

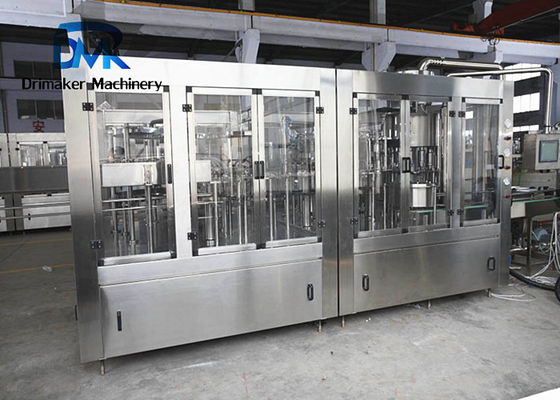

High Running Stability Carbonated Drink Soda Bottling Machine For Small Bottle
Soda bottling machine description:
This automatic carbonated beverage soda bottling machine adopts the bottleneck catching transmission technology to realize the automatic bottling, filling, capping and other processes, with a high degree of automation. The DCGF machine is equipped with a number of protective alarm devices, such as jam bottle, missing bottle, missing cover and overload, to ensure the quality of the product. It is suitable for Coca-Cola, Sprite and other carbonated beverages. Carbonated beverage filling machine is equipped with accurate CO2 pressure control and stable liquid level control system. The carbonated beverage filling equipment is made of SUS304 material of high quality. The main and closed parts are precisely processed with CNC machine tools. The whole machine adopts advanced photoelectric detection to detect the operation status of each part.
Soda bottling machine features:
| No | Detailss |
| 1 | Adopting the technology of direct connection between the air feeding conveyor and the bottle star wheel. Bottle neck catching technology is adopped all the time. |
| 2 | The high-speed production adopts the bottle clip transmission technology, which makes bottle shape change more freely, and the working table inside the machine is more concise. |
| 3 | The three processes of bottle washing, filling and sealing are completed in this 3 in 1 carbonated beverage filling unit. The bottle has little wear, accurate and stable transmission, and convenient bottle replacement. |
| 4 |
The specially designed all stainless steel bottle calmp is strong and durable, it does not touch the screw part of the bottle mouth to avoid the secondary pollution of the bottle mouth during rinsing part. |
| 5 | Pressure type hydraulic cylinder, the high-speed line adopts ring hydraulic cylinder. |
| 6 | High speed and large flow constant pressure filling valve, fast filling speed, accurate liquid level without liquid loss. |
| 7 | Parts in contact with liquid are made of high-quality stainless steel or food-grade engineering plastics, which are in line with national food hygiene standards. |
| 8 | The bottom plate of the rotary bottle adopts spiral descending mode, and the height of the conveying chain does not need to be adjusted when changing the bottle type. |
Soda bottling machine parameters:
| Item | DCGF12-12-5 | DCGF18-18-6 | DCGF24-24-8 | DCGF32-32-10 |
|
Capacity |
2000-3000 | 4000-5000 | 7000-8000 | 9000-11000 |
|
Suitable bottle |
50-90mm |
|||
|
Filling temperature |
0℃～4℃ |
|||
|
Machine weight |
3000 | 3500 | 4500 | 5500 |
|
Machine size |
2400*1600 |
2400*1850 |
3100*2200 |
3600*2500 *2400 |
Characteristic and configuration:
| No | Item | Specification |
| Characteristics | ||
| 1 | Model | DCGF 24-24-8 |
| 2 | Capacity | 7000-8000BPH(calculated as 500ml bottle) |
| 5 | Filling precision | ≤±5mm |
| Configuration (Also adjustable accoridng to customer demands) | ||
| 1 | PLC | Mitsubishi from Japan |
| 2 | Frequency inverter | Mitsubishi from Japan |
| 3 | Touch screen | Weinview from Taiwan |
| 4 | Photoelectric | Omron from Japan |
| 5 | Air switch | Omron from Japan |
| 6 | Material contacting liquid | High quality stainless steel |
Thanks!
For more information please contact us!
Contact Person: Mr. Jerry Wu
Tel: 86-18606249106
