5l Large Liquid Bottle Filling Equipment Alcohol Filling Machine Linear Type

5l Large Liquid Bottle Filling Equipment Alcohol Filling Machine Linear Type

  • 5l Large Liquid Bottle Filling Equipment  Alcohol Filling Machine Linear Type
  • 5l Large Liquid Bottle Filling Equipment  Alcohol Filling Machine Linear Type
  • 5l Large Liquid Bottle Filling Equipment  Alcohol Filling Machine Linear Type
  • 5l Large Liquid Bottle Filling Equipment  Alcohol Filling Machine Linear Type
5l Large Liquid Bottle Filling Equipment  Alcohol Filling Machine Linear Type
Product Details:
Place of Origin: Zhangjiagang city
Brand Name: DMK
Model Number: CGF4-4-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export packing
Delivery Time: 30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets per year
Contact Now
Detailed Product Description
Name: Disinfectant Water Bottling Machine Capacity: 600-700 Bottles Per Hour(5L Bottle)
Structure: High Quality SUS304 Machine Type: Linear Type
Capping Type: Plastic Screw Cap Voltage: 3 Phase 380V/50HZ
Motor: Explosion-proof Motor Control: PLC Control
High Light:

liquid packaging equipment

,

high viscosity filling machine

5L Large Bottle Liquid Bottling Machine Alcohol Filling Machine



Liquid bottling machine description:



In normaly life, alcohol water is necessary for people's daily life, during special time, alcohol is very important for people to clean everything we use, like table, bed, chair. In office, in hotel, daily cleaning and sterilizing is the key to earn customer's trust. So our company design and manufacture this type machine, suitable for big bottle alcohol water production use. And it can be used for bottle range from 3L to 10L, no need too many changing parts. Becuae it is linear type machine. Empty bottle rinser, alcohol filler, bottle filler, 3 type machine functions are combined in one machine, which is suitable for production use.



Liquid bottling machine working process:



1. Automatic explosion-proof alcohol filling machine adopts plunger metering pump for filling with high accuracy; The pump structure adopts quick-connection disassembly mechanism, which is easy to clean and disinfect.

2. PLC control system, color touch screen display, automatic counting function.

3. The filling needle is equipped with an anti-dripping device.

4. When filling, the filling head penetrates into the bottom of the bottle and rises slowly to effectively prevent bubbles.

5. The main electrical components of this automatic explosion-proof alcohol filling machine adopt foreign factories.

6. The machine shell is made of 304 stainless steel, which is in full compliance with GMP standards.



Liquid bottling machine parameters:



No Item Detail
1 Model           LCGF 4-4-1
2       Rinsing head           4 pcs
3 Filling head 4 pcs
4 Capping head 1 pcs
5 Capacity About 600-700 bottles per hour(5L bottle)
6 Bottle diameter 120-190mm(customized)
7 Cap diameter Normal screw cap Ф40-Ф55



Liquid bottling machine details:



Bottle rinsing:

1. Bottle rinsing part adopts compact structure, which ensures running situation.

2. Bottles enter into rinsing part by stare wheel, then clamp will catch bottle automatically.

3. The power of the bottle rinsing part is transmitted by the internal drive system of the frame through the gears.

4. Rinsing nozzle will inject purified to clean bottle inside.

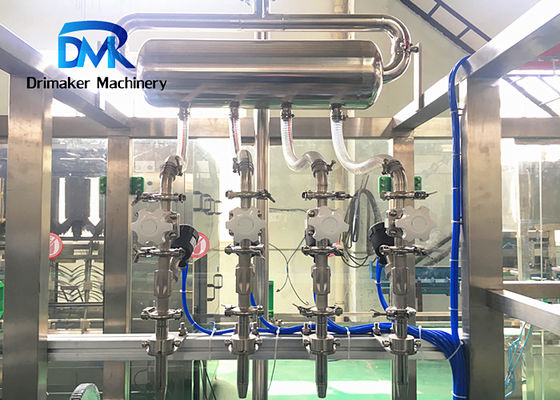

Bottle filling:

1. Using high speed filling valve, the liquid level is accurate without liquid loss, to ensure the filling process requirements.

2. With automatic structure, machine can reach the purpose of no bottle no filling, which can save a lot of water.

3. The float mode of liquid cylinder level is controlled by float.

4. Parts in contact with liquid material are made of high quality stainless steel, no dead Angle, easy to clean.



Capping:

1. It adopts efficient cap loading system and has perfect automatic control and protection device.

2. In order to suitable for various types caps, we will manufacture special cap mould according to customer cap sample.

3. Tooth profile device is used in choosing caps.

4. There is cap decting device at the bottom of cap slide, which make sure there is no inverse caps.



5l Large Liquid Bottle Filling Equipment  Alcohol Filling Machine Linear Type 05l Large Liquid Bottle Filling Equipment  Alcohol Filling Machine Linear Type 1



Thanks!

For more information please contact us!
